Printing Cylinder: How Rotogravure Printing Works in Flexible Packaging

A printed package does more than protect a product. It communicates a brand's identity, displays essential information, and influences how customers perceive what is inside. Behind many high-quality printed packaging materials is a precision-engineered component: the printing cylinder.

In flexible packaging, rotogravure printing cylinders play an important role in transferring ink onto materials such as plastic films, paper, and foil. Their engraving quality, surface condition, and consistency can influence the appearance of the final printed design.

Understanding how a printing cylinder works helps packaging converters, manufacturers, and purchasing teams make more informed decisions about print quality, production efficiency, and long-term operating costs.

What Is a Printing Cylinder?

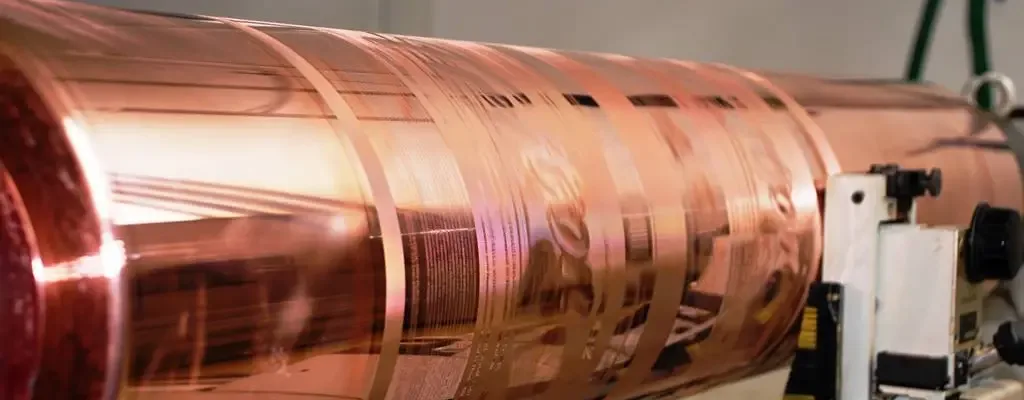

A printing cylinder is a cylindrical component used in a printing press to transfer an image, pattern, or text onto a substrate. Its design depends on the printing process in which it is used.

In rotogravure printing, the cylinder has numerous tiny engraved cells on its surface. These cells hold a controlled amount of ink and transfer it to the material as the cylinder rotates through the printing process.

The cylinder's engraved image corresponds to the artwork being printed. Cell geometry, engraving depth, ink properties, and operating conditions all contribute to the final result.

Printing cylinders are used in applications such as flexible food packaging, labels, decorative laminates, wallpaper, and other high-volume printed materials.

How Does a Rotogravure Printing Cylinder Work?

Rotogravure is an intaglio printing process, meaning the image is held in recessed areas rather than raised surfaces.

The process generally follows these steps:

1. Cylinder preparation: The cylinder surface is prepared for engraving according to the requirements of the printing job.
2. Image engraving: The design is transferred to the cylinder by creating a pattern of microscopic cells. Depending on the production system, engraving may be electromechanical or laser-based.
3. Ink application: The rotating cylinder picks up ink from an ink supply.
4. Ink removal: A doctor blade removes excess ink from the cylinder surface while ink remains in the engraved cells.
5. Image transfer: The substrate passes through the printing nip, where pressure helps transfer ink from the cells onto the material.
6. Drying and repeat printing: The ink is dried as required, and additional printing units can apply other colours or design elements.

For multicolour packaging, separate cylinders are commonly used for different colours. Accurate registration between printing units is essential for keeping text, graphics, and colour boundaries aligned.

Why Does Printing Cylinder Quality Matter?

The quality of a printing cylinder affects more than the initial appearance of a printed package. It can also influence production stability and the amount of waste generated during a run.

1. Consistent Ink Transfer

Engraved cells help determine how much ink reaches the substrate. Variations in cell geometry or inconsistent operating conditions can contribute to changes in colour density and print appearance.

2. Fine Details and Image Clarity

Packaging artwork often includes small text, gradients, fine lines, and detailed graphics. Suitable engraving parameters help reproduce these elements accurately, subject to the capabilities of the press and substrate.

3. Colour Consistency

When several cylinders are used in a multicolour job, each must work as part of a coordinated system. Correct engraving, ink formulation, and press settings help maintain consistent colour reproduction throughout production.

4. Production Efficiency

A properly specified and maintained cylinder can help reduce avoidable interruptions, defects, and setup adjustments. The actual result depends on the complete printing process, including machine condition, inks, and material handling.

5. Service Life and Reuse

Depending on its construction and condition, a cylinder may be suitable for refurbishment, re-chroming, or re-engraving. These options can extend useful life, although suitability depends on the cylinder's specifications and the condition of its surface.

What Factors Should Buyers Consider When Selecting a Printing Cylinder?

Choosing a printing cylinder requires more than comparing the initial purchase price. Buyers should consider the intended artwork, substrate, press specifications, production volume, and maintenance requirements.

Engraving specifications: Cell geometry, screen ruling, engraving depth, and the required tonal range should match the artwork and printing conditions.

Cylinder dimensions: Diameter, face length, gear specifications, and other mechanical requirements must be compatible with the intended press.

Base material and surface condition: Construction, surface preparation, coating quality, and finish should meet the technical requirements of the application.

Registration and repeat accuracy: Dimensional accuracy and repeat consistency are important when multiple colours or repeated designs must align.

Quality control: Ask about inspection procedures, engraving verification, dimensional checks, and any documented quality-control process relevant to the order.

Technical support: Clear communication about artwork preparation, cylinder specifications, storage, handling, and maintenance can help prevent avoidable production problems.

The best specification is the one that matches the actual production requirements rather than simply choosing the most expensive or highest-resolution option.

Common Printing Cylinder Problems and Their Possible Causes

When print quality deteriorates, the cylinder is one of several possible areas to investigate. Not every printing defect originates in the cylinder itself.

• Uneven colour density: Possible causes include inconsistent ink viscosity, cell condition, doctor-blade settings, or press conditions.
• Missing or weak print details: Potential causes include blocked cells, engraving limitations, contamination, or unsuitable ink transfer conditions.
• Unwanted lines or streaks: These may result from doctor-blade damage, surface contamination, cylinder defects, or other machine-related issues.
• Poor colour registration: The cause may involve cylinder mounting, tension control, gear condition, or press setup.
• Repeated defects in the same position: Inspecting the cylinder surface and checking the printing system can help identify whether the defect is cylinder-related.

A systematic inspection is preferable to immediately replacing the cylinder. Checking the ink, blade, substrate, press settings, and cylinder together can help identify the underlying cause.

How Can Printing Cylinder Maintenance Improve Performance?

Appropriate handling and maintenance help protect cylinder surfaces and preserve print quality.

Useful practices include:

• Follow the cylinder manufacturer's approved cleaning procedure.
• Avoid tools and chemicals that could damage the surface or protective coating.
• Inspect cylinders for corrosion, scratches, contamination, and other visible damage.
• Store cylinders securely in a suitable environment and protect them from impact.
• Maintain records of cylinder identification, artwork, specifications, use, and refurbishment where applicable.
• Investigate recurring defects before the next production run.

Maintenance procedures should be tailored to the cylinder construction and the printing equipment. Improvised cleaning methods can cause damage and should be avoided.

What Is the Difference Between a Printing Cylinder and a Rotogravure Cylinder?

A printing cylinder is a broad term covering cylindrical components used in different printing technologies. A rotogravure cylinder is a specific type designed to transfer ink through engraved cells.

The distinction matters because different printing processes use different image-transfer mechanisms. Flexographic printing, for example, typically uses a flexible relief plate, often supplied on a plate cylinder, and may use an anilox roller to meter ink. These components are not interchangeable with an engraved rotogravure printing cylinder.

When sourcing a cylinder, buyers should identify the exact printing process and equipment before requesting a quotation.

Frequently Asked Questions

What Is a Printing Cylinder Used For?

A printing cylinder transfers images, text, patterns, or other design elements onto a substrate. Its specific function depends on the printing technology, with rotogravure cylinders commonly used for high-volume flexible packaging and decorative printing.

What Is a Rotogravure Printing Cylinder Made For?

It is designed to carry an engraved image made up of small ink-holding cells. During printing, these cells transfer ink onto a moving substrate to reproduce the intended design.

How Does Cylinder Engraving Affect Print Quality?

Engraving parameters influence ink capacity, tonal reproduction, fine detail, and image consistency. The final result also depends on ink formulation, substrate properties, doctor-blade settings, and press conditions.

Can a Printing Cylinder Be Reused?

Some cylinders can be refurbished, re-chromed, or re-engraved if their construction and condition allow it. An inspection is needed to determine whether reuse is technically and economically appropriate.

How Should a Business Choose a Printing Cylinder Manufacturer?

Compare technical compatibility, engraving capabilities, dimensional accuracy, quality-control practices, communication, after-sales support, and total lifecycle cost. Request specifications that match the intended printing process and production requirements.

Final Thoughts

A printing cylinder is a precision component that connects digital or physical artwork with the finished printed material. Its specifications, engraving quality, condition, and compatibility with the press all matter when a business wants dependable results in flexible packaging.

For buyers, the most effective approach is to define the application clearly, evaluate technical requirements, and work with a supplier that understands the relationship between cylinder engineering and print performance.

For a closer look at rotogravure cylinder solutions for flexible packaging, explore the information provided by Regal Woven's rotogravure cylinder team. Use the technical details relevant to your application when discussing specifications and production requirements with a potential supplier.
