Heat Tunnel Packaging: How Shrink Systems Improve Product Protection

What Is a Heat Tunnel in Shrink Packaging?

A heat tunnel is a packaging machine that uses controlled heat to shrink plastic film around a product after the film has been sealed. As the wrapped item passes through the heated chamber, the film contracts to fit its shape more closely. Once cooled, the packaging can provide a neater appearance and help keep grouped items together.

These systems are commonly used in manufacturing, e-commerce fulfillment, printing, and other packaging environments where repeatable results matter. Performance depends on several factors, including the film type, product dimensions, tunnel temperature, and conveyor speed. Choosing the right combination helps achieve consistent shrinkage without exposing products or packaging materials to excessive heat.

Maripak USA's Diamond Series illustrates how industrial tunnels use controlled temperatures, adjustable airflow, and conveyor settings to support repeatable shrink-wrapping operations.

How Does the Shrink-Tunnel Process Work?

The process generally begins by placing the product inside compatible shrink film and sealing the film around it. The packaged item then moves through the tunnel on a conveyor. Heat causes the film to contract, while the conveyor determines how long the package remains inside the heated chamber. After leaving the tunnel, the package cools and the film settles around the product.

Successful results require the temperature and conveyor speed to match the packaging material and product. Insufficient heat or too little exposure time may leave loose or uneven film, while excessive heat can cause distortion, holes, or damage to heat-sensitive products. Operators should test settings with representative packages before starting routine production.

Important Features to Consider When Selecting a Heat Tunnel

The right equipment should match the product range, packaging material, and expected production volume. Several technical features deserve attention before a system is selected.

• Temperature control: Adjustable temperature settings help operators match the heating process to the shrink film and product requirements.

• Air circulation: Consistent airflow helps distribute heat throughout the chamber, reducing uneven shrinkage and improving package appearance.

• Conveyor speed: Adjustable conveyor speed controls how long each package remains inside the heated area.

• Chamber dimensions: The tunnel opening and conveyor width must accommodate the largest packages without restricting movement.

• Energy efficiency: Insulated chambers can help retain heat and reduce energy losses during operation.

• Safety features: Protective guards, temperature controls, and automatic responses to conveyor or fan interruptions can help reduce operational risks.

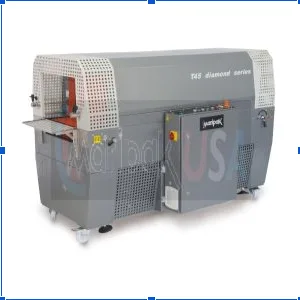

Maripak's Diamond Series includes features such as a bottom-mounted heat chamber, adjustable airflow, conveyor speed control, and a double-layered insulated chamber. Available specifications differ by model, so equipment requirements should be checked against the intended application.

How a Semi-Automatic L-Sealer Works With a Heat Tunnel

In a semi-automatic setup, an operator typically positions the product, arranges the film, and activates the sealing cycle. The tunnel conveyor handles the subsequent heating stage. This arrangement can suit businesses that need more consistent packaging than fully manual methods provide but do not require complete automation.

The two machines must be compatible in terms of package dimensions, sealing capacity, film type, and production speed. If the sealing stage produces packages faster than the tunnel can process them, products may accumulate between stations. If the tunnel runs too slowly or uses unsuitable settings, output may fall and package quality may suffer. Testing both machines together is therefore important when evaluating a packaging line.

Conclusion

Choosing suitable shrink packaging equipment involves more than comparing machine sizes or production speeds. Businesses should evaluate temperature accuracy, airflow, conveyor control, energy use, safety features, and compatibility with their existing packaging process. Correctly matched settings and routine maintenance also help maintain consistent results and minimize avoidable packaging defects.

When assessing a complete packaging line, consider how the sealing stage connects with the semi-automatic l sealer machine and the tunnel's processing capacity. Matching both stages to the products, film specifications, and daily output requirements can help create a more reliable workflow. Ultimately, selecting equipment based on actual operating needs supports consistent package presentation, efficient handling, and dependable production performance.
