Heat Seal Tester: Ensuring Packaging Integrity Through Accurate Seal Testing

In the packaging industry, a seal is only as good as its weakest point. Whether it's a pouch of milk powder, a strip of pharmaceutical blister packs, or a sachet of instant noodles, the strength and consistency of the heat seal directly determine whether the product reaches the consumer intact, contamination-free, and shelf-stable. This is why a Heat Seal Tester is considered an indispensable instrument in packaging quality control labs.

What Is a Heat Seal Tester?

A Heat Seal Tester is a laboratory instrument used to evaluate the seal quality of flexible packaging materials and thermoplastic films by applying controlled heat and pressure for a defined duration. It replicates the heat-sealing process used in production — bringing two layers of film together under the combined action of temperature, dwell time, and pressure — so that manufacturers can validate whether their sealing parameters will produce a strong, leak-proof bond before it goes into full-scale production.

Materials commonly tested include polypropylene (PP), polyethylene (PE), polystyrene, PVC, and various laminated or composite films used to pack food, dairy products, detergents, and pharmaceuticals.

How the Testing Process Works

Heat sealing depends on three interlinked variables — temperature, pressure, and dwell time. If even one of these is out of range, the result is a defective seal: edge leaks, weak bonds, brittle overheated zones, or incompletely sealed areas. A Heat Seal Tester allows technicians to precisely control and vary these three factors to identify the optimum sealing window for a given material.

During a test, a sample film is placed between heated upper and lower jaws. The jaws close under pneumatic pressure, hold for a preset dwell time, and then release. The sealed sample can then be evaluated for seal strength and appearance, helping quality teams fine-tune the exact combination of settings needed for defect-free seals on the production line.

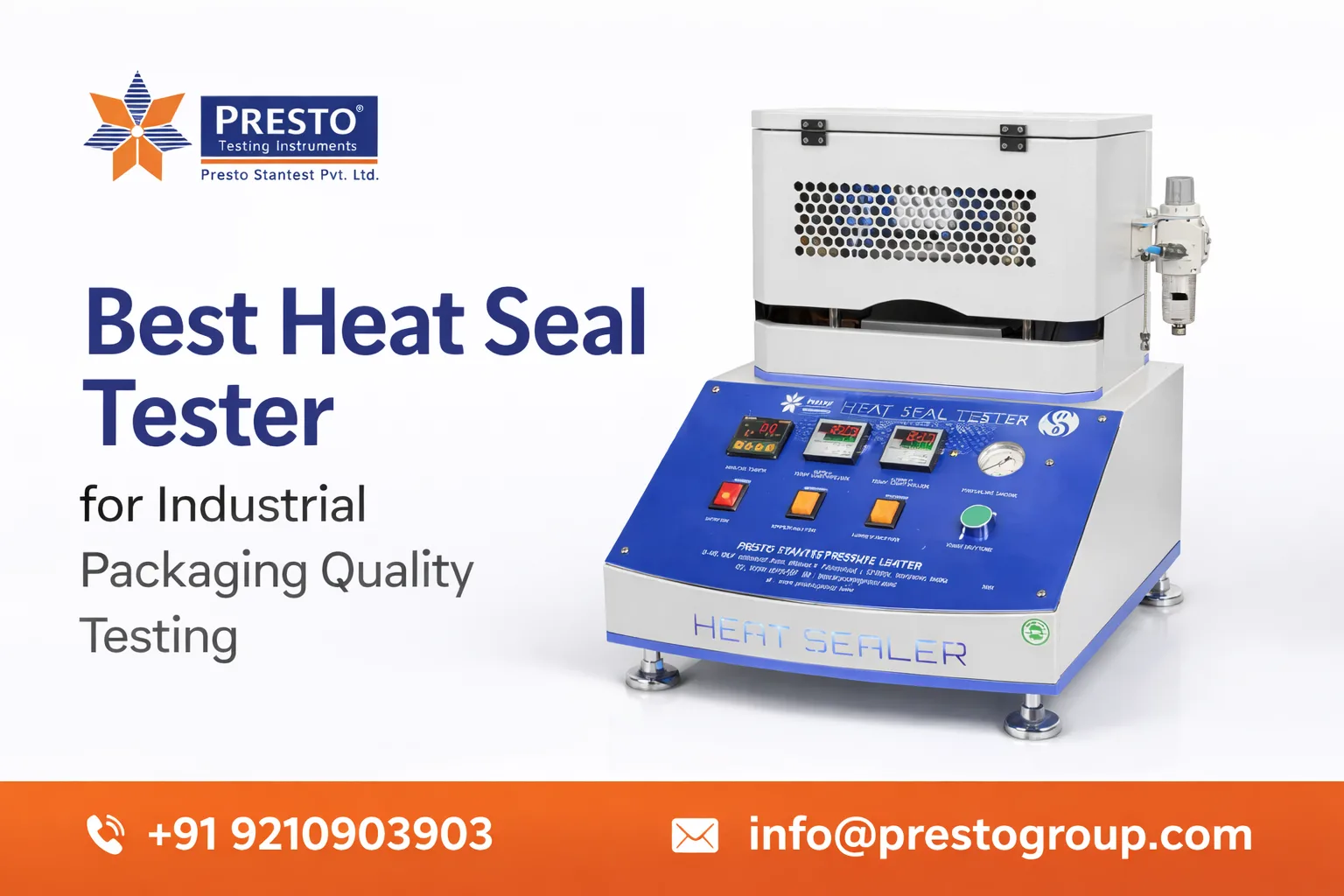

Presto's Laboratory Heat Sealer — Prima Model PLHS-22

Presto's Heat Sealer Prima (Model PLHS-22) is built specifically for this purpose, offering a microprocessor-controlled, pneumatically operated system designed for accuracy and repeatability.

Key specifications:

• Equipment range: Ambient to 250ºC
• Sealing temperature working range: Ambient to 230ºC
• Accuracy: ±1ºC | Resolution: 0.1ºC
• Sealing size: 150 x 15 mm
• Dwell heat seal time: 0.1–99.9 seconds
• Temperature controller: 4-digit PID
• Heat sensor: Pt-100 RTD
• Sealing pressure: 2–6 Bar
• Power: 220V, single phase, 50Hz

What sets it apart:

• Independent jaw control — the upper and lower jaws are heated separately with individual sensors and controllers, so each jaw can be set to a different temperature, or one can be switched off entirely while the other remains active.
• PID temperature controller for tight, repeatable control over sealing temperature.
• Digital preset timer for precise dwell-time control.
• EN 31 hardened and tempered sealing jaws, available in straight-line, plain, or diamond knurling patterns.
• Guide rod mechanism that keeps sealing pressure evenly and consistently applied across the sample.
• Bright LED display for real-time temperature and timer readouts, with single push-button operation once parameters are set.
• Built to ASTM F2029 standards, the benchmark test method for heat-sealable flexible barrier materials.

Why It Matters for Quality Control

Poor seal quality isn't just a cosmetic issue — it's a product safety and shelf-life issue. A weak seal can let in moisture, oxygen, or contaminants, shortening shelf life and, in the case of pharmaceuticals and food, posing a genuine safety risk. Regular heat seal testing as part of a routine QC protocol helps manufacturers:

• Catch sealing defects before they reach the production floor
• Standardize sealing parameters across different film types and thicknesses
• Meet regulatory and industry standards such as ASTM F2029
• Reduce returns, recalls, and packaging failures downstream

Industries That Rely on Heat Seal Testing

• Food and beverages — sachets, pouches, and film-wrapped products
• Pharmaceuticals — blister packs and medicine strips
• FMCG — detergent and personal care sachets
• Flexible packaging and multilayer film manufacturers

Conclusion

A dependable heat seal is the last line of defense between a product and the outside world. Presto Stantest Laboratory Heat Sealer – Prima Model PLHS-22 gives packaging manufacturers and testing labs a precise, repeatable way to validate sealing parameters and safeguard product integrity, backed by ASTM F2029 compliance and independently controlled heating jaws for maximum flexibility across materials.

To know more about features, pricing, and technical specifications of the Heat Seal Tester, call +91 9210903903 or email [email protected].
