Where Are Steel Base Plates Used? Common Applications Explained

Steel is widely used in construction and industrial applications because of its strength, durability, and versatility. One important component found in many structural systems is thesteel base plate. Although relatively simple in design, a base plate can play an important role in supporting columns, posts, equipment, and other structural components.

From building construction and industrial facilities to machinery installations and infrastructure projects, steel base plates are used in a variety of applications. Understanding where they are used and what they do can help engineers, contractors, and project managers select the appropriate plate for their requirements.

What Is a Steel Base Plate?

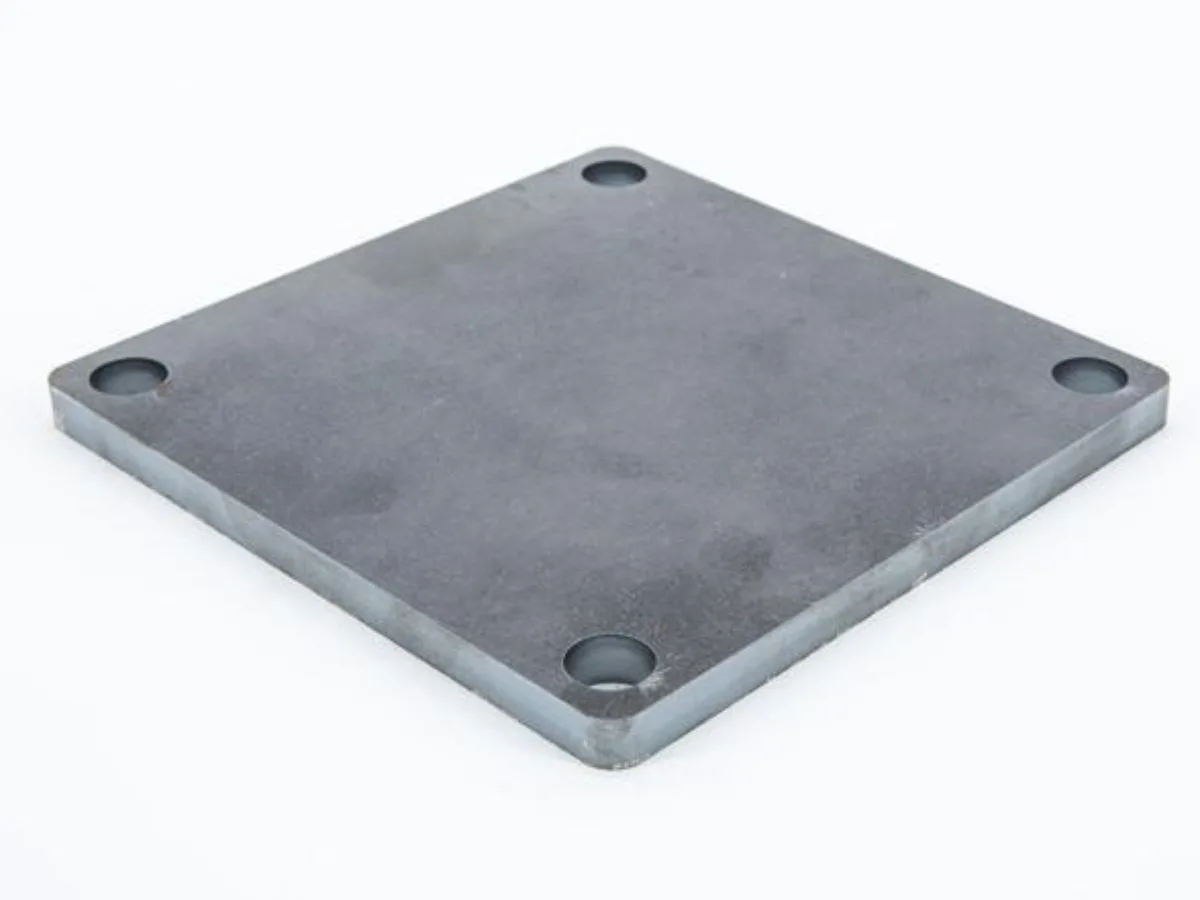

A steel base plate is a flat piece of steel positioned between a structural element and its supporting surface. It is commonly used beneath steel columns, posts, equipment, or other components that require a stable connection to a foundation or supporting structure.

The plate helps distribute concentrated loads over a larger area. Depending on the application, it may be connected using anchor bolts, welded connections, fasteners, or other installation methods.

Steel base plates are available in different sizes and thicknesses to accommodate various structural requirements. The correct specifications depend on factors such as load, connection design, support conditions, and project requirements.

1. Steel Building Columns

One of the most common applications for steel base plates is supporting structural columns. In steel-framed buildings, columns transfer loads from the upper structure toward the foundation.

A steel base plate is typically positioned beneath the column to provide a larger bearing surface. This helps transfer the column load to the concrete foundation or supporting structure.

The size and thickness of the base plate can vary depending on the column dimensions and structural loading requirements.

2. Industrial Structures

Industrial facilities often contain steel frames, platforms, supports, machinery, and other heavy-duty structures. These systems require reliable connections between structural components and their foundations.

Steel base plates can be used beneath support posts and columns in warehouses, factories, workshops, processing facilities, and other industrial environments.

Their robust construction makes them suitable for applications where structural stability and long-term performance are important considerations.

3. Steel Posts and Support Structures

Steel posts are commonly used for supporting roofs, canopies, barriers, signs, platforms, and other structures. A steel base plate can provide a practical connection between the bottom of a post and its supporting surface.

For example, a post may be welded to a base plate, which is then secured to concrete using suitable anchors. This creates a defined connection point and can simplify installation.

The required plate dimensions depend on the post size, expected loading, anchor arrangement, and supporting surface.

4. Machinery and Equipment Support

Steel base plates are also used in equipment and machinery installations. Industrial machinery may need a stable and level mounting surface to operate effectively.

A properly selected base plate can provide a solid interface between equipment and its supporting foundation. Depending on the application, plates may be used beneath machinery frames, equipment supports, pumps, compressors, and other industrial components.

In these situations, factors such as vibration, equipment weight, mounting configuration, and foundation conditions should be considered during design.

5. Structural Frameworks and Platforms

Industrial platforms, access structures, mezzanines, and elevated working areas often rely on steel columns and support posts. Base plates can be installed at the bottom of these supports to connect them to concrete foundations or other structural surfaces.

Because platforms can experience regular pedestrian traffic and equipment loads, selecting appropriately designed structural components is important.

A steel base plate can help create a stable connection while distributing the load from the supporting member.

6. Steel Canopies and Outdoor Structures

Outdoor structures such as canopies, shelters, shade structures, and covered walkways may also use steel posts with base plates.

These applications can expose steel components to rain, humidity, temperature changes, and other environmental conditions. Therefore, material selection and surface protection should be considered when choosing a base plate.

Depending on the environment, suitable coatings or corrosion-resistant materials may help improve long-term performance.

7. Construction and Infrastructure Projects

Steel base plates can be found in many construction and infrastructure applications. They may be incorporated into support structures, temporary works, access systems, structural frames, and other engineered assemblies.

Their versatility allows them to be manufactured according to project-specific dimensions and connection requirements.

For construction projects, accurate measurements and appropriate specifications are particularly important because the base plate must work correctly with the structural member, foundation, and fastening system.

How to Choose the Right Steel Base Plate

Selecting a steel base plate should begin with understanding the requirements of the application. Important considerations include:

Plate Size

The length and width should provide sufficient bearing and accommodate the required connection arrangement.

Plate Thickness

Thickness should be selected according to structural loading, connection requirements, and engineering specifications.

Material Grade

The appropriate steel grade depends on the strength, fabrication, environmental, and project requirements.

Anchor and Bolt Configuration

If the plate will be secured to concrete or another supporting surface, the position and size of anchor bolts should be considered during design.

Environmental Conditions

Outdoor, wet, or corrosive environments may require appropriate protective finishes or material selection.

Benefits of Using Steel Base Plates

A properly designed steel base plate can provide several practical advantages:

• Helps distribute concentrated structural loads

• Provides a stable connection between steel members and foundations

• Supports different structural and industrial applications

• Can be manufactured in various sizes and thicknesses

• Offers strong and durable performance

• Can accommodate different fastening and connection methods

• Suitable for both indoor and outdoor applications when properly specified

However, the base plate should always be selected according to the requirements of the specific project rather than relying on a standard size for every application.

Steel Base Plates From Ezy Steel

Ezy Steel provides steel products for a range of construction, industrial, and structural applications. When selecting a steel base plate, project requirements such as dimensions, thickness, material, connection method, and environmental conditions should be considered carefully.

Whether a base plate is required for a structural column, steel post, machinery support, industrial platform, or another application, selecting the correct specifications can help create a reliable and durable connection.

Final Thoughts

A steel base plate may be a relatively simple component, but it can serve an important role in structural and industrial systems. They are commonly used beneath columns, posts, machinery, platforms, canopies, and various support structures to provide a stable interface between structural components and their foundations.

The right plate depends on factors such as load requirements, dimensions, steel grade, thickness, connection method, and environmental conditions. By considering these factors during the planning stage, contractors and engineers can select a base plate that is appropriate for the intended application.

For projects requiring reliable steel components, Ezy Steel can provide solutions suited to a variety of construction and industrial requirements.
