When Should You Choose Rolled Ring Forgings for Industrial Components?

In modern industrial equipment, choosing the right manufacturing method is critical. This choice affects mechanical reliability, operational safety, and overall lifecycle costs, especially for components operating under severe service conditions.



Equipment operating in severe service environments must consistently endure challenging operational stresses. The wrong manufacturing process can lead to premature fatigue, dimensional distortion, or unexpected component failure.



For annular or circular geometries, engineers and procurement teams must evaluate how the component is formed. Rolled ring forgings represent a dedicated manufacturing process engineered specifically for ring-shaped components.



Understanding the engineering criteria behind rolled ring forging applications helps technical and commercial decision-makers evaluate when seamless rings provide the right solution for their specific operational requirements.



What Are Rolled Ring Forgings?



A rolled ring forging is a circular metal component produced by hot-working a pierced preform between specialized rolls that progressively expand the ring's diameter while reducing its cross-sectional wall thickness.

Seamless Rolled Ring Forging Explained



Preform Preparation: A solid metal billet is cut to a precise volume and heated to hot-forging temperatures. It is then upset along its longitudinal axis and pierced to create a hollow, donut-shaped preform.



Rolling and Sizing: The pierced preform is transferred to a ring rolling mill, placed over an idler/mandrel roll, and engaged by a driven main roll.

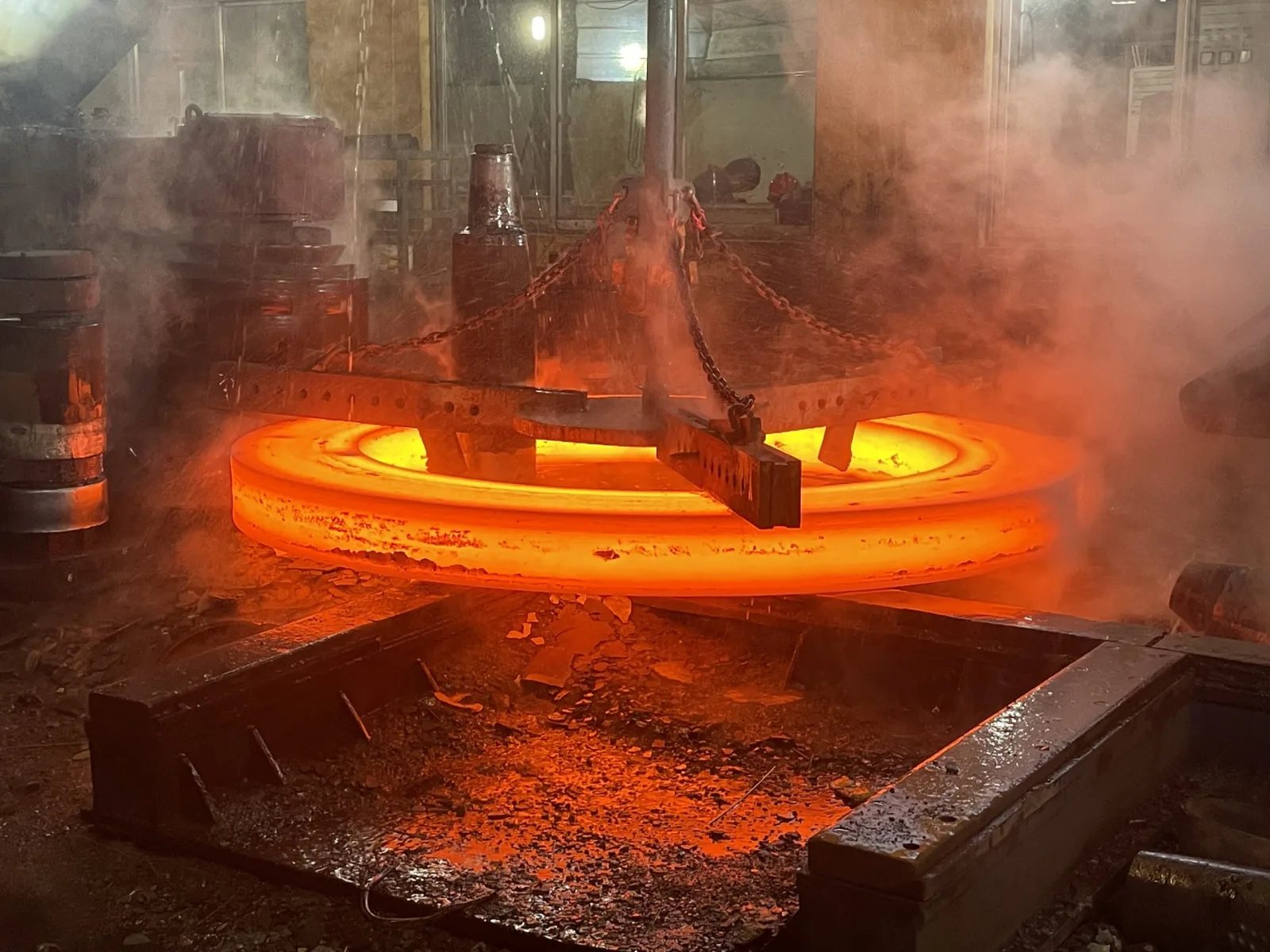

Thermal Processing & Finishing: Post-rolling steps depend on the design and material specification.



How Ring Rolling Differs From Other Forging Methods



Open-Die Forging: Uses flat or contoured dies to shape metal through progressive hammering or pressing.



Closed-Die (Drop) Forging: Closed-die forging is efficient for high-volume, geometrically complex components, but tooling costs and press capacity limit its economic feasibility for mid-to-large-diameter rings.



Seamless Ring Rolling: Specifically engineered for annular cross-sections. It utilizes continuous, rotary compression, allowing the production of near-net circular components across varied diameter-to-wall ratios.



What Makes Rolled Rings Suitable for Industrial Applications?



Grain Flow and Mechanical Strength



This continuous grain flow enhances directional toughness, fatigue resistance, and ductility in the hoop direction. However, final mechanical properties depend on alloy chemistry, sufficient forging reduction ratios, controlled heating cycles, appropriate post-forging heat treatment, and verified testing.



Structural Integrity and Durability



Seamless rolled rings eliminate the welded seams found in rolled-and-welded plate rings, mitigating heat-affected zone (HAZ) variability.



Material Efficiency and Machining Considerations



Ring rolling shapes the metal close to the required cross-section (near-net shape). Actual economic benefits vary based on alloy raw-material costs, overall part dimensions, and required machining allowances.



Consistency in Demanding Applications



Because ring rolling parameters can be monitored and repeated, manufacturers can maintain dimensional and metallurgical uniformity across small batches and production runs alike.



Rolled Rings vs. Other Forging Options

Open-die forging is well-suited for solid shafts, rectangular blocks, or low-quantity rings where specialized rolling equipment is unavailable. However, shaping a ring on an open-die mandrel typically results in wider dimensional tolerances, requiring heavier machining stock allowances than continuous ring rolling.



Rolled Rings vs. Cast Components



Cast microstructures feature non-directional dendritic grain patterns and carry potential risks. Forged rings provide consolidated microstructures and directional grain flow, making them a standard choice.



When Each Approach Is Appropriate



Choose Rolled Rings: When the component is circular, operates under cyclic/pressure stresses, requires high mechanical integrity, and material cost makes machining waste uneconomical.



Choose Castings: When complex geometric features, intricate internal passages, or thin-walled irregular cross-sections make forging and machining cost-prohibitive.



Choose Open-Die Forging: For low-volume, non-standard shapes, solid shafts, or very thick-walled custom sleeves where rolling mill capacities or geometries are impractical.



Which Industries Use Rolled Ring Forgings?



Oil and Gas



Ring-shaped pressure-containing components frequently utilize forged rings to handle hydrostatic pressures, mechanical shock, and sour service environments.



Power Generation



Conventional and renewable power facilities utilize rolled rings in high-stress rotating equipment.



Petrochemical and Refining



Chemical processing facilities specify seamless forged rings for heat exchanger tube sheets, reactor vessel flanges, high-temperature furnace rings, and custom girth rings.



Wind Energy



Wind turbines require large structural and rotating rings. These parts must withstand continuous, multi-directional dynamic loading and turbulence over extended operational lifetimes.



Heavy Equipment and Industrial Machinery



Industrial gearboxes, mining excavators, cranes, and tunneling equipment rely on seamless rings.



Aerospace and Defense



Aerospace applications demand strict structural verification. Seamless rings are specified for jet engine turbine casings, bearing race forgings, structural fuselage rings, and rocket motor connector rings.



What Factors Determine Whether a Rolled Ring Is the Right Choice?



Component Geometry and Dimensions



Ring rolling requires an annular, continuous circular cross-section. Evaluate the outer diameter (OD), inner diameter (ID), face height, and wall thickness.



Load and Operating Conditions



Evaluate the dominant stress vectors. If the part experiences substantial hoop stress, internal/external hydrostatic pressure, continuous rotational torque, or multi-axial cyclic loading, the continuous circumferential grain flow of a rolled ring helps prevent directional shear failures.



Material Requirements:



Forging provides significant benefits for high-alloy materials where raw material costs are elevated.



Temperature and Corrosion Environment



Components exposed to cryogenic temperatures, high-temperature creep zones, or aggressive chemical environments require uniform grain sizes and clean microstructures.



Applicable Specifications and Testing



When specifications mandate 100% volumetric non-destructive examination with strict acceptance criteria, forged seamless rings typically offer lower reject rates compared to castings.



What Should Engineers Consider When Specifying Rolled Rings?



1.    Material Grade and Chemistry



2.            Specify the exact alloy designation, including any restricted chemical compositions.



3.            Dimensions, Tolerances, and Machining Allowances



Differentiate between "as-forged" dimensions, "rough-machined" dimensions, and "final finished" drawing requirements.



Heat Treatment



Specify the required thermal cycle to achieve targeted microstructural properties.



Mechanical and Metallurgical Testing



Detail testing protocols, including test specimen locations and required mechanical properties.



Inspection, Quality, and Traceability



Define non-destructive examination (NDE) criteria such as Ultrasonic Testing, Surface Examination, and Traceability.



When Is a Custom Rolled Ring the Better Option?



Application-Specific Dimensions



A custom rolled ring provides an optimized solution when a design demands specific outside diameter and inside diameter, axial height, wall thickness, and cross-sectional contours.



Custom Materials and Specifications



A custom rolled ring allows engineering and procurement teams to specify: specialized material chemistries, targeted heat treatments, rigorous testing protocols, and customer and industry specifications.



Reducing Unnecessary Machining



By engineering a custom rolled ring close to the net dimensions, manufacturers can significantly reduce the required machining volume. This is particularly critical when working with high-cost alloy, stainless, duplex, or superalloy grades.



Balancing Performance and Manufacturing Requirements



Selecting a custom rolled ring is not an automatic guarantee of lower cost; specialized tooling, custom heat-treating setups, and project-specific testing programs carry their own baseline expenses and lead-time factors.



A custom rolled ring becomes the superior engineering choice when the structural and operational benefits justify the initial setup requirements over off-the-shelf compromises.



Working With a Rolled Ring Manufacturer



Engaging early with a qualified ring rolling manufacturer helps optimize both component design and manufacturing economics.



Manufacturing Capabilities



Verify the supplier’s operating cover:



Minimum and maximum outer diameter (OD), height, and face-width capacities.



In-house vs. outsourced heat-treatment furnace capabilities and quench systems.



Proof-machining or finish-machining capabilities.



Quality Systems and Documentation



Confirm the facility maintains a certified quality management system. Review standard quality documentation packages, verifying that MTRs contain heat-specific chemistry, complete thermal cycle records, and mechanical test results.



Technical Collaboration



A collaborative manufacturer assists in optimizing your component by advising on optimal forging, recommending balanced machining allowances, and identifying cost-saving adjustments.



Key Takeaways



Choosing rolled ring forgings is an engineering decision based on matching part geometry, structural demands, and total manufacturing economics:



Seamless rolled ring forgings are technically and economically advantageous when a component requires: an annular or circular geometry, enhanced circumferential grain flow, high internal soundness and structural integrity, material efficiency, and predictable response to heat treatment and strict quality standards.



No single production method fits every industrial scenario. The optimal choice is determined by evaluating the complete engineering equation.
