What's Missing in Your Welding and Soldering Fume Extraction System

A Welding Shop Has Persistent Smoke Despite General Ventilation. So, what is required to mitigate it?

Your fans are moving air, not removing smoke. What's missing is a welding and soldering fume extraction system that captures fume right at the source, before it spreads.

Let's break down why this happens and how to fix it.

Why the Smoke Won't Go Away

General ventilation fans do one job well: they push air around. That's it.

They don't grab smoke. They just spread it thinner across the room.

Picture spilling water on a floor and mopping it by pushing it toward the edges. The puddle looks smaller. The water is still there.

Welding smoke behaves the same way. Roof fans and open bay doors dilute it, but the metal particulate, manganese, and chromium stay airborne. Workers near the arc still breathe a heavy dose before dilution ever kicks in.

That's why you see haze near the ceiling hours later. That's why windows get a soot film. That's why welders complain of a metallic taste by lunch. The air looks handled. It isn't.

What Actually Works: Capture, Not Circulation

The fix has a name: source capture.

You pull smoke from the exact spot it's created, at the torch or the solder joint, before it ever rises into the room. This is what a welding and soldering fume extraction system is built to do.

OSHA and ACGIH both point in the same direction on this. Stopping exposure at the source beats diluting it after the fact, every time.

A portable fume extractor makes this easy to apply. No ductwork overhaul. No fixed station. You roll it to wherever the work is happening.

Two Filters, Not One

Here's where a lot of shops waste money on the wrong unit.

A real fume extraction system needs both:

• HEPA filtration: catches the fine metal particulate and smoke
• Activated carbon: catches the gases, VOCs, and odor HEPA can't touch

Skip one, and you've only solved half the problem. HEPA without carbon still leaves chemical odor. Carbon without HEPA still leaves visible smoke.

The FumeExtractor HD950covers both. It runs a 12-inch HEPA filter rated to catch 99.99% of particles down to 0.1 micron, paired with a carbon bed that holds up to 160 pounds of media. That's built for steel fabrication, body shops, and shipyards where fume runs heavy all day.

Picking the Right Setup

A single welder doing occasional MIG jobs doesn't need what a full robotic welding line needs. Match the tool to the workload.

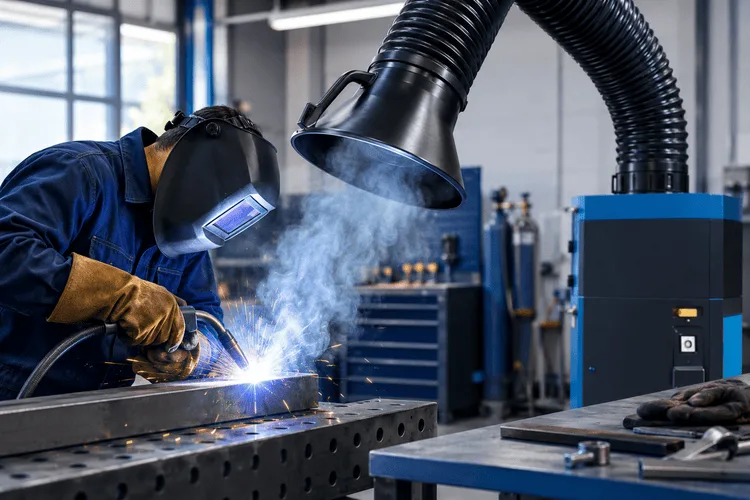

·         One station, mixed processes: A portable fume extractor like the HD950 gives you a 6-foot adjustable arm you can position right over the joint, then roll to the next bay. A second-arm option lets one unit cover two stations.

·         Whole shop floor, ambient buildup: This is where industrial air scrubbers come in. They run continuously in the background, catching whatever escapes source capture, plus odor carryover from paint or solvents nearby.

Most fabrication shops end up needing both. Source capture at the station, scrubbers for the room. Together, they close the gap general ventilation leaves open.

Signs You're Already Behind

You don't need a formal air test to know something's off. Watch for:

• Smoke still hanging near the ceiling an hour after the job's done
• Welders reporting headaches or throat irritation by mid-shift
• Soot on windows or light fixtures
• Fans running nonstop with zero visible change

Two or more of these? Your ventilation has already told you it can't handle the load alone.

Mistakes That Keep Bringing the Smoke Back

Even shops that buy an extractor sometimes still have a smoke problem. Usually it's one of these:

• Placing the unit too far from the work. A capture arm only works if it's close, within a foot or two of the joint. Set it up across the bay, and it's just decoration.
• Ignoring filter life. A clogged HEPA filter stops pulling air the way it should. If the pre-filter hasn't been checked in months, that's likely your issue.
• Buying single-stage filtration. Some cheaper units only trap particulate. Without a carbon stage, gases and odor still build up even with the fan running fine.
• Treating it as optional PPE. A portable fume extractor works best as a standard setup for every job, not something pulled out only when someone complains.

Fix the placement and filter schedule first. That alone solves most "it's not working" complaints.

What Good Air Quality Actually Looks Like

Once a welding and soldering fume extraction system is set up right, the change is easy to notice; no lab test needed.

You'll see:

• No visible haze lingering near the ceiling after a shift
• Clear windows, no fresh soot film building up week to week
• Welders finishing a shift without the usual headache or metallic taste
• General fans doing less work, because there's less smoke left for them to move

If you're layering in industrial air scrubbers for the whole floor, you should also notice fewer odor complaints from other stations nearby, not just around the welding bay. That's the sign both systems are doing their job together instead of one covering for the other.

Bottom Line

Persistent smoke isn't a mystery. General ventilation moves air. It was never designed to remove what's in it.

The real fix is a welding and soldering fume extraction system that captures fume at the source, backed by real HEPA and carbon filtration. Add a portable fume extractor like the Fume Extractor HD950 at each station, layer in industrial air scrubbers for the whole floor, and the haze stops being a daily problem.

Electrocorp has been sizing these systems since 1985. Please tell us your process, and we'll tell you what actually fits your shop.
