Understanding Low Frequency Devices and Components Including Transformers

Low frequency devices remain an essential part of modern electrical and electronic systems. While high-frequency switching technologies have become increasingly common, many industrial, commercial, and power distribution applications continue to depend on components designed for operation at standard line frequencies. Their ability to provide reliable voltage conversion, electrical isolation, and long service life makes them indispensable across numerous industries.

Among these devices, transformers represent one of the most widely used magnetic components. Available in multiple configurations and power ratings, they support applications ranging from industrial control systems to medical equipment and power supplies. Understanding their construction, operating principles, and component selection helps engineers and designers choose solutions that meet both electrical and mechanical requirements.

Understanding Low Frequency Devices

Lowfrequency device are electrical components designed to operate efficiently at conventional power frequencies, typically 50 Hz or 60 Hz. Unlike high-frequency magnetic components used in switching power supplies, these devices rely on laminated magnetic cores and robust winding structures to transfer electrical energy safely and efficiently.

Typical low frequency magnetic devices include:

• Power transformers
• Isolation transformers
• Toroidal transformers
• High-voltage transformers
• Encapsulated transformers
• Class 2 transformers
• Audio transformers
• Current sense transformers
• Inductors and chokes

Although each serves a different purpose, they all depend on controlled magnetic fields for energy transfer or circuit operation.

Why Low Frequency Devices Continue to Be Important

Many electrical systems require dependable performance over long operating periods. Low frequency magnetic components are often selected because they offer predictable operation, mechanical durability, and stable electrical characteristics.

Some of their key advantages include:

• Reliable voltage conversion
• Electrical isolation between circuits
• Low operating noise
• Long operational life
• Consistent performance under continuous load
• Compatibility with industrial power systems

These characteristics make them suitable for applications where reliability is often more important than minimizing component size.

Transformers: The Foundation of Low Frequency Power Systems

A transformer transfers electrical energy from one alternating-current circuit to another through electromagnetic induction. Rather than creating electrical energy, it changes voltage, current, or impedance while maintaining the operating frequency.

Depending on system requirements, transformers may be designed to:

• Step voltage up
• Step voltage down
• Isolate electrical circuits
• Match impedance
• Supply multiple output voltages

Because there is no direct electrical connection between primary and secondary windings in most transformer designs, they also improve electrical safety in many applications.

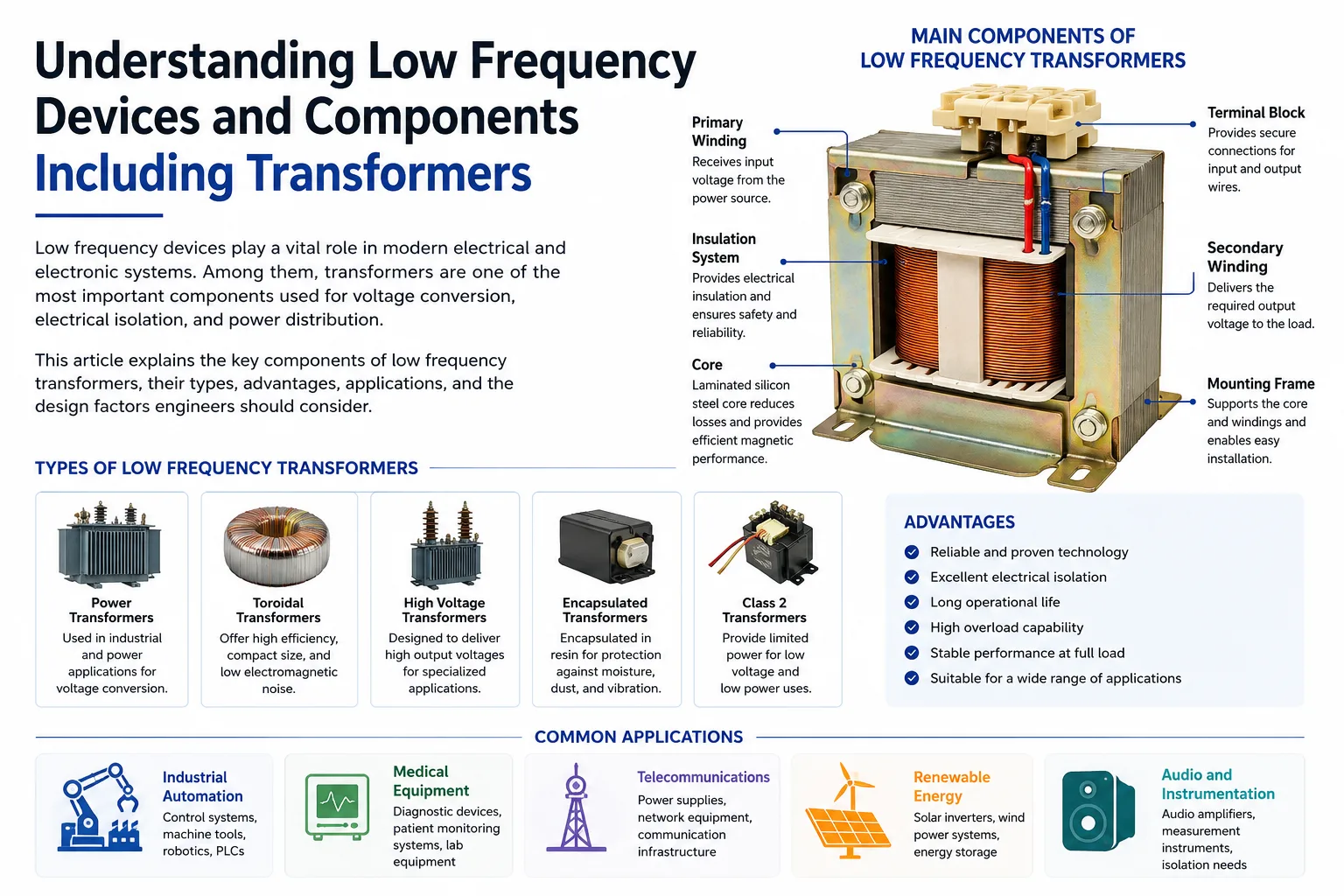

Main Components of Low Frequency Transformers

Magnetic Core

The magnetic core provides the path through which magnetic flux travels.

For low frequency applications, laminated steel cores are commonly used because they help reduce eddy current losses while maintaining efficient magnetic performance.

Core selection influences:

• Efficiency
• Heat generation
• Transformer size
• Weight
• Voltage regulation

Primary Winding

The primary winding receives the incoming AC voltage.

Its design depends upon:

• Input voltage
• Current capacity
• Wire diameter
• Number of turns
• Required insulation

Proper winding construction minimizes electrical losses while supporting long-term reliability.

Secondary Winding

The secondary winding delivers electrical energy to the connected load.

Different applications may require:

• Single output voltage
• Multiple secondary voltages
• High current output
• Low current precision output

The winding ratio between primary and secondary determines the output voltage.

Insulation System

Electrical insulation separates conductive parts and protects against electrical breakdown.

Transformer insulation commonly provides:

• Electrical safety
• Thermal protection
• Long service life
• Stable operation under varying temperatures

The quality of insulation directly affects transformer durability.

Coil Support Structure

A coil former or bobbin helps organize winding placement while maintaining spacing between layers.

Its functions include:

• Mechanical support
• Improved insulation spacing
• Easier manufacturing
• Consistent winding geometry

Common Types of Low Frequency Transformers

Low frequency transformers are available in several configurations depending on the intended application.

Power Transformers

Power transformers convert voltages for industrial equipment, electrical systems, and power distribution.

They are designed for continuous operation while maintaining stable electrical performance.

Toroidal Transformers

Toroidal transformers use a ring-shaped magnetic core.

Their circular construction offers several advantages:

• Compact size
• Lower magnetic leakage
• Reduced audible hum
• High efficiency

These characteristics make them suitable for equipment where space and noise reduction are important.

High Voltage Transformers

High voltage transformers are designed to safely generate significantly higher output voltages than the input supply.

They are commonly used in specialized industrial and testing equipment where elevated voltage levels are required.

Encapsulated Transformers

Encapsulated transformers are enclosed within protective resin or molded materials.

This construction provides:

• Environmental protection
• Improved moisture resistance
• Better vibration tolerance
• Enhanced mechanical durability

They are often selected for demanding operating environments.

Class 2 Transformers

Class 2 transformers provide limited power output and are commonly used where safety requirements restrict available energy.

Typical applications include:

• Doorbells
• HVAC controls
• Security systems
• Low-voltage lighting
• Building automation

Their limited output helps reduce electrical hazards in many low-power installations.

Specialty Transformer Components

Beyond standard power transformers, many systems require specialized magnetic components designed for unique electrical functions.

Examples include:

Audio Transformers

Used for impedance matching and signal isolation in audio equipment.

Current Sense Transformers

Designed to monitor electrical current by producing a proportional output signal for measurement and protection circuits.

Isolation Transformers

Provide complete electrical separation between circuits while transferring AC power.

Isolation transformers help reduce electrical noise and improve operator safety.

Design Considerations

Selecting an appropriate low frequency transformer involves balancing several engineering factors.

Important considerations include:

Design Factor

Importance

Input voltage

Determines primary winding requirements

Output voltage

Defines turns ratio

Power rating

Establishes load capacity

Temperature rise

Influences insulation life

Mounting style

Determines installation compatibility

Efficiency

Reduces operating losses

Mechanical dimensions

Supports equipment integration

These design choices affect both electrical performance and long-term reliability.

Typical Applications

Low frequency devices support a wide range of industries.

Industrial Automation

Used within:

• Machine controls
• Manufacturing equipment
• PLC systems
• Industrial power supplies

Medical Equipment

Reliable electrical isolation makes transformers suitable for:

• Diagnostic systems
• Laboratory instruments
• Monitoring equipment

Telecommunications

Power conversion and isolation remain essential for communication infrastructure.

Renewable Energy

Low frequency transformers support:

• Power conditioning
• Electrical isolation
• Grid connection equipment

Commercial Electronics

They are also used in:

• Control panels
• Instrumentation
• Security equipment
• Audio systems

Advantages of Low Frequency Devices

Engineers continue selecting low frequency magnetic components because they provide:

• Excellent electrical isolation
• Stable voltage transformation
• Long operating life
• High reliability
• Strong overload capability
• Proven performance across many applications

Although they are generally larger than high-frequency alternatives, their durability and predictable performance continue to make them the preferred choice in many power applications.

Conclusion

Low frequency devices remain fundamental building blocks of electrical systems. From power transformers and toroidal designs to isolation and specialty transformers, these components including Transformers enable efficient energy transfer, electrical safety, and dependable system performance.

As industrial systems continue to demand reliable power conversion and long operational life, low frequency magnetic components will remain an important part of modern electrical engineering. Understanding their construction, major components, and application requirements allows engineers to select designs that meet both technical and operational objectives.

Frequently Asked Questions

What are low frequency devices?

Low frequency devices are electrical components designed to operate at standard power frequencies, typically 50 Hz or 60 Hz, for applications such as power conversion, electrical isolation, and energy transfer.

What are the main components of a transformer?

A low frequency transformer generally consists of a magnetic core, primary winding, secondary winding, insulation system, and mechanical support structure.

Why are toroidal transformers widely used?

Toroidal transformers offer compact construction, lower magnetic leakage, reduced noise, and improved efficiency compared with many conventional core designs.

What is the purpose of an isolation transformer?

Isolation transformers transfer AC power while electrically separating the input and output circuits, improving safety and reducing electrical noise.

Where are low frequency transformers commonly used?

They are used in industrial automation, medical equipment, telecommunications, commercial electronics, renewable energy systems, and power distribution.

What factors should be considered when selecting a low frequency transformer?

Key considerations include input and output voltage, power rating, efficiency, operating temperature, mounting style, insulation requirements, and application environment.
