Tricone Bit Guide: 7 Things to Think About Before Buying
A practical guide to choosing the right tricone bit based on rock formations, drilling conditions, bit types, durability, and cost.
The actual cost of a drilling team wasting days because of a bit that wears out too soon or stalls in hard rock is far more than the tool's purchase price. A tricone bit is one of the most often used cutting tools in rotary drilling because it easily adjusts to changing ground. It is utilised in energy projects, construction sites, mines, and water wells. It is also known as a tricone rock bit or a roller cone drill bit. This tutorial explains how it works, where it fits, and how to choose and buy one with confidence.
How Does a Tricone Bit Work and What Is It?
A tricone drill bit has three conical cutters attached to its steel body. When the drill string spins, each cone rolls over the bottom of the hole on its own bearing. The cutting devices on the cones smash, chip, or gouge the rock while pressurized air or drilling fluid carries the cuttings up and out of the hole.
The tricone bit's rolling motion sets it apart from fixed-cutter versions. Instead of shearing rock with a single edge, it delivers concentrated point stresses that fracture the formation. As a result, when the ground in the same hole shifts from soft clay to hard limestone, tricone bits remain a flexible choice.
Either steel teeth that are machined from the cone material or tungsten carbide inserts are used in the cones. The best choice depends mostly on the rock's abrasiveness and hardness. We keep that comparison brief here since each type of cutter requires its own detailed tutorial.
Common Applications for Tricone Bits
Industrial drilling bits are used in many different sectors and are assessed according to their suitability for the task.
Water Well Drilling
Contractors use roller cone bits to drill through sandstone, fractured rock, and alluvial layers to reach groundwater. Air or dirt circulation keeps the hole clean as the bit advances.
Drilling for Gas and Oil
Operators use tricone bits in different parts of a well, particularly if the rocks' hardness changes. Mud programs, depth, and pressure all have an impact on the bit that is chosen.
Mining and Quarrying
Exploration, blast-hole, and production drilling all require dependable rock drilling equipment. Larger diameters are common in blast-hole work, when the objective is continuous penetration across difficult terrain.
Construction and Infrastructure
Anchor placement, geotechnical research, and foundation piling all often employ mixed ground. A roller cone bit may be used on soil, weathered rock, and more challenging strata without the need for another type of tool.
Tricone Bit Sizes and Specifications
Before requesting a quotation, be aware of the details you need to include. The main tricone bit requirements are as follows:
The bit diameter must match the designated hole size and casing plan.
Thread connection: The pin connector must be compatible with your drill string.
Cutters come in two varieties: steel teeth and carbide inserts. Bearings can be sealed or open, depending on the drilling method. Air tunnels for air drilling or nozzles for fluid drilling are examples of circulation configurations.

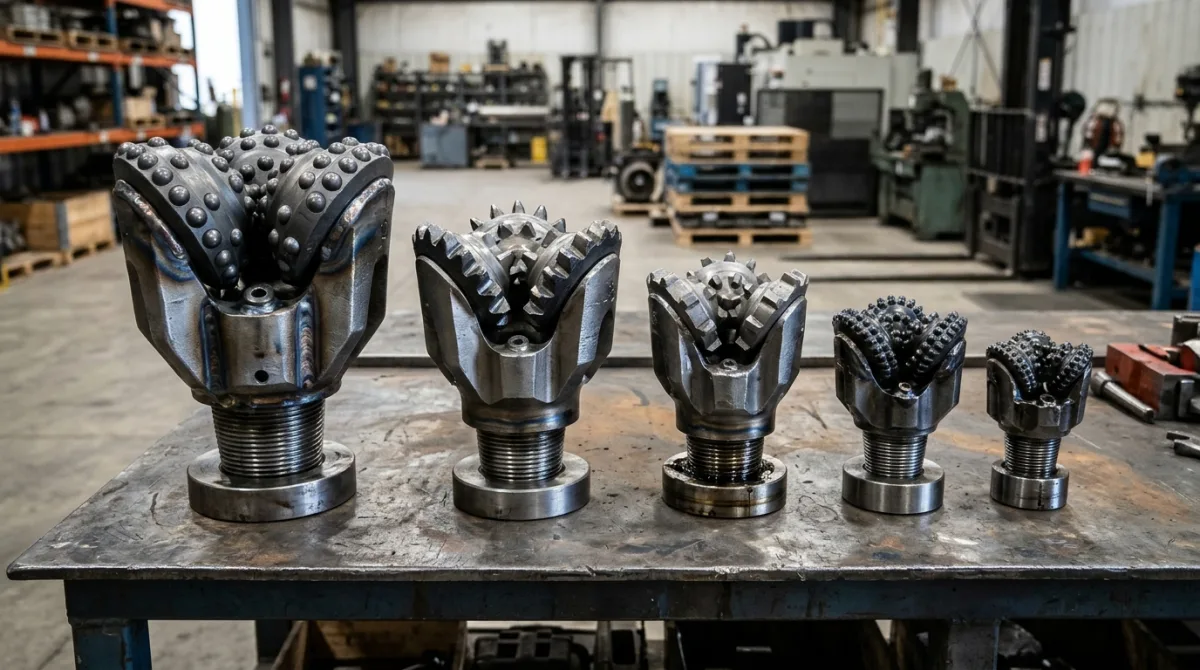

Tricone bit sizes range from tiny for small wells to enormous for blast holes and pilings. Verify that the size is appropriate for your rig's torque, pulling capacity, and rotating speed. A bit that is theoretically accurate but incompatible with the apparatus will not function well.
Seven Things to Think About When Choosing a Tricone Bit
Good tricone bit selection starts on the ground, not in the catalogue. Take into account these seven factors before making a purchase:
Hardness and abrasiveness of rocks. Shorter, stronger cutting structures are needed for harder rocks, whereas longer teeth and wider spacing are usually needed for softer rocks.
Formation changes. If the hole passes through several layers, use a bit that is resilient.
The hole diameter and casing design.
Rig capacity. Check the bit weight, rotating speed, and torque restrictions.
The circulation method. Air, water, and mud all place different demands on nozzles and bearings.
The drilling depth. Wear and heating are increased by deeper holes.
Project economics. Compare the cost per metre dug in addition to the purchase price.
Matching drilling bits for different rock types is the most crucial factor in reducing premature wear. Any geological logs or historical bit data you may have from the area should be made available to your supplier.
Tricone Bit Performance and Service Life
Tricone bit performance is influenced by more than just the bit itself. Drilling with insufficient hole cleaning, using too much weight, or working at the wrong speed can all drastically reduce life. Because bearings are often the limiting factor, heat, dust, and contamination are significant.
Watch for danger signs such as worn gauge, vibration, increased torque, or decreased penetration rate. By recording the number of hours run, meters drilled, and the condition of each bit as it is retrieved, you may make better purchases in the future. Because service life varies widely between activities, be sceptical of any provider that guarantees a definite amount without knowing your requirements.
What Affects Tricone Drill Bit Prices?
A tricone drill bit's price is influenced by several variables rather than just one.
More steel and more intricate bearings are needed for larger bits.
Cutter type: carbide inserts and milled teeth are made differently. Both construction and intended usage are impacted by the design of bearings and seals. The composition and quality of the materials, import, shipping, and order quantity costs.
Buyers should consider lead times, freight, and exchange rates while searching for tricone bit pricing in Pakistan. Usually, the lowest quotation isn't the greatest deal. Rig downtime expenses are higher when a less expensive bit fails early than when a bit is successfully matched.
Choosing an International and Pakistani Tricone Bit Supplier
A reliable tricone bits provider does more than just ship products. Seek out clear technical communication, honest lead times, comprehensive specs, and support for any questions that may arise after delivery.
Ask each provider to confirm in writing the cutter type, application, size, and connection. Request relevant documents for your purchase and compare prices based on the same parameters to guarantee a fair comparison. Analyse import delivery timelines and shipping circumstances.
Equip Way Engineering Services Private Limited (Equipway Engineering) is a reputable commercial importer and exporter of industrial and engineering products with fifteen years of experience. To find the ideal option, if you would like to evaluate a Tricone Bit, explain your requirements and include details about your hole size, formation, and rig.
Common Purchasing Mistakes to Avoid
Buying simply based on cost. A cheap quote may hide a poor fit for your rock.
Compatibility of rigs is being neglected. Limitations on torque, size, and thread must coincide. Disregarding formation facts. Guessing the geology is often wrong.
It is inappropriate to compare like with like. Quotes with disparate limits are meaningless. Disregarding operating protocols. Even a good bit can fail if done incorrectly.
A brief checklist including formation, diameter, connection, rig, and circulation mechanism will help prevent the majority of these errors.
Frequently Asked Questions
What Is a Tricone Bit Used For?
It is used to drill oil and gas wells, mining and blast holes, foundation and geotechnical holes, and water wells. Its rotating cones make it suitable for a range of formations.
How Does a Tricone Drill Bit Work?
Three cones on bearings are rotated by the drill string. Their cutting components smash and fracture the rock, while flowing fluid or air removes the cuttings.
How Can One Choose the Right Bit for a Drilling Application?
Once the kind and hardness of the rock have been determined, match the hole diameter, thread connection, rig capacity, and circulation technique. Look through any formation records that are accessible.
What Factors Affect the Tricone Bits' Size and Properties?
The hole diameter, casing design, rig power, drill string connection, cutter type, and bearing design all influence the final specification.
What Elements Influence Tricone Drill Bit Prices in Pakistan?
Size, cutter type, bearing design, materials, order quantity, freight, import expenses, and currency rates are some of the aspects that are involved.
How Can Pakistani Customers Find a Reliable Supplier of Tricone Bits?
Check for technological response, precise lead times, comprehensive specs, and post-purchase support. Obtain quotes for the same specifications.
What Information Should Be Supplied When Requesting a Quote?
Talk about the drilling method, depth, quantity, size of holes, kind of formation, rig model, thread connection, and delivery location.
In Conclusion
Choosing the right bit may save rig hours, money, and time. Determine value based on the cost per metre drilled, identify your formation, confirm your specifications, and properly assess suppliers. Send Equipway Engineering your drilling criteria and get an estimate depending on your requirements when you're ready to discuss your project.
