The Ultimate Guide to Mud Pumps: Driving Sales, Efficiency, and Drilling Success

Why the Right Mud Pump Transforms Your Drilling Business Bottom Line

In oil, gas, geothermal, and water well drilling, the mud pump is the heart of the operation, circulating drilling fluid to cool the bit, remove cuttings, and maintain wellbore stability. Choosing the wrong pump leads to poor hole cleaning, equipment failure, and costly downtime. Conversely, the right pump ensures efficient circulation, reduces wear, and extends the life of your drilling tools. SHSTRONGMAC, a Worldwide leading and trustworthy exporter of advanced industrial machinery, understands this critical connection. We deliver world-class equipment backed by continuous R&D to customers across Asia, Africa, Europe, the USA, Canada, and Australia.

Understanding What a Mud Pump Is

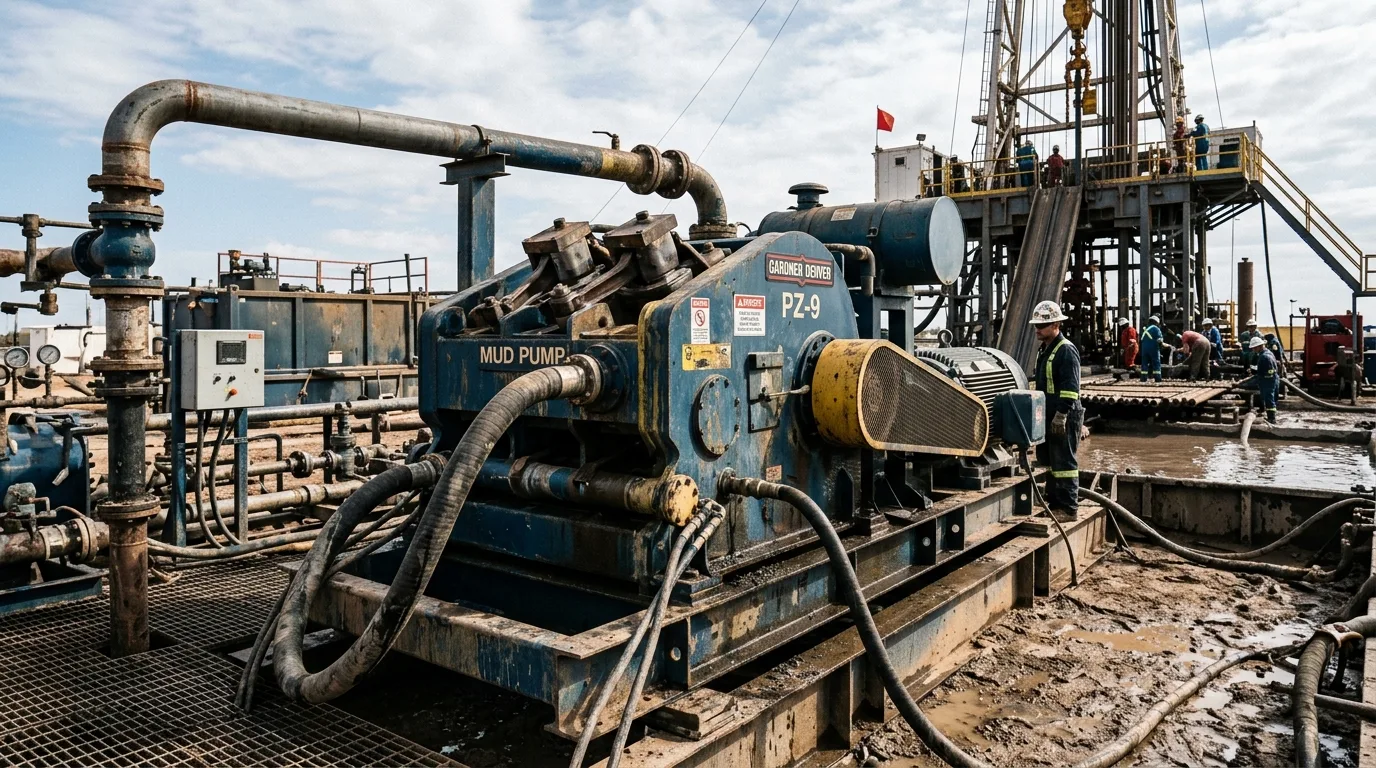

A mud pump is a reciprocating piston or plunger pump used to circulate drilling fluid under high pressure down a drill string and back up the annulus between the drill pipe and the borehole . It is an essential component of oil well and other deep drilling operations . Typical operating pressures can reach several thousand pounds per square inch, depending on pump design and drilling conditions . The pump works by converting the rotational motion of the power source into the reciprocating linear motion of the piston through a crank connecting rod mechanism, compressing low-pressure mud into high-pressure mud .

The Critical Distinction: Piston Pumps Versus Centrifugal Pumps

Choosing the right pump type is crucial, as there are benefits and considerations for each .

Piston Pumps use pistons to create pressure and circulate the drilling mud. These positive displacement pumps generate significant hydraulic pressures to overcome drilling resistance and ensure efficient mud circulation . Piston pumps are typically reconditioned rather than replaced, offsetting their higher initial cost over time . They are ideal when high pressure and high flow are required.

Centrifugal Pumps work on the principle of centrifugal force, with a rotating impeller pushing the drilling mud radially outward. They produce high flow rates but typically operate at lower pressure ranges than piston pumps . For geothermal drilling requiring a balance of high flow rates and pressure, centrifugal pumps can be an excellent choice .

Pump Classifications and Performance Parameters

Mud pumps can be divided into single-acting and double-acting pumps based on the number of suction and drainage actions per piston cycle. They are also classified by the number of liners (pistons/plungers) . For typical petroleum drilling rigs, the triplex (three piston/plunger) pump is the most common. Duplex pumps have largely been replaced by the triplex design, but are still used in some regions . Newer developments include hex pumps and quintuplex pumps, which offer lower "mud noise" for better measurement while drilling (MWD) and logging while drilling (LWD) decoding .

Performance is measured by two main parameters: displacement and pressure . Displacement, calculated in liters per minute, relates to the drilling hole diameter and the required return speed of drilling fluid from the bottom of the hole. Pressure depends on the depth of the hole, pipeline resistance, and the nature of the conveying drilling fluid. Deeper holes and greater pipeline resistance require higher pressure .

Working Principle and Structure

A mud pump consists of two main sub-assemblies: the power end and the fluid end .

The power end is used to transmit power and convert motion modes and speeds, providing appropriate power for the fluid end . It includes the base, frame, crankshaft connecting rod device, crosshead assembly, and lubrication assembly . The main power relies on the crank connecting rod device, which converts rotational motion into the reciprocating linear motion of the crosshead and piston .

The fluid end is used to convert mechanical energy into liquid internal energy for transporting mud . It includes the valve box, suction valve, discharge valve, cylinder liner, piston, piston rod, and other components . The fluid end produces the pumping process with valves, pistons, and liners. Because these are high-wear items, modern pumps are designed for quick replacement of these parts .

Other critical components include:

• Air bags (pulsation dampeners): Connected to the inlet and outlet of the fluid end, these reduce pressure fluctuations in the discharge system, providing a more uniform liquid flow . They can only use compressed nitrogen or air, not flammable gases .

• Ceramic liners: As a vulnerable component, the cylinder liner is often made of ceramic material for durability .

Key Selection Factors for Mud Pumps

Application Requirements and Pump Configuration

Choose the pump based on wellbore demands. Shallow, wide wells require high flow rates at low pressures, while deep wells demand the highest pressures . Matching pump capacity to requirements prevents poor performance or wasteful overcapacity. Triplex pumps are generally easier to repair and maintain than duplex pumps, with fewer reciprocating parts to monitor .

Drive System Selection

Electric motors produce less pollution, are more efficient, and quieter, making them essential for city infrastructure and operations near populated areas. Diesel-powered machines offer independence from the power grid, making them ideal for rural locations and mobile drilling spreads . SHSTRONGMAC supplies mud pumps available in both diesel and electric variants for easy project adaptation.

Maintenance and Reliability

A disciplined safety and maintenance system is crucial for keeping operations safe and productive. Daily inspections should include checking levels of engine oil, hydraulic oil, and coolant; cleaning equipment surfaces; and checking connections. Regular maintenance intervals should include changing engine oil and filters, checking hydraulic system sealing, and inspecting structural stability .

Common issues to watch for include:

• Knocking sounds from the crankshaft indicate wearing connecting rods or crossheads .

• High-frequency screaming suggests bearing problems .

• Regular thumping may mean valves are slamming due to weak springs or worn guides .

• Overheating despite cooling flow indicates internal friction from unaligned pistons or dirty bearing oil .

Real-World Example: During a shale gas drilling project, an offshore platform experienced discharge valve failures every 48 hours. Investigation showed formation cuttings with sharp angles were wearing valve seats. The solution involved using ceramic-seat valves and improving solids control, increasing valve life to over 300 hours .

Recent Innovations

Recent developments focus on energy efficiency, component durability, and automation. Innovations include IoT integrated sensors for real-time data collection, adaptive control systems that automatically adjust pump parameters, and new advanced materials like ceramic coatings and treated steels for wear resistance. Modular designs allow replacing pistons, valves, or liners in minutes, drastically reducing downtime .

Digitization of pump monitoring through sensors collecting pressure, temperature, vibration, and flow data enables predictive maintenance. Through data analytics and machine learning, operators can anticipate failures before they occur, reducing unscheduled downtime and improving safety .

Testimonial:
"Working with SHSTRONGMAC on our mud pump needs has been transformative. The triplex piston pump handles our demanding deep-well operations with consistent high pressure. The modular design allows our team to perform maintenance quickly, keeping our rigs running. Their after-sales support and spare parts availability give us complete confidence." - Drilling Operations Manager, Oil Exploration, Africa

Frequently Asked Questions

What Is the Difference Between a Piston Mud Pump and a Centrifugal Mud Pump?

A piston mud pump is a positive displacement pump that uses pistons to create high pressure for overcoming drilling resistance. A centrifugal pump uses a rotating impeller to generate high flow rates but operates at lower pressures. The choice depends on whether the application requires high pressure or high flow .

What Are the Main Components of a Mud Pump?

A mud pump consists of two main sub-assemblies: the fluid end and the power end. The fluid end includes the valve box, suction valve, discharge valve, cylinder liner, piston, and piston rod. The power end includes the base, frame, crankshaft connecting rod device, crosshead assembly, and lubrication assembly .

Why Is the Mud Pump Essential for Drilling Operations?

Mud pumps are indispensable because they circulate drilling mud that cools and lubricates the drill bit, maintains borehole stability, and carries drill cuttings back to the surface. Without a functioning mud pump, the drilling operation would cease due to bit failure, borehole collapse, or clogged equipment .

How Often Should I Service a Mud Pump?

Daily inspections should include checking levels of engine oil, hydraulic oil, and coolant, cleaning equipment surfaces, and checking connections. Regular maintenance intervals depend on manufacturer specifications, but condition monitoring through vibration analysis and oil sampling can help anticipate failures before they occur, reducing unscheduled downtime .

What Are the Signs That a Mud Pump Needs Maintenance?

Signs include knocking sounds from the crankshaft (wearing connecting rods or crossheads), high-frequency screaming (bearing problems), regular thumping (valves slamming), and overheating despite cooling flow (internal friction from unaligned pistons or dirty bearing oil) .

Conclusion

Selecting the right mud pump is a strategic decision that impacts your entire drilling operation's efficiency, safety, and profitability. Understanding the different types, key performance parameters, and maintenance practices empowers an informed investment. SHSTRONGMAC is your trusted partner in this journey, providing world-class mud pumps and expert guidance to ensure your drilling operations drive success. Contact us today to find the perfect solution for your business.
