The Critical Art of Polarity Testing in Portable Appliance Testing

The safety of electrical appliances in a workplace or domestic environment relies heavily on the integrity of the connections within the plug. Among the various diagnostic checks performed during inspection, the polarity test is perhaps the most fundamental safeguard against the risk of electric shock and fire. When inspecting a rewirable plug top, verifying that the live, neutral, and earth conductors are connected to their designated terminals is non-negotiable. An incorrect connection—where the live wire is switched with the neutral or the earth—can turn an otherwise safe appliance into a potential death trap, as internal switches might disconnect the neutral line while leaving the internal components energized. Mastering the technique of polarity testing is therefore a foundational skill that every professional must possess, ensuring that every plug they sign off is truly safe for use.

Understanding the Internal Anatomy of a Rewirable Plug

Before performing any test, the inspection begins with a thorough visual check of the plug's physical condition. A rewirable plug is held together by screws, and the internal housing should be examined for signs of heat damage, loose terminal screws, or frayed insulation on the wires. During a structured pat testing course, you learn that the cable clamp must be properly seated to grip the outer insulation of the cable, not the individual conductors, to prevent mechanical strain. Once the plug is opened, the polarity check is essentially a continuity test. You are confirming that the conductor connected to the Live pin of the plug is the same conductor that travels to the Live terminal of the device. If the wiring is crossed, or if the individual strands of one conductor are touching another, the appliance will fail the test immediately, and the defect must be rectified before further use.

Executing the Polarity Test With Precision

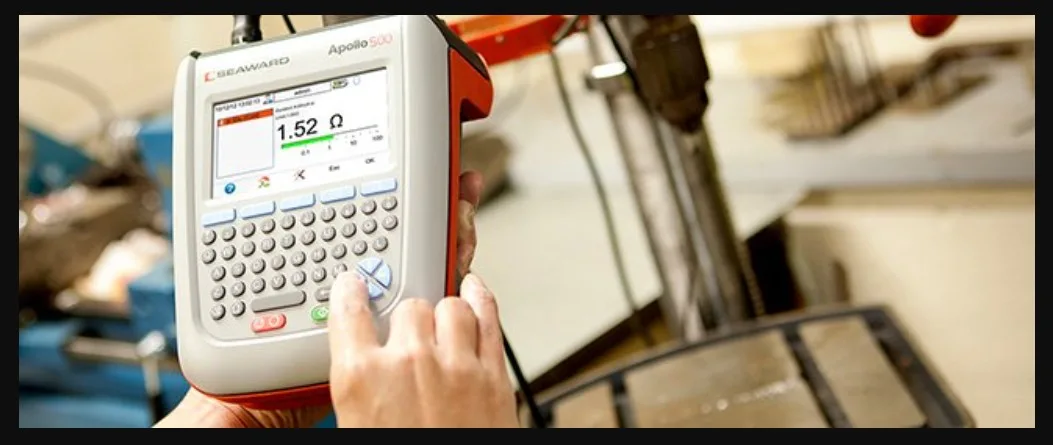

The actual polarity test is performed using a digital multimeter or a dedicated PAT testing device set to its low-ohms or continuity range. To verify polarity, you connect one lead of your meter to the specific pin of the plug—starting with the Live pin—and the other lead to the corresponding terminal point at the device’s internal switch or component side. You should see a near-zero resistance reading, confirming a solid connection. You then repeat this process for the Neutral and Earth conductors. The most dangerous mistake one can make is failing to check the Earth continuity. A missing or high-resistance earth connection is a critical failure, as it means the appliance’s metal casing will not be protected in the event of a fault. A rigorous approach ensures that not only is the polarity correct, but the physical connection is secure enough to withstand the vibrations and daily use of a standard appliance.

The Consequences of Polarity Errors

Why is polarity so vital? Consider an appliance with an internal fuse or a single-pole switch. If the Live and Neutral wires are reversed, the switch will disconnect the Neutral line, but the internal components of the appliance—such as the heating element in a kettle or the motor in a drill—will remain energized even when the switch is in the "off" position. An unsuspecting user might touch a part of the appliance they believe to be de-energized, only to receive a severe electric shock. This is the definition of a catastrophic failure. Additionally, reversed polarity can lead to erratic device behavior and can cause internal components to fail prematurely due to improper voltage distribution within the circuit. By meticulously testing for correct polarity, the technician ensures that the device behaves exactly as the manufacturer intended, preventing unpredictable and dangerous situations for the end user.

The Role of Formal Training in Skill Acquisition

While the concept of polarity seems straightforward, the nuances of identifying hidden defects and safely handling energized test equipment require professional guidance. Many students arrive at these topics with only a superficial understanding, unaware of the specific test equipment settings or the safety protocols required to prevent accidental shorts during the testing process. Enrolling in a comprehensive pat testing course provides the essential framework for success. These programs offer a blend of theoretical knowledge and intensive practical exercises, allowing you to work on various types of plugs, cables, and appliances under the supervision of experienced instructors. Learning to identify the "gotchas"—such as signs of previous improper repairs or substandard internal components—is what distinguishes a novice from a highly competent technician who can confidently guarantee the safety of the equipment they inspect.

Standardizing Documentation and Safety Records

Once the polarity test is successfully completed and the appliance is deemed safe, the final, crucial step is the documentation process. A PAT test is only as good as the record that backs it up. Every inspection must be logged with the date, the test results, and the identification of the person who performed the work. This creates an audit trail that is essential for insurance purposes and regulatory compliance. If an appliance were to fail later, having a record showing that it was tested, verified for correct polarity, and passed all safety criteria provides a clear defense for the technician and the organization. Detailed records allow for trend analysis, helping the facility manager understand which pieces of equipment are aging faster than others. By maintaining this high level of professional rigor, the technician becomes an indispensable part of the facility’s overall health and safety strategy.
