Stone Column: A Complete Guide to Ground Improvement Technique

In modern construction, soil stability plays a crucial role in ensuring the strength and durability of structures. One of the most effective ground improvement methods is the Stone Column technique. It is widely used in geotechnical engineering to enhance weak soil properties and improve load-bearing capacity.

This article will provide a complete guide on stone columns, their types, benefits, installation process, and applications.

What Is a Stone Column?

A Stone Column is a ground improvement method where vertical columns of compacted gravel or crushed stones are installed into weak soil. These columns improve soil strength, reduce settlement, and increase load-bearing capacity.

Stone columns are also known as:

• Granular piles
• Aggregate piers
• Vibro replacement columns

Purpose of Stone Columns

Stone columns are used to improve soil conditions in areas where natural soil is weak or compressible. The main purposes include:

• Increasing load-bearing capacity
• Reducing soil settlement
• Improving drainage
• Minimizing liquefaction risk during earthquakes
• Enhancing slope stability

Types of Stone Columns

1. Vibro Replacement Method

This is the most common method where a vibrating probe is used to create holes in soft soil, which are then filled with stones.

2. Vibro Displacement Method

In this method, soil is displaced laterally without removing it, and stones are inserted to form columns.

3. Rammed Stone Columns

Here, crushed stones are compacted in layers using ramming equipment, suitable for cohesive soils.

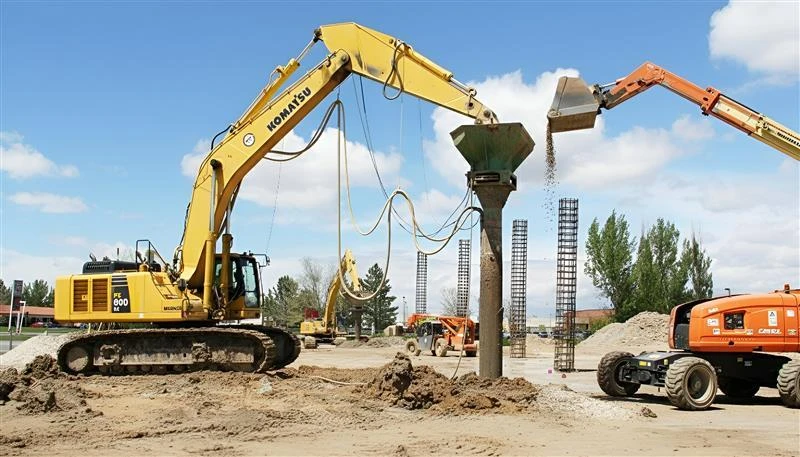

Installation Process of Stone Columns

The installation of stone columns involves the following steps:

1. Site Investigation
2. Soil testing is conducted to determine suitability.
3. Marking Locations
4. Column positions are marked as per design layout.
5. Drilling or Penetration
6. A vibroflot or drilling rig creates holes in the ground.
7. Stone Filling
8. Crushed stones or aggregates are poured into the hole.
9. Compaction
10. Stones are compacted using vibration or ramming.
11. Finishing
12. The top of the column is leveled and prepared for construction.

Advantages of Stone Columns

Stone columns offer numerous benefits in construction projects:

• Cost-effective compared to deep foundations
• Faster installation
• Eco-friendly solution
• Improves soil drainage
• Reduces risk of foundation failure
• Suitable for a wide range of soil types

Applications of Stone Columns

Stone columns are widely used in various construction projects such as:

• Road and highway construction
• Railway embankments
• Industrial buildings
• Oil storage tanks
• Airports and ports
• Residential and commercial structures

Limitations of Stone Columns

Despite their advantages, stone columns have some limitations:

• Not suitable for extremely soft soils without support
• Limited effectiveness in very loose sands
• Requires proper design and skilled execution
• May need geotextile encasement in certain conditions

Stone Column vs Pile Foundation

FeatureStone ColumnPile FoundationCostLowHighInstallation TimeFastSlowLoad CapacityModerateHighSoil ImprovementYesNoEnvironmental ImpactLowModerate

Conclusion

The Stone Column method is a highly efficient and cost-effective ground improvement technique used in modern construction. It enhances soil strength, improves drainage, and reduces settlement, making it ideal for projects on weak soils.
