Steel Base Plate: Uses, Benefits, Types, and Buying Guide

A steel base plate is a flat, strong steel component used to provide a stable connection between structural elements and their supporting surfaces. Commonly used in construction, engineering, fabrication, and industrial projects, steel base plates help distribute loads, provide structural stability, and create secure connection points.

Choosing the right base plate requires more than selecting a suitable size. Factors such as thickness, dimensions, steel grade, load requirements, hole configuration, and installation method can all affect performance. Understanding these considerations can help you select a base plate that matches your project's requirements.

What Is a Steel Base Plate?

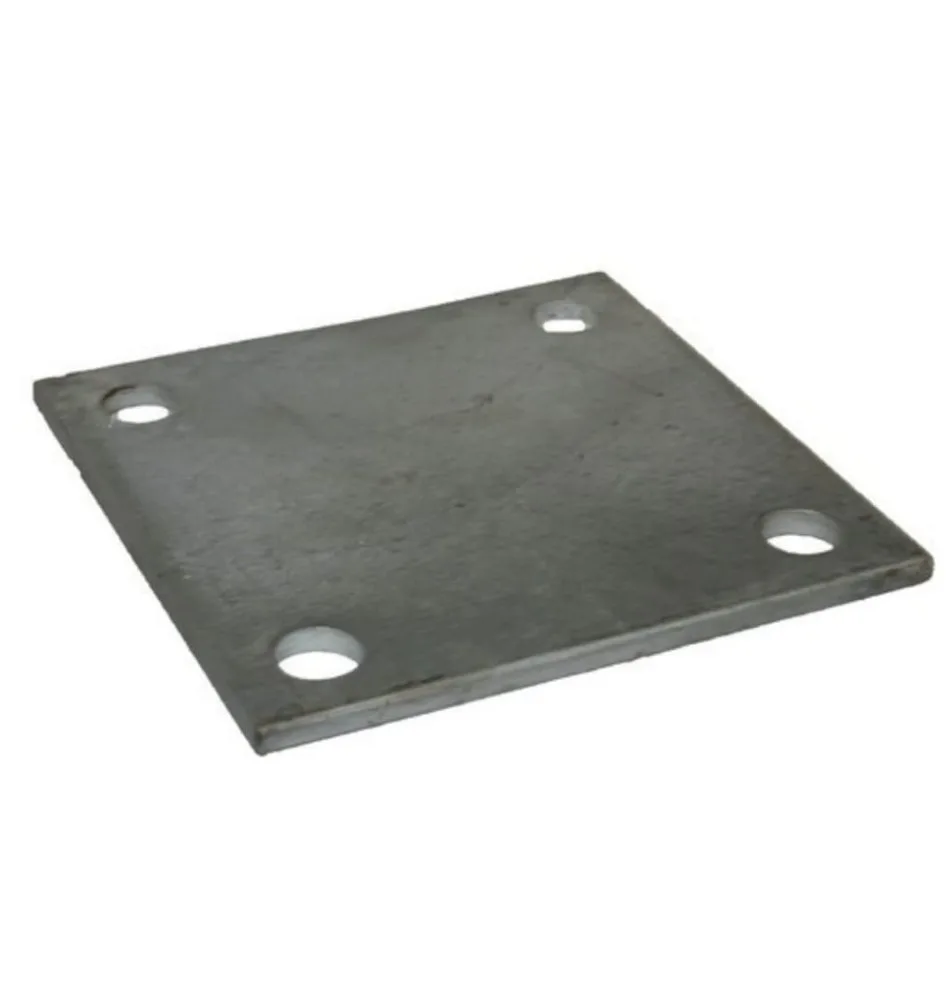

A steel base plate is typically a flat piece of steel positioned between a structural component and its foundation or supporting surface. Depending on the application, it may be installed beneath steel columns, posts, machinery, frames, or other structural components.

Base plates help transfer and distribute loads over a larger area. This can reduce concentrated pressure on the supporting surface and create a more stable connection. They can also be manufactured or fabricated with drilled holes, slots, or other features required for bolting and installation.

Because every project can have different structural requirements, base plates are available in a variety of sizes and thicknesses.

Common Uses of Steel Base Plates

Steel base plates are used in many applications across construction and industry.

Structural Columns and Posts

One of the most common applications is supporting steel columns and posts. A base plate can provide a larger contact area between the column and foundation while creating a suitable location for anchor bolts.

Steel Fabrication

Fabricators use steel base plates for frames, supports, brackets, platforms, and custom structural assemblies. Their simple flat design makes them relatively easy to cut, drill, weld, and incorporate into fabricated structures.

Machinery and Equipment

Heavy machinery and industrial equipment may require steel plates as part of their mounting or support systems. The correct plate size and thickness can help provide a stable foundation for equipment.

Construction Projects

Base plates can be used in temporary and permanent structures where steel components need to connect securely to concrete or another supporting surface. The specific design should be determined according to the project's engineering requirements.

Benefits of Steel Base Plates

A properly selected steel base plate offers several practical advantages.

Load distribution: A base plate can spread loads from a column, post, or other component over a larger supporting area.

Structural stability: It provides a solid interface between connected components and their supporting surface.

Durability: Steel can provide long-term strength when the appropriate grade, thickness, and protective treatment are selected.

Fabrication flexibility: Steel plates can be cut, drilled, welded, and customized for specific applications.

Versatility: They can be used in construction, manufacturing, engineering, machinery installation, and general fabrication.

Choosing the Right Steel Base Plate

Selecting the correct base plate depends on the requirements of the project. Start by determining the dimensions required for the connection. The plate should provide enough surface area for the intended load and connection arrangement.

Thickness is another important consideration. A plate that is too thin may not provide the required rigidity, while unnecessarily thick material can add weight and cost. Structural calculations and engineering specifications should guide thickness selection for load-bearing applications.

The steel grade should also be appropriate for the intended use. Different grades offer different combinations of strength, weldability, and other material properties.

Hole size and placement are equally important when the plate needs to be secured with anchor bolts or other fasteners. Accurate hole positioning can simplify installation and ensure compatibility with the supporting structure.

Environmental conditions should also be considered. Where steel is exposed to moisture, chemicals, or outdoor conditions, an appropriate corrosion protection method may be required.

Custom Steel Base Plates

Not every project can use a standard-size plate. Custom steel base plates can be produced to meet specific dimensions, thicknesses, hole patterns, and fabrication requirements.

Customisation can be particularly useful when working with unusual structural layouts, machinery, existing foundations, or specialised fabrication projects. Providing accurate drawings or specifications to your steel supplier can help ensure the finished plate matches the intended application.

Final Considerations

A steel base plate may be a simple component, but it can play an important role in creating a stable and reliable structural connection. The right combination of size, thickness, steel grade, hole configuration, and corrosion protection can help improve installation and long-term performance.

Before purchasing, clearly identify the project's load requirements, dimensions, connection method, and environmental conditions. For structural applications, always follow the relevant engineering specifications and seek professional advice where required.

Ezy Steel offers steel products for a range of construction, fabrication, and industrial requirements. By selecting the appropriate steel base plate for your specific application, you can achieve a practical and dependable foundation for your structural or fabricated components.
