Single-Valve vs Dual-Valve Catch Cans: Which Oil Separator Setup Makes Sense for Your Engine?

Choosing between a single-valve and dual-valve catch can is not simply about selecting the more advanced option. The right setup depends on how your engine manages crankcase pressure, where vapors flow, and how the vehicle is used.

Many drivers searching for an oil separator configuration are trying to answer a practical question: Does my engine actually need a dual-valve system, or is a single-valve catch can enough?

The answer depends on several factors, including engine design, whether the vehicle is naturally aspirated or boosted, driving conditions, and whether the system needs to manage airflow on the PCV side, CCV side, or both.

This guide explains the difference between single and dual-valve systems, when each setup makes sense, and what to consider before choosing a catch can setup for your engine.

A catch can is not designed to increase horsepower or replace factory emissions components. Its purpose is to help separate oil mist and contaminants from crankcase vapors before those vapors return to the intake system.

Understanding the airflow path is the key to choosing the right system.

What Does an Oil Separator Actually Do?

Every internal combustion engine produces some amount of blow-by. During combustion, a small amount of gases can pass the piston rings and enter the crankcase.

The factory PCV (Positive Crankcase Ventilation) system removes these gases and routes them back into the intake so they can be burned instead of released into the atmosphere.

However, crankcase vapors can contain:

• Oil mist

• Moisture

• Fuel vapor

• Combustion byproducts

Over time, these materials can contribute to deposits inside the intake system.

An air oil separator works by adding a filtration chamber between the crankcase ventilation outlet and intake system. Inside the separator, baffles, mesh, or other separation methods help oil droplets condense and collect while cleaner air continues through the ventilation system.

A catch can does not replace:

• Regular oil changes

• Proper maintenance

• A functioning PCV system

• Correct engine operation

Instead, it works as an additional method of controlling oil vapor contamination.

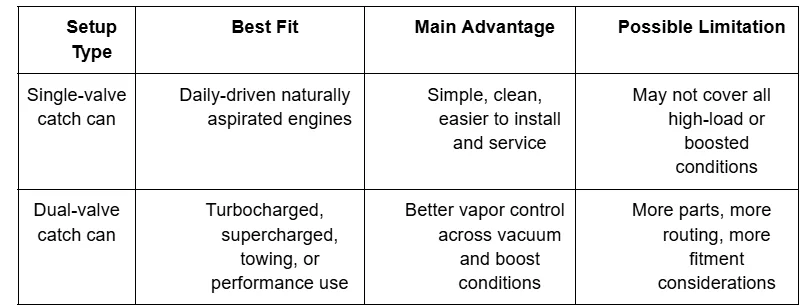

Single-Valve vs Dual-Valve Catch Cans

The main difference between single- and dual-valve systems is how many vapor paths they manage.

A single-valve catch can usually handles one primary airflow route, commonly the PCV side. A dual-valve system manages additional airflow conditions and is often used when engines experience more complex pressure changes.

Single-Valve Catch Can

A single-valve setup is generally designed for simpler applications.

It is commonly suitable for:

• Naturally aspirated engines

• Daily-driven vehicles

• Mild modifications

• Normal street use

Because the system has fewer connections and components, it is usually easier to install, inspect, and maintain.

Dual-Valve Catch Can

A dual-valve system provides additional control over crankcase ventilation paths.

It may be considered for:

• Turbocharged engines

• Supercharged engines

• High-load applications

• Performance vehicles

• Vehicles experiencing increased blow-by

Boosted engines create different pressure conditions because intake pressure can change significantly between vacuum and boost operation.

A properly designed dual-valve system can help manage these changing conditions while maintaining appropriate crankcase ventilation.

When Does a Single-Valve Oil Separator Make Sense?

A single-valve setup is often the practical choice for vehicles with straightforward PCV routing.

A vehicle-specific catch can is important because engine ventilation layouts differ between manufacturers and models. A system that works well on one engine may not provide the same results on another.

A single-valve system may make sense when:

• The engine is naturally aspirated.

• The vehicle is primarily used for commuting.

• The engine has moderate operating conditions.

• Simpler installation is preferred.

• Maintenance access is limited.

For many street-driven vehicles, controlling the main PCV vapor path provides a reasonable balance between protection and simplicity.

The goal is not to install the most complicated system. The goal is to choose a setup that matches how the engine actually operates.

When Is a Dual-Valve Oil Separator Better?

A dual-valve oil separator is generally considered for engines where crankcase pressure management becomes more challenging.

Turbocharged and supercharged engines can create higher pressure differences because the intake system may move from vacuum conditions into positive pressure during boost.

A dual-valve setup may be appropriate when:

• The engine operates under frequent boost.

• The vehicle regularly tows or carries heavy loads.

• The engine experiences aggressive driving conditions.

• Higher levels of blow-by are expected.

• More complete vapor control is required.

This is especially relevant for an oil separator for truck applications where towing, hauling, long-distance driving, and heavy engine loads can increase crankcase vapor production.

However, a dual-valve system should not automatically be considered better for every vehicle. Incorrect routing, poor installation, or incompatible components can reduce effectiveness.

PCV Side vs CCV Side Catch Can: Why the Difference Matters

One common source of confusion is the difference between PCV-side and CCV-side systems.

PCV Side

The PCV side typically manages vapors drawn from the crankcase into the intake under vacuum conditions.

A catch can installed here helps capture oil mist before those vapors enter the intake system.

CCV Side

The CCV (Crankcase Ventilation) side usually deals with crankcase gases moving through a different ventilation path.

Some engines, especially those with more complex ventilation systems, may require attention to both sides.

Understanding whether an engine needs a PCV-side catch can, CCV-side catch can, or dual setup depends on the factory ventilation design.

How Direct Injection Changes Catch Can Decisions

Direct-injection engines often receive additional attention when discussing oil vapor management.

In traditional port-injection engines, fuel passes near intake valves and can help remove some deposits.

In direct-injection engines, fuel is sprayed directly into the combustion chamber. This means the intake valves do not receive the same fuel contact.

Because of this, oil mist from crankcase ventilation can become one factor contributing to intake valve deposits over time.

For a naturally aspirated direct-injection engine, a single-valve system may be suitable depending on the ventilation layout.

For a boosted direct-injection engine, a dual-valve setup may be considered because airflow conditions are more complex.

Common Catch Can Selection Mistakes

Choosing a catch can based only on engine power or appearance can lead to poor results.

Common mistakes include:

1. Choosing a Universal System Without Checking Fitment

Different engines have different hose routing, pressure conditions, and mounting requirements.

2. Assuming a Larger System Is Always Better

A bigger reservoir does not automatically mean better separation.

3. Ignoring Maintenance Access

A difficult-to-reach catch can may not be emptied regularly.

4. Installing Without Understanding Airflow Direction

Incorrect routing can affect how the ventilation system operates.

Conclusion

Single-valve and dual-valve catch cans are designed for different engine requirements.

A single-valve setup is often a practical solution for simpler street-driven engines where the main goal is reducing oil vapor entering the intake system.

A dual-valve setup may make more sense for boosted engines, heavy-duty applications, or vehicles operating under higher crankcase pressure conditions.

The best choice is not the most complex system. It is the setup that matches the engine design, driving conditions, and ventilation requirements.

When researching an oil separator for vehicle protection, focus on compatibility, airflow management, and proper installation rather than simply choosing the most advanced configuration.

FAQs

1. Can a Single-Valve Catch Can Work on a Turbo Engine?

It depends on the engine’s ventilation design. Some turbo engines may require additional vapor management compared with naturally aspirated engines.

2. Why Does My Catch Can Collect Water Instead of Oil?

Moisture collection can occur because crankcase vapors contain water vapor, especially during short trips or colder conditions.

3. Do All Vehicles Need a Dual-Valve Catch Can?

No. The correct choice depends on engine design, operating conditions, and ventilation requirements.

4. Should a Truck Use a Different Catch Can Setup?

Many trucks operate under higher loads, so the correct oil separator for truck applications should match the engine and usage conditions.
