Sheet Metal Tooling Shapes Industrial Production

Sheet metal manufacturing involves more than cutting a flat sheet into a required shape. Manufacturers must control dimensions, bends, hole positions, and material behaviour to produce parts that fit their intended assemblies. Even small variations can affect alignment, installation, and the performance of finished products.

The right production method depends on the component design, sheet thickness, material properties, and expected output. Manufacturers often combine cutting, bending, punching, and finishing to achieve the required shape without compromising the part's functional requirements.

Exploring Cutting and Bending Operations

Cutting and bending serve different purposes in sheet metal production. Cutting removes unwanted material or separates a blank from a larger sheet. Bending changes the sheet's angle or profile while retaining its basic continuity.

Common operations include:

●     Blanking sheets into defined shapes.

●     Punching holes and slots.

●     Bending flanges and angled profiles.

●     Forming brackets, covers, and mounting plates.

●     Preparing components for assembly.

Each operation requires appropriate tooling and tight dimensional control.

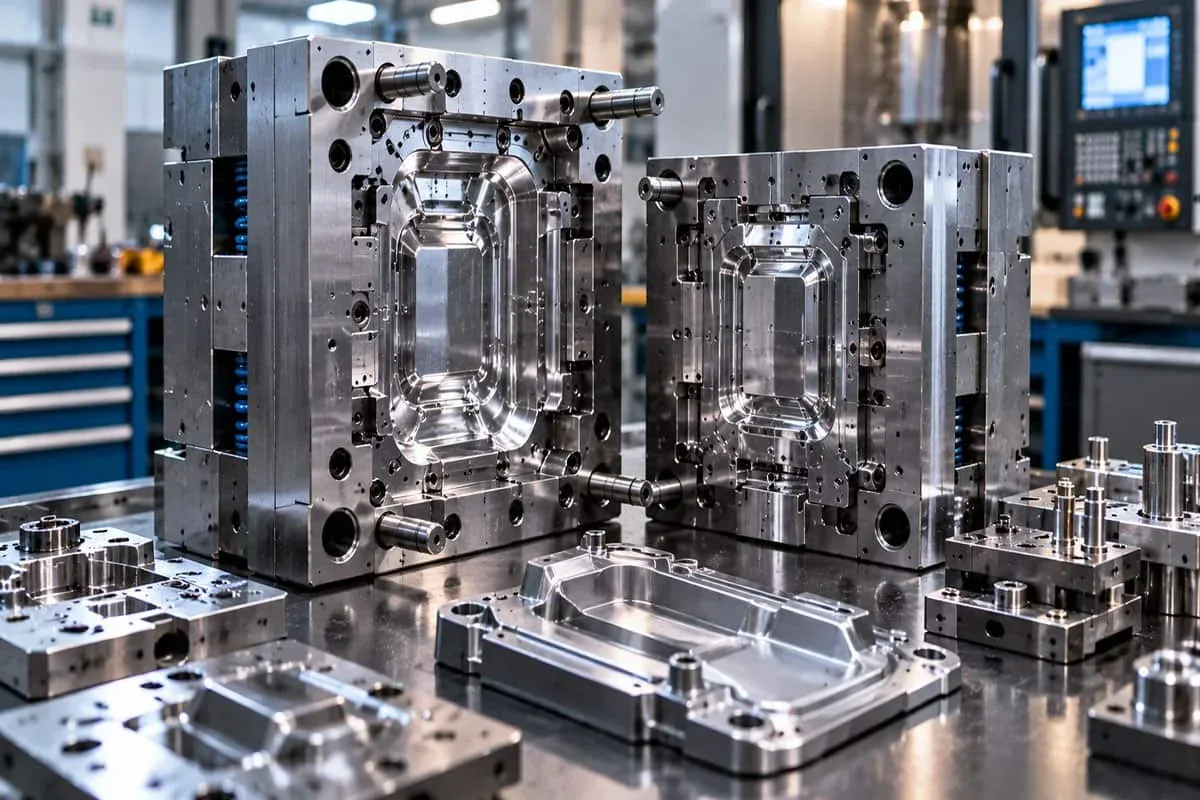

Choosing Dies for Repeatable Production

Dies guide cutting and forming operations by applying force to the workpiece in a controlled manner. Their design influences component geometry, edge quality, repeatability, and production efficiency. Manufacturers must match the die to the material and machine, not treat every application the same.

Businesses seeking Cutting and Bending Die ManufacturingRiyadh should consider the component drawing, material thickness, required tolerances, and production quantity. These details help determine the appropriate die configuration and the manufacturing processes needed to produce it.

Assessing Materials Before Tooling Design

Material selection affects how a sheet responds to cutting and bending. Different metals have different strengths, ductility, hardness, and springback characteristics. These properties influence the force required for forming and the final dimensions of the component.

Steel, stainless steel, and aluminium serve many sheet metal applications, but each requires appropriate process settings. Engineers should review the material grade and thickness before finalising die clearances, bend allowances, and tooling geometry.

Designing Components for Easier Manufacturing

A component's design can make production simpler or more difficult. Closely spaced holes, narrow flanges, sharp internal corners, and complex profiles may introduce manufacturing constraints. Reviewing these details before tooling begins can prevent unnecessary revisions.

Designers should consider practical questions:

●     Can the machine accommodate the component dimensions?

●     Will the chosen bend sequence avoid collisions?

●     Can operators position the sheet consistently?

●     Do the specified tolerances suit the intended application?

●     Can the finished part be inspected easily?

Early collaboration between designers and manufacturers helps resolve these questions before production starts.

Understanding Bend Allowance and Springback

When a sheet bends, its inner surface compresses while its outer surface stretches. The material's behaviour affects the amount of sheet required for the bend and the final dimensions of the component.

Springback occurs when the material partially returns toward its original shape after the forming force disappears. Its magnitude depends on material properties, thickness, bend geometry, and tooling conditions. Manufacturers account for these factors when planning tooling and establishing suitable forming parameters.

Planning Sheet Metal Fabrication Workflows

A typical fabrication project moves through several connected operations. Teams review drawings, prepare material, cut blanks, form required features, and inspect the resulting components. Some projects also require welding, assembly, or surface finishing.

Manufacturers offering Sheet Metal Fabrication Riyadh must consider how each stage affects the next. Accurate cutting supports proper alignment during bending, while suitable handling helps prevent scratches, distortion, and damage before assembly.

Selecting Suitable Cutting Methods

Different cutting methods suit different material thicknesses, shapes, and production requirements. Mechanical shearing works well for suitable straight cuts, while punching creates holes and repeatable profiles. Laser cutting can handle intricate shapes where the equipment and material specifications permit.

The choice depends on several factors:

●     Material type and thickness.

●     Profile complexity and edge requirements.

●     Production quantity and setup needs.

●     Available equipment and operating costs.

Manufacturers should select the process that meets the drawing requirements without adding unnecessary operations.

Managing Tooling Wear and Maintenance

Dies experience repeated contact and force during production. Over time, cutting edges may wear, forming surfaces may deteriorate, and alignment may change. These issues can produce burrs, inconsistent bends, dimensional variation, or increased scrap.

A practical maintenance programme includes regular inspection, cleaning, lubrication where specified, and timely repair. Production teams should also record recurring defects and maintenance activities. These records help identify patterns and determine when tooling needs adjustment or replacement.

Checking Dimensions Throughout Production

Inspection helps verify whether manufactured parts meet the specified requirements. Depending on the component, checks may cover dimensions, hole positions, bend angles, flatness, and edge condition.

Manufacturers can use suitable measuring tools, gauges, and inspection methods based on the drawing and acceptance criteria. They should establish clear inspection requirements before production begins, especially when components must fit other parts or assemblies.

Checking parts at appropriate stages can also reveal problems before a full production batch develops the same defect.

Coordinating Machines, Dies, and Operators

A well-designed die cannot compensate for an unsuitable machine setup or inconsistent handling. Machine capacity, tooling alignment, sheet positioning, and operating procedures all influence the finished component.

At Taj Al Khalij, sheet metal fabrication, die manufacturing, CNC machining, and related capabilities support different industrial production requirements. Coordinating these activities can help teams address tooling and component needs within the same project, depending on the technical scope.

Improving Production Efficiency Through Planning

Production efficiency depends on more than machine speed. Poorly planned setups, unclear drawings, material shortages, and repeated adjustments can disrupt schedules and increase manufacturing costs.

Teams can improve planning by confirming specifications, checking material availability, preparing tooling, and defining inspection requirements before production. They should also consider the expected batch size when selecting between simple tooling arrangements and more specialised production setups.

Clear communication between engineering, purchasing, and production teams reduces avoidable misunderstandings.

Preparing Accurate Manufacturing Quotations

A useful quotation starts with complete technical information. Manufacturers need enough detail to assess the work, select appropriate processes, and estimate the required resources.

When requesting a quotation, buyers should provide:

●     Component drawings with dimensions and tolerances.

●     Material grade and sheet thickness.

●     Required quantity and expected production frequency.

●     Finishing, assembly, or inspection requirements.

●     Relevant delivery expectations.

If a drawing leaves important details unclear, resolving those questions early helps both parties establish a realistic production scope.

Building Reliable Long-Term Manufacturing Processes

Consistent sheet metal production requires coordination between design, tooling, fabrication, and inspection. Each stage influences the next, so teams should evaluate the complete workflow rather than focusing on an individual operation alone.

Manufacturers that maintain tooling, review defects, and document production requirements can identify opportunities for improvement over time. A structured approach helps control variation, reduce avoidable waste, and produce components that meet the intended engineering specifications.
