Rotary Indexing Table Guide: How It Works & Why It Matters for Automation

Rotary Indexing Table: Everything You Need to Know Before You Buy

Introduction

Walk onto almost any modern assembly line, and somewhere in the process, a rotary indexing table is quietly doing the heavy lifting.

It doesn't get much attention, but it's often the single part that decides whether your line runs smooth or keeps jamming up.

I've watched plants swap out old linear conveyors for rotary indexing tables and immediately gain floor space plus better part accuracy. So, in this guide, let's talk plainly about what a rotary indexing table actually does, how it works, and what to check before you buy one.

What is a Rotary Indexing Table?

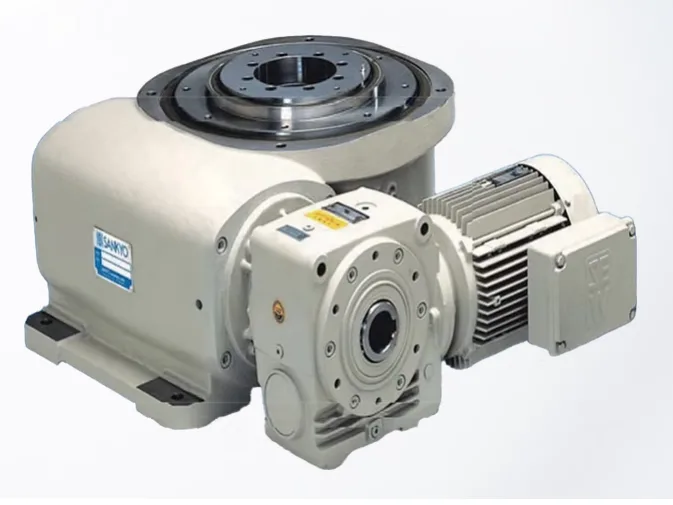

A rotary indexing table is a circular platform that rotates parts or fixtures through a series of fixed positions, stopping precisely at each one so a specific task can be completed.

Quick Answer (for featured snippets): A rotary indexing table is a mechanical or motorized platform used in automation to move workpieces between multiple stations in exact, repeatable steps, allowing several manufacturing operations to happen in a continuous cycle.

Picture a table with several "stops" arranged in a circle. At each stop, a machine does one job — drilling, gluing, testing, packing — before the table turns to the next stop. That's the whole idea, simplified.

Common places you'll find one:

• Automated welding cells
• Bottling and packaging lines
• Small-parts assembly (electronics, medical devices)
• Quality inspection stations

 Benefits of a Rotary Indexing Table

Why do engineers pick a rotary table over a straight-line setup? A few solid reasons:

Benefit

Real Impact

Space-saving design

Circular layout fits more stations in less floor space

High positioning accuracy

Reduces scrap and rework

Continuous workflow

Multiple operations happen at once, on different stations

Lower operating cost

Less energy waste compared to constant start-stop linear systems

Easy to scale

Add or remove stations without redesigning the whole line

A well-built rotary indexing table, especially one paired with a CAM indexing drive, also cuts down on vibration. Less vibration means less wear on tooling and fewer defective parts.

Practical example: In a medical device assembly cell, switching to a rotary table setup let one operator manage four stations instead of needing four separate machines and four operators — a real cost and space saver.

How Does a Rotary Indexing Table Work?

Most rotary indexing tables run on a cam indexing drive or a servo-driven system. Let's keep it simple with the cam-driven version, since it's the most common in high-speed setups.

Step-by-step:

1. A motor turns a cam continuously.
2. The cam's shape pushes a follower, which rotates the table.
3. The table dwells (stays still) at each station long enough for the task to finish.
4. Once the task is done, the cam moves the table to the next position — smoothly, without sudden jolts.

This dwell-and-move pattern is what gives a CAM rotary indexer its reputation for reliability. There's no software controlling the timing — it's built right into the mechanical shape of the cam, which means fewer things can go wrong.

Voice search answer: "How does a rotary indexing table work?" — It works by rotating a circular platform through fixed stations using a cam or servo drive, pausing at each stop long enough for an operation to complete before moving to the next station.



Why Choose Deceler?

Picking the right supplier matters just as much as picking the right mechanism.

Deceler builds rotary indexing tables and CAM indexing drives designed specifically for factories that can't afford downtime.

Here's what makes Deceler a solid choice:

• Precision engineering that holds tight tolerances even after years of continuous use
• Durable cam and bearing components built for high-speed cycles
• Custom table sizes and station layouts to fit your existing line
• Direct engineering support, from design to installation

Whether you're setting up a new packaging line or replacing a worn-out indexer, Deceler focuses on building tables that keep running, cycle after cycle, without surprises.

 Common Mistakes to Avoid

Before you invest in a rotary indexing table, watch out for these common slip-ups:

• Underestimating load weight — a table rated too low for your parts will wear out fast and lose accuracy.
• Ignoring dwell time requirements — some processes need longer pauses than others; mismatched dwell time causes bottlenecks.
• Overlooking table diameter needs — too small a table limits how many stations you can add later.
• Skipping regular lubrication — cam surfaces need proper lubrication schedules to avoid premature wear.
• Choosing based on price alone — a cheaper indexer often costs more in downtime and replacement parts over time.

Getting these details right upfront saves a lot of trouble later.

 Frequently Asked Questions

Q1: What is the difference between a rotary indexing table and a CAM rotary indexer?

A rotary indexing table is the platform that rotates parts through stations. A CAM rotary indexer is the mechanism (often built into or under the table) that controls how and when that rotation happens.

Q2: How accurate is a rotary indexing table?

Industrial rotary indexing tables typically achieve repeat positioning accuracy within a few arc-minutes, depending on the build quality and load applied.

Q3: What industries commonly use rotary indexing tables?

Automotive, electronics, packaging, pharmaceutical, and medical device industries all rely heavily on rotary indexing tables for automated, multi-station processes.

Q4: Can a rotary indexing table run at high speed?

Yes, many rotary indexing tables are designed as high-speed rotary indexers, capable of handling hundreds of cycles per hour without losing accuracy.

Q5: How many stations can a rotary indexing table have?

It depends on table diameter and application needs, but most industrial setups use anywhere from 4 to 12 stations.

Q6: What maintenance does a rotary indexing table need?

Regular lubrication, periodic inspection of the cam surface, and checking for backlash or wear in the drive mechanism keep a rotary indexing table running reliably.

Q7: Is a rotary indexing table better than a linear indexing system?

 For applications needing multiple simultaneous operations in a compact space, a rotary indexing table is usually more efficient than a linear system.

 Conclusion

A rotary indexing table isn't just another automation part — it's often the piece that determines your line's speed, accuracy, and long-term reliability.

Whether you're comparing a CAM indexing drive against a servo-based system, or just trying to figure out the right table size for your process, getting the fundamentals right matters more than chasing flashy specs.

If you want a rotary indexing table built for real production demands, not just a catalog number, Deceler is a name worth checking out before you make your final decision.
