Reliable Connections With Ultra-Compact Watertight Connectors

Modern underwater equipment is getting smaller, but its electrical connection needs are not. Sensors, compact vehicles, and subsea instruments still need dependable connections while leaving enough room for other components.

This creates a practical engineering challenge. Standard connectors can take up valuable panel space, especially inside small housings where every millimeter matters.

A smaller connector can help solve that problem, but size alone isn't enough. The connection must also handle underwater pressure, provide stable electrical performance, and suit the operating environment.

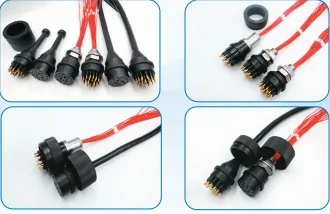

Ultra-Compact Watertight Connectors are designed for these space-limited subsea applications. HYSF's Ultra Compact Series includes configurations ranging from low-pin connections to high-density versions, allowing designers to select a connector according to available space and required electrical channels.

Why Are Compact Connectors Useful Underwater?

Subsea systems often contain several components inside a limited enclosure.

An ROV, AUV, underwater sensor, or marine instrument may need connections for power, signals, cameras, control equipment, or monitoring devices. Large connectors can make the internal layout harder to manage.

Compact connectors reduce the physical space needed for these interfaces.

HYSF describes its Ultra Compact Series as its smallest and lightest connector style, intended for miniature devices and tight installation spaces. The series uses dry-mate connections rather than underwater wet mating.

What Pin Configurations Are Available?

Different underwater systems need different numbers of electrical contacts.

The HYSF range addresses this through several configurations. Its Ultra-Compact 2–6 Pin series provides options from 2 to 6 pins, while another series covers 6, 8, 10, 12, and 16 pins.

Higher-density requirements can be handled by the 12–28 core range.

That series includes 12, 16, 20, and 28-pin versions. This variety makes it possible to accommodate more signal channels without automatically moving to a much larger connector footprint.

Why Does Pin Count Matter?

Pin count determines how many separate electrical paths can pass through a connector.

A simple device may need only a few contacts. More complex control or sensor systems may require considerably more.

The correct choice should therefore consider both electrical requirements and available mounting space.

Where Are Ultra-Compact Connectors Commonly Used?

Compact underwater connectors are particularly useful where equipment size and weight need to stay low.

HYSF identifies applications including micro-ROVs, AUVs, underwater sensors, marine instruments, compact control systems, and other space-constrained subsea equipment.

For example, a small underwater vehicle may carry cameras, sensors, control electronics, and power connections inside a very limited housing.

Using Ultra-Compact Watertight Connectors can help engineers organize those interfaces while reducing the space required around the mounting panel.

How Do These Connectors Handle Deep-Water Conditions?

Underwater connectors need more than a compact shape.

According to HYSF's specifications, its Ultra-Compact 6–16 core series is rated for hydrostatic pressures up to 60 MPa. The company also specifies an operating temperature range of -60°C to +80°C for this series.

Materials are another important consideration.

HYSF describes gold-plated copper contacts integrated within molded neoprene bodies, while receptacle options can use marine-suitable metals such as 316L stainless steel, titanium alloy, or naval brass.

What Should Engineers Know About Dry Mating?

One important point is that this Ultra Compact Series isn't designed for wet mating.

The connector should be properly connected and secured in a dry environment before the equipment is deployed underwater. Once assembled correctly, the connector system is intended to maintain its watertight performance during subsea operation.

This distinction matters during equipment design and maintenance planning.

If a project requires connectors to be repeatedly connected or disconnected while submerged, a wet-mateable connector family would be more appropriate.

Choosing a Connector for a Subsea Project

Connector selection should begin with the actual system requirements rather than physical size alone.

Engineers should consider pin count, current requirements, mounting thread, cable arrangement, pressure rating, available panel space, and whether dry or wet mating is required.

https://hysfsubsea.com develops its Ultra Compact Series for installations where conventional connector dimensions may be difficult to accommodate. Its range covers 2–28 contact configurations and includes bulkhead receptacles, cable assemblies, and protective components, giving subsea designers several options for compact electrical interfaces.

Checking technical drawings before final selection is equally important.

Even a few millimeters can affect installation when several connectors are positioned close together.

Why Does Connector Size Matter in Modern Subsea Systems?

Miniaturization is becoming increasingly relevant in underwater robotics and instrumentation.

Smaller sensors and electronics allow engineers to build lighter equipment, but oversized supporting components can limit those gains.

That's where Ultra-Compact Watertight Connectors become useful. They allow electrical interfaces to occupy less space while still addressing the sealing and pressure requirements associated with underwater systems.

Conclusion

Reliable underwater connectivity depends on matching the connector to the equipment, environment, and electrical requirements.

Compact connector designs are particularly valuable for micro-ROVs, AUVs, sensors, instruments, and other systems where panel space is limited.

When selecting Ultra-Compact Watertight Connectors, engineers should carefully review pin count, pressure requirements, electrical ratings, mounting dimensions, materials, and mating method. A properly matched connector can make a compact subsea system easier to design without overlooking the demands of underwater operation.

Frequently Asked Questions

Can Ultra-Compact Watertight Connectors Be Connected Underwater?

The HYSF Ultra Compact Series discussed here is dry-mate. The connector must be mated in a dry environment before underwater deployment.

How Many Pins Are Available?

HYSF's Ultra Compact connector range includes configurations from 2 to 28 pins across different series, including 2–6, 6–16, and 12–28 core options.

What Applications Can Use These Connectors?

They can be used in applications such as compact ROVs, AUVs, underwater sensors, marine instrumentation, and other subsea equipment where installation space is limited.
