Pressure Swing Adsorption Technology for Efficient Gas Separation

In industries where gas purity and consistency are critical, having a reliable separation method is essential. From manufacturing and healthcare to energy and environmental applications, the demand for efficient gas production continues to grow. One of the most widely used and trusted technologies in this field is Pressure Swing Adsorption.

Pressure Swing Adsorption has become a preferred solution for separating gases due to its efficiency, reliability, and ability to deliver high-purity results. It allows businesses to produce gases like nitrogen, oxygen, and hydrogen on-site, reducing dependence on external supply chains and improving operational control.

What Is Pressure Swing Adsorption

Pressure Swing Adsorption is a gas separation process that uses adsorbent materials to selectively capture specific gas molecules under pressure. By alternating between high and low pressure, the system separates gases based on their molecular characteristics.

This technology is commonly used to extract nitrogen from air, produce oxygen for medical and industrial use, and purify hydrogen in refining processes. Its ability to deliver consistent results makes it suitable for a wide range of applications.

How Pressure Swing Adsorption Works

The working principle of Pressure Swing Adsorption is based on the ability of certain materials to adsorb gases at high pressure and release them at low pressure.

1. Compression of Air or Gas

The process begins by compressing ambient air or a gas mixture. This prepares it for separation.

2. Adsorption Phase

The compressed gas passes through a vessel filled with adsorbent material, such as carbon molecular sieves or zeolites. These materials trap unwanted gases like oxygen, carbon dioxide, or moisture, while allowing the desired gas to pass through.

3. Depressurization

Once the adsorbent material becomes saturated, the pressure is reduced. This causes the trapped gases to be released from the adsorbent.

4. Regeneration

The system purges the released gases, regenerating the adsorbent material so it can be reused.

5. Continuous Cycle

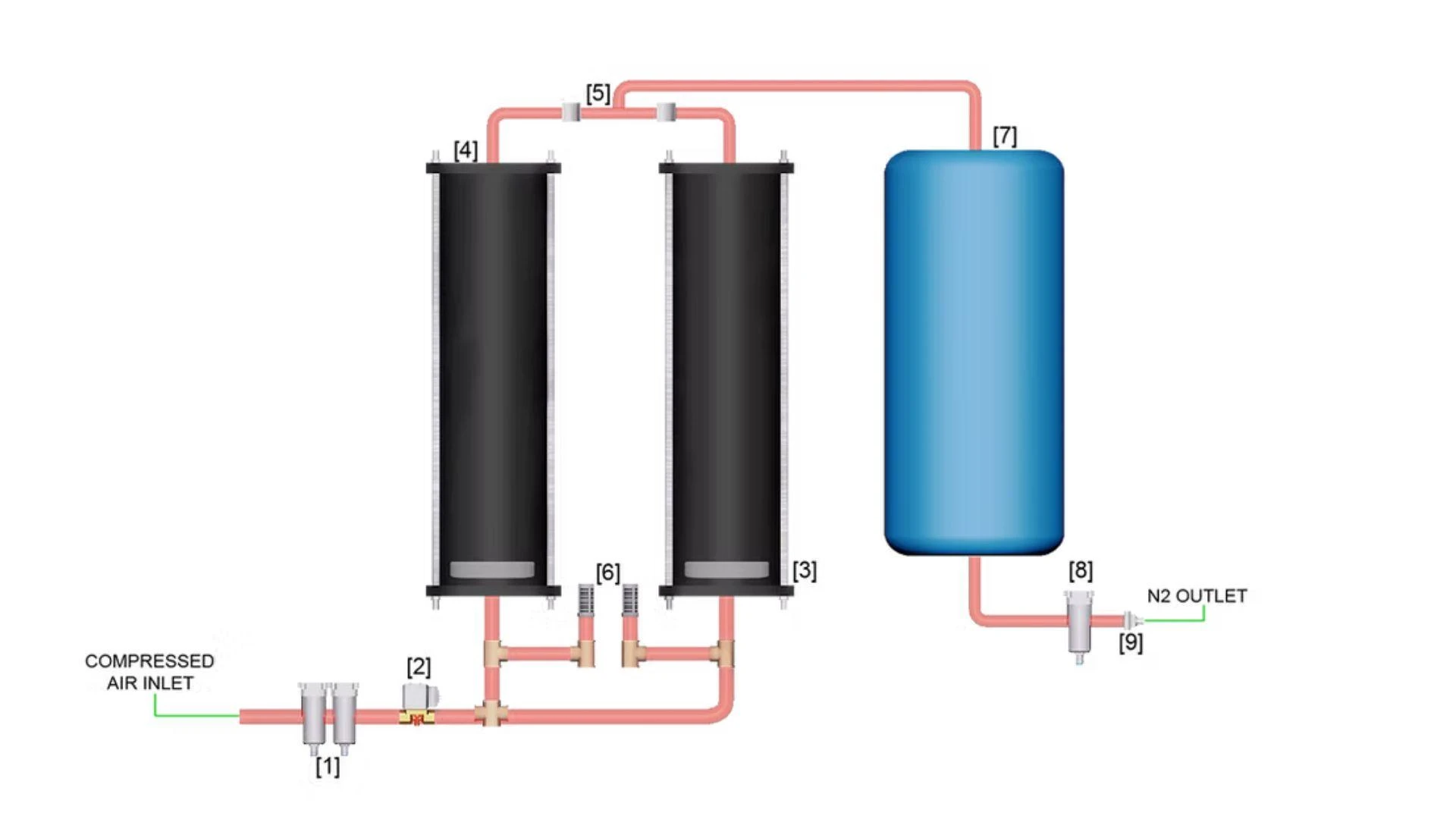

Multiple adsorption vessels are used to ensure a continuous flow of purified gas. While one vessel is in operation, another is being regenerated.

Key Advantages of Pressure Swing Adsorption

High Purity Output

Pressure Swing Adsorption systems can achieve very high levels of gas purity, making them ideal for sensitive applications.

Continuous Operation

With multiple adsorption columns, the system ensures an uninterrupted gas supply.

Cost Efficiency

By producing gas on-site, businesses can reduce costs related to transportation, storage, and supplier dependency.

Energy Efficiency

Compared to other separation methods, Pressure Swing Adsorption requires relatively low energy, especially for moderate purity levels.

Flexibility

The system can be adjusted to meet different flow rates and purity requirements, making it adaptable to various industries.

Common Applications of Pressure Swing Adsorption

Pressure Swing Adsorption is used across multiple sectors due to its versatility and reliability.

Nitrogen Generation

It is widely used in nitrogen generators to separate nitrogen from compressed air for applications like packaging, electronics, and metal processing.

Oxygen Production

Hospitals and medical facilities rely on Pressure Swing Adsorption systems to produce oxygen for patient care and emergency use.

Hydrogen Purification

In refineries and chemical plants, Pressure Swing Adsorption is used to purify hydrogen for fuel and processing applications.

Biogas Upgrading

The technology helps remove carbon dioxide and other impurities from biogas, making it suitable for energy production.

Industrial Gas Separation

Pressure Swing Adsorption is used to separate and purify gases in various manufacturing processes.

Types of Adsorbents Used in Pressure Swing Adsorption

The efficiency of Pressure Swing Adsorption depends heavily on the adsorbent materials used.

Carbon Molecular Sieves

These are commonly used for nitrogen generation. They selectively adsorb oxygen and allow nitrogen to pass through.

Zeolites

Zeolites are widely used for oxygen production due to their ability to trap nitrogen molecules.

Activated Alumina

This material is often used for removing moisture from gases before the separation process.

Pressure Swing Adsorption vs Other Gas Separation Methods

Cryogenic Distillation

Cryogenic systems can achieve extremely high purity but require significant energy and complex infrastructure. Pressure Swing Adsorption offers a simpler and more cost-effective alternative for many applications.

Membrane Separation

Membrane systems are compact and easy to use but may not achieve the same purity levels as Pressure Swing Adsorption.

Absorption Methods

Chemical absorption processes are effective but often involve higher operational costs and maintenance.

Overall, Pressure Swing Adsorption provides a balanced solution in terms of efficiency, cost, and performance.

Factors to Consider When Choosing a Pressure Swing Adsorption System

Required Gas Purity

Different applications require different purity levels. It is important to select a system that meets your specific needs.

Flow Rate

Ensure the system can handle the required volume of gas without interruptions.

Operating Environment

Consider factors such as temperature, humidity, and available space.

Maintenance Requirements

Choose a system that is easy to maintain and offers reliable performance over time.

Energy Consumption

Energy efficiency plays a key role in long-term operational costs.

Safety Considerations

Pressure Swing Adsorption systems are generally safe when properly installed and maintained. However, it is important to follow safety guidelines:

• Ensure proper ventilation to prevent gas accumulation
• Regularly inspect equipment for leaks or wear
• Train personnel on system operation and emergency procedures

By following these precautions, businesses can maintain a safe working environment.

Environmental Benefits of Pressure Swing Adsorption

Pressure Swing Adsorption supports sustainable practices by reducing reliance on transported gas supplies. On-site gas generation minimizes carbon emissions associated with delivery and storage.

Additionally, the technology produces minimal waste and uses reusable adsorbent materials, making it an environmentally friendly option for modern industries.

Future of Pressure Swing Adsorption Technology

As industries continue to demand more efficient and sustainable solutions, Pressure Swing Adsorption technology is evolving. Innovations in adsorbent materials, automation, and system design are improving performance and reducing energy consumption.

Smart monitoring systems are also being integrated, allowing real-time tracking and optimization of operations. These advancements are expected to further increase the adoption of Pressure Swing Adsorption across various sectors.

Conclusion

Pressure Swing Adsorption is a proven and efficient technology for gas separation, offering high purity, reliability, and cost savings. Its ability to produce gases on-site makes it an attractive option for industries seeking greater control and efficiency.

From nitrogen generation to hydrogen purification, Pressure Swing Adsorption continues to play a vital role in modern industrial processes. As technology advances, it will remain a key solution for meeting the growing demand for clean and reliable gas supplies.

FAQs

What Is Pressure Swing Adsorption Used For

Pressure Swing Adsorption is used to separate and purify gases such as nitrogen, oxygen, and hydrogen for industrial and medical applications.

How Does Pressure Swing Adsorption Work

It works by using adsorbent materials that capture specific gases under pressure and release them when the pressure is reduced.

What Gases Can Be Produced Using Pressure Swing Adsorption

Common gases include nitrogen, oxygen, hydrogen, and purified biogas.

Is Pressure Swing Adsorption Energy Efficient

Yes, it is generally more energy-efficient than many traditional gas separation methods, especially for moderate purity levels.

How Long Do Adsorbent Materials Last in Pressure Swing Adsorption Systems

Adsorbent materials can last several years with proper maintenance and operating conditions.
