Precision in Motion: How Custom RF Test Positioners Improve Automotive OTA Testing
Modern vehicles rely on a growing number of wireless technologies, including 5G, V2X communication, GNSS, Bluetooth, Wi-Fi, radar, and keyless entry systems. As these technologies become more advanced, accurate Over-the-Air (OTA) testing has become essential during product development and vehicle validation.
One of the most critical components in an OTA test environment is the positioning system. Custom positioners for automotive testing provide precise, repeatable movement that allows engineers to evaluate wireless performance from every angle. Whether testing antennas, sensors, or complete vehicles, high-precision RF test positioners ensure reliable and repeatable measurement results.
For applications requiring controlled horizontal rotation, custom azimuth positioners deliver smooth and accurate positioning, making them ideal for automotive OTA chambers and antenna measurement systems.
Key Takeaways
- Improve measurement accuracy with precision positioning
- Support OTA testing for connected vehicles and automotive antennas
- Custom-built for different DUT sizes and weights
- High positioning repeatability for reliable RF measurements
- Automation-ready for production and R&D environments
- Compatible with automotive OTA chambers and anechoic chambers
What Are Custom Positioners for Automotive Testing?
Custom positioners for automotive testing are engineered motion systems designed to rotate, tilt, or position vehicles, antennas, and electronic devices during RF measurements.
Unlike standard rotary tables, custom positioners are developed according to the customer's testing requirements. They can accommodate different payload capacities, movement ranges, automation requirements, and chamber configurations.
These systems enable engineers to measure wireless performance from multiple angles while maintaining exceptional positioning accuracy.
Why Positioning Accuracy Matters in RF Testing
Wireless communication performance depends heavily on antenna orientation.
Even small positioning errors can influence:
- Radiation pattern measurements
- Antenna gain calculations
- Beamforming validation
- MIMO testing
- OTA certification
- Repeatability between test cycles
High-quality RF test positioners eliminate unwanted movement, ensuring every measurement remains accurate and consistent.
The Role of Custom Azimuth Positioners

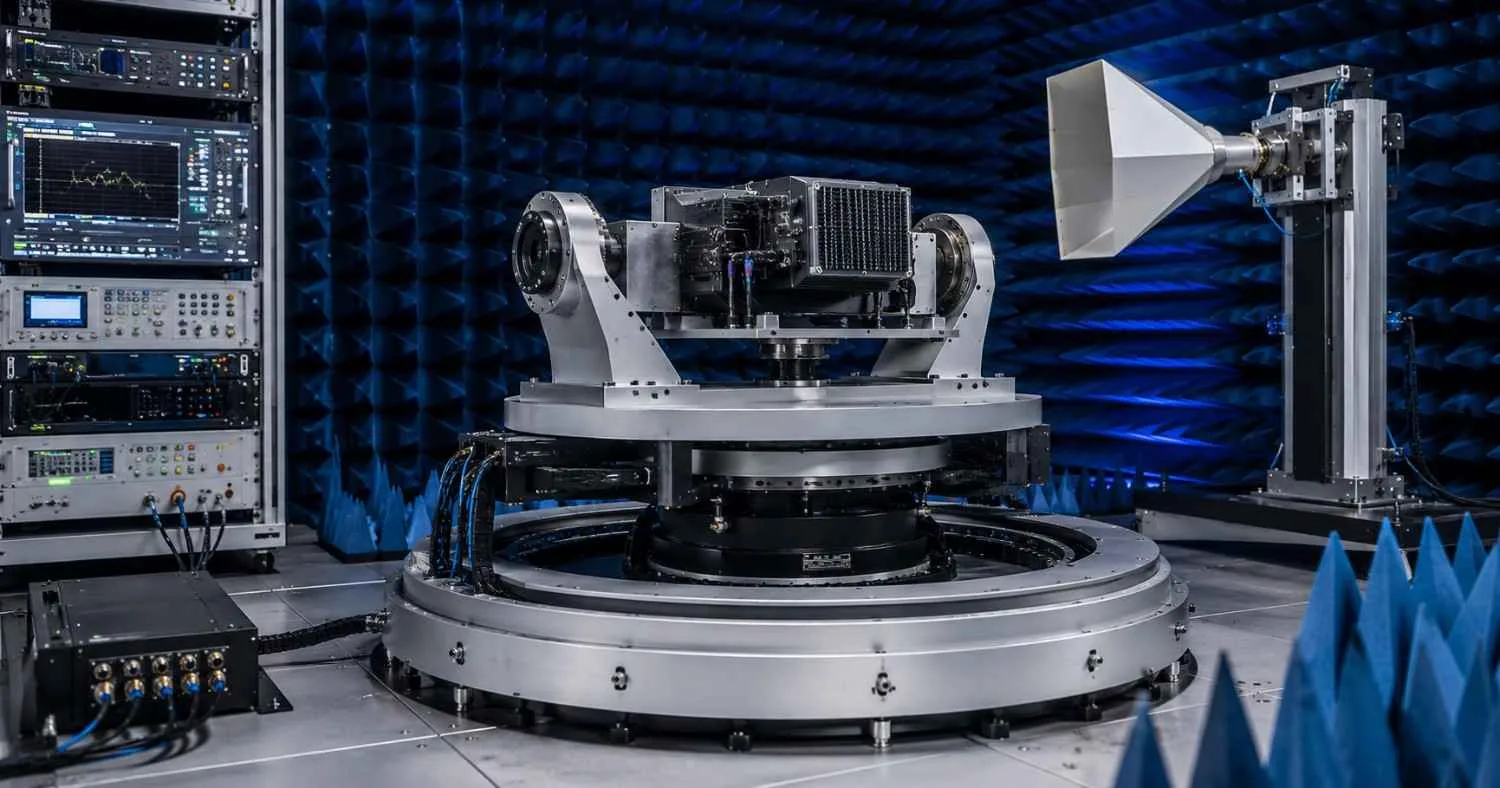

A custom azimuth positioner provides smooth 360-degree horizontal rotation during OTA testing.
It enables engineers to:
- Measure complete antenna radiation patterns
- Analyze signal strength from every direction
- Evaluate beam steering performance
- Test wireless coverage
- Validate automotive communication systems
With programmable movement and precise angle control, azimuth positioners simplify automated RF testing while reducing operator involvement.
Key Features of Modern RF Test Positioners
Modern RF test positioners are designed to support demanding wireless validation projects.
High Positioning Accuracy
Precise rotational control ensures repeatable measurements throughout the testing process.
Heavy Payload Capacity
Supports automotive components, complete vehicle subsystems, antennas, and specialized RF equipment.
Smooth Motion Control
Low-vibration movement minimizes measurement uncertainty.
Automation Integration
Supports automated test sequences using software-controlled positioning.
Flexible Configurations
Available in single-axis, dual-axis, azimuth, elevation, and fully customized designs.
Chamber Compatibility
Optimized for OTA chambers, anechoic chambers, RF shielded rooms, and wireless test laboratories.
Applications Across the Automotive Industry
Custom positioning systems support a wide range of automotive RF testing applications.
Connected Vehicles
- 5G communication testing
- V2X validation
- Telematics evaluation
Autonomous Driving
- Radar sensor testing
- Sensor fusion validation
- Vehicle communication systems
Infotainment Systems
- Wi-Fi testing
- Bluetooth performance
- GNSS antenna evaluation
Electric Vehicles
- Wireless communication modules
- Battery monitoring communication
- Remote diagnostics
Benefits of Custom Positioners for Automotive Testing
Organizations benefit from custom positioning systems by achieving:
- Greater measurement repeatability
- Higher testing efficiency
- Reduced manual intervention
- Improved automation
- Faster development cycles
- Reliable production testing
- Flexible system integration
- Long-term operational reliability
These advantages help manufacturers maintain high testing standards while reducing overall project timelines.
Why Custom Solutions Are Better Than Standard Positioners
Every automotive testing project has unique requirements.
Standard positioners often have limitations in payload capacity, movement range, chamber dimensions, or automation compatibility.
Custom solutions provide:
| Standard Positioners | Custom Positioners |
|---|---|
| Fixed specifications | Designed for your application |
| Limited payload options | Configurable heavy-duty payloads |
| Basic rotation | Multi-axis precision movement |
| Generic integration | Customized automation interfaces |
| Limited flexibility | Built around customer requirements |
Choosing the Right RF Test Positioner
When selecting an RF positioning solution, consider:
- Maximum payload
- Positioning accuracy
- Angular resolution
- Rotation speed
- Chamber dimensions
- Automation compatibility
- Future scalability
- Maintenance requirements
Choosing the right system helps ensure long-term performance and testing efficiency.
Why Choose Orbis Systems?
At Orbis Systems, we design and manufacture advanced custom positioners for automotive testing that meet the demanding requirements of modern wireless validation. Our solutions include precision custom azimuth positioners and high-performance RF test positioners engineered for OTA chambers, anechoic chambers, and RF shielded environments.
Our positioning systems are fully customizable to match payload, chamber size, movement requirements, and automation needs, helping manufacturers achieve accurate, repeatable, and future-ready RF testing.
Explore our Custom Positioners solutions: https://www.orbissystems.eu/solutions/custom-positioners
Frequently Asked Questions
What Are Custom Positioners for Automotive Testing?
They are precision motion systems designed to rotate and position vehicles, antennas, and electronic devices during RF and OTA testing.
What Is a Custom Azimuth Positioner?
A custom azimuth positioner provides precise horizontal rotation, allowing engineers to measure antenna performance from every direction.
Where Are RF Test Positioners Used?
RF test positioners are commonly used in OTA chambers, anechoic chambers, automotive testing facilities, aerospace laboratories, and wireless product development centers.
Why Is Positioning Accuracy Important?
Accurate positioning ensures repeatable RF measurements, reliable antenna characterization, and consistent OTA testing results.
Can Custom Positioners Be Automated?
Yes. Modern RF test positioners integrate with automated testing software, enabling programmable movement and repeatable testing workflows.
