Complete Guide to Pipe Schedule Charts: Structure, Importance & Limitations

Pipe Schedule Charts: Dimensions, Thickness, and Pressure Ratings Demystified

A pipe schedule chart is a crucial reference in piping design and engineering, offering detailed information about pipe dimensions, wall thickness, and pressure-handling capabilities. It is extensively utilized in industries like oil and gas, chemical processing, water treatment, and construction. This chart aids engineers, designers, and technicians in selecting the right pipe for specific applications, ensuring safety, efficiency, and adherence to industry standards. A solid understanding of pipe schedule charts is essential for anyone working with piping systems, as it directly influences the system's performance and durability.

What Is a Pipe Schedule?

The term "pipe schedule" refers to a standardized system that defines the wall thickness of pipes. It is represented by numbers such as Schedule 40, Schedule 80, or Schedule 160. These numbers are not random but are derived from the internal pressure a pipe can handle and its allowable stress. Higher schedule numbers indicate thicker walls, which are capable of withstanding greater pressure. A pipe schedule chart organizes this data systematically, enabling users to quickly identify a pipe's dimensions and properties based on its nominal size and schedule.

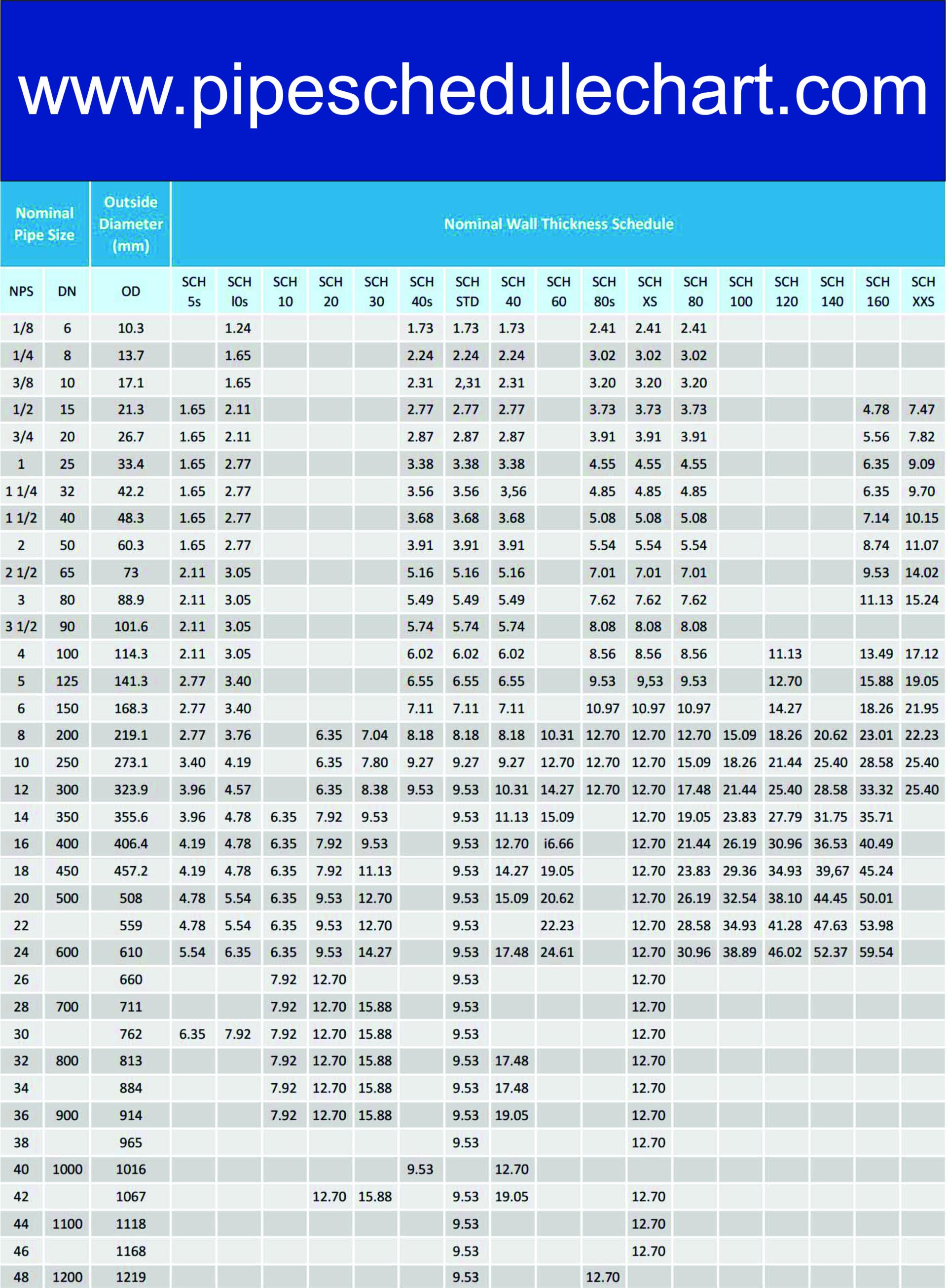

Structure of a Pipe Schedule Chart

A standard pipe schedule chart typically includes the following key data columns:

Nominal Pipe Size (NPS): This is the standardized size designation for pipes, expressed in inches. It serves as a reference point rather than an exact measurement. For instance, a pipe with an NPS of 2 inches does not necessarily have an outer diameter of exactly 2 inches.

Outside Diameter (OD): The outer diameter remains constant for a given NPS, regardless of the schedule. This standardization ensures compatibility with fittings and flanges.

Wall Thickness: The wall thickness varies with the schedule. Thicker walls provide greater strength and pressure resistance, but also increase the pipe's weight and cost.

Inside Diameter (ID): The inner diameter is calculated by subtracting twice the wall thickness from the outer diameter. It determines the pipe's flow capacity.

Weight per Foot: This indicates the pipe's weight per unit length, which is critical for structural calculations and transportation.

Pressure Rating: Some charts also include the maximum pressure a pipe can handle, which depends on the material and wall thickness.

Why Pipe Schedule Charts Are Important?

Material Selection: Different applications demand pipes with varying levels of strength and durability. The chart helps engineers choose the right material and schedule based on operating conditions like pressure and temperature.

Cost Optimization: Selecting the appropriate schedule prevents over-specification, reducing material costs without compromising safety.

Standards Compliance: Pipe schedule charts are based on industry standards such as ASME (American Society of Mechanical Engineers) and ASTM (American Society for Testing and Materials), ensuring regulatory compliance.

Interchangeability: Standardized dimensions allow for compatibility between pipes and fittings from different manufacturers, simplifying procurement and installation.

Safety Assurance: Properly selected pipe schedules ensure that the system can handle the intended operating conditions, reducing the risk of failures or accidents.

Applications of Pipe Schedule Charts

Pipe schedule charts are widely used across various industries, including:

Oil and Gas: High-pressure pipelines often require thick-walled pipes, such as those with Schedule 80 or 160.

Water Supply Systems: Lower-pressure systems, like municipal water supplies, typically use Schedule 40 pipes.

Chemical Processing: Corrosive fluids may necessitate pipes made from specialized materials with specific schedules to ensure longevity.

HVAC Systems: Heating, ventilation, and air conditioning systems use pipes with schedules suited to the temperature and pressure of the circulating fluids.

Limitations of Pipe Schedule Charts

Although pipe schedule charts are invaluable, they do have some limitations:

Material-Specific Considerations: Most charts are based on carbon steel pipes. For other materials, such as stainless steel or PVC, additional factors must be considered.

Temperature Variations: A pipe's pressure rating can change with temperature, which may not always be reflected in the chart.

Custom Sizes: Non-standard or custom-sized pipes may not be included in the chart, requiring additional calculations.

Pipe schedule charts are indispensable tools for designing and maintaining piping systems. They provide a standardized framework for determining pipe dimensions, wall thickness, and pressure capacity, ensuring the right pipe is chosen for each application. By effectively utilizing these charts, engineers can enhance the safety, performance, and cost-efficiency of piping systems across various industries. Whether for high-pressure oil pipelines or low-pressure water supply systems, pipe schedule charts remain a cornerstone of piping engineering.
