Pallet Shuttle System: A High-Density Solution for Automated Warehouse Storage

A pallet shuttle system is an advanced warehouse storage solution designed to increase pallet capacity, improve storage efficiency, and reduce the amount of manual equipment required for moving inventory. By combining deep-lane racking with automated, battery-powered shuttles, these systems allow warehouses to store more pallets in less space while maintaining efficient loading and retrieval operations.

Pallet shuttle systems are particularly useful for high-volume inventory and facilities where maximizing storage density is a priority. Instead of requiring forklifts to travel deep into storage lanes, the shuttle handles pallet movement along dedicated rails. This reduces forklift travel, minimizes unnecessary handling, and creates opportunities for faster and more consistent warehouse operations.

What Is a Pallet Shuttle System?

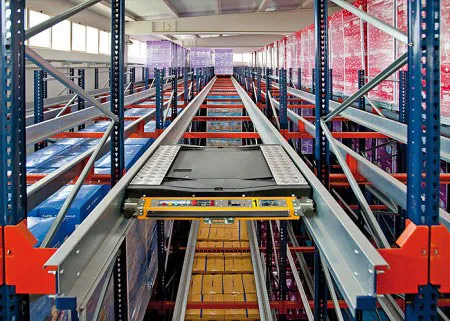

A pallet shuttle system uses powered shuttle vehicles that travel along rails installed inside deep storage lanes. The shuttles move pallets into available storage positions and retrieve them when inventory is needed. Depending on the system configuration, pallet shuttles can support either semi-automated or fully automated warehouse operations.

The system is typically installed within multi-level pallet racking, allowing warehouses to take advantage of both horizontal and vertical space. Because forklifts do not need to enter each storage lane to position pallets, storage lanes can be much deeper than conventional pallet rack configurations.

This creates a high-density storage environment that can significantly increase the number of pallet positions available within a given warehouse footprint.

How a Pallet Shuttle System Works

The basic operation of a pallet shuttle system begins when a forklift delivers a pallet to the entrance of a designated storage lane. The pallet is then positioned on the shuttle, which travels along its rails to the appropriate storage location.

In a semi-automated configuration, an operator uses a remote control to command the shuttle. The shuttle moves the pallet into the lane, deposits it in the designated position, and returns to the aisle face or remains available for another movement depending on the system design.

When a pallet needs to be retrieved, the shuttle moves to the appropriate position, collects the pallet, and brings it back toward the aisle for forklift removal.

Sensors and control systems can help the shuttle identify pallet positions and maintain efficient spacing. This minimizes empty gaps within storage lanes and helps the facility make better use of its available capacity.

High-Density Storage With Less Aisle Space

One of the primary advantages of a pallet shuttle system is its ability to eliminate many of the forklift aisles associated with conventional pallet racking. Traditional selective racking requires substantial aisle space because forklifts must enter each row to access individual pallet positions.

Deep-lane shuttle storage takes a different approach. The shuttle moves pallets within the rack while forklifts remain primarily in the operating aisle. This allows more of the warehouse footprint to be dedicated to actual storage.

The system can also make better use of vertical space because less clearance is needed between storage levels than with some conventional high-density systems. When combined with multiple rack levels, this can substantially increase pallet capacity without expanding the building.

2-Way Pallet Shuttle Systems

A 2-way pallet shuttle system is a semi-automated option designed for warehouses that need increased storage density without making a major investment in full automation. The shuttle travels forward and backward within a designated storage lane, moving pallets between the aisle face and their assigned positions.

Forklifts still play an important role in the operation by delivering pallets to the shuttle and removing retrieved pallets. However, operators no longer need to drive into the storage lane to position inventory.

Depending on the warehouse configuration and inventory requirements, a 2-way shuttle can support either FIFO or LIFO inventory rotation. This flexibility makes it suitable for different types of high-volume storage applications.

Another benefit is that one controller can operate multiple shuttles, allowing operators to manage several storage movements efficiently.

4-Way Pallet Shuttle Systems

A 4-way pallet shuttle system takes automation and flexibility a step further. Instead of being restricted to forward and backward movement within a single lane, the shuttle can travel in multiple directions, including forward, reverse, across aisles, and vertically through the storage system.

This multidirectional movement allows the system to serve multiple storage lanes and levels with less manual intervention. Lifts can transfer shuttles and pallets between rack levels, while automated conveyors can move retrieved pallets to other areas of the warehouse.

The result is a highly automated storage and retrieval environment that can support demanding throughput requirements and a diverse range of high-volume SKUs.

Reducing Labor and Forklift Dependence

A pallet shuttle system can reduce the amount of forklift travel required during pallet storage and retrieval. Instead of having operators repeatedly drive into deep storage lanes, forklifts can deliver pallets to the appropriate loading point while the shuttle handles movement within the rack.

Reducing forklift travel can improve operational efficiency while also decreasing the time spent on repetitive storage activities. In highly active warehouses, this can contribute to lower labor requirements and better equipment utilization.

Automated movement can also create a more consistent workflow because pallet positioning is controlled by the shuttle system rather than relying entirely on manual forklift operation.

Supporting FIFO and LIFO Inventory

Inventory rotation is another important consideration when selecting a pallet shuttle system. Depending on the configuration, these systems can support both FIFO and LIFO storage strategies.

FIFO is useful when products need to be rotated according to arrival date, production date, or expiration. LIFO can be appropriate for products where strict chronological rotation is not required and where deep-lane storage density is more important.

The ability to configure storage around different inventory strategies gives pallet shuttle systems flexibility across manufacturing, distribution, cold storage, and other high-volume applications.

Integrating Automation and Warehouse Software

Modern pallet shuttle systems can operate as standalone solutions or be integrated with warehouse management and automation software. More advanced installations may use Warehouse Execution Systems and Warehouse Control Systems to coordinate shuttle movements, lifts, conveyors, and inventory activity.

Software integration can improve inventory tracking and provide greater visibility into storage and retrieval operations. Automated commands can help coordinate multiple movements while reducing the need for manual intervention.

This becomes especially valuable in facilities handling multiple high-volume SKUs or operating continuously throughout the day.

Pallet Shuttle Systems for Cold Storage

High-density storage is particularly valuable in refrigerated and freezer environments, where warehouse space can be expensive to operate. By reducing aisle requirements and maximizing vertical storage, pallet shuttle systems can help businesses make better use of temperature-controlled space.

Fewer aisles mean more of the facility can be dedicated to inventory rather than equipment travel. Reducing forklift activity within the storage area can also support more streamlined workflows in demanding cold-storage environments.

When Should You Consider a Pallet Shuttle System?

A pallet shuttle system can be a strong option for warehouses with high-volume inventory, multiple pallets per SKU, limited floor space, or a need to increase storage capacity without expanding the facility.

It is especially useful when storage density and throughput are more important than having every individual pallet directly accessible at all times. Facilities with changing inventory demands can also benefit from the scalable nature of shuttle-based storage.

Before selecting a system, businesses should evaluate pallet dimensions and weights, SKU profiles, inventory rotation requirements, ceiling height, rack configuration, forklift capabilities, throughput expectations, and future growth plans.

Maximizing Warehouse Capacity With Automation

A pallet shuttle system combines high-density storage with automated pallet movement to create a more efficient approach to warehouse operations. By replacing many conventional forklift movements with powered shuttle technology, businesses can reduce aisle space, increase pallet positions, improve throughput, and make better use of vertical storage.

Whether using a semi-automated 2-way configuration or a fully automated 4-way system, pallet shuttle technology provides a scalable way to modernize warehouse storage. For operations handling large volumes of palletized inventory, it can provide the storage density and operational efficiency needed to support growing demands while making better use of existing warehouse space.
