Medical Gas Pipeline System: MGPS Full Form and Benefits

Modern hospitals rely on a dependable medical infrastructure to deliver safe and effective patient care. One of the most important systems is the Medical Gas Pipeline System. It provides the required medical gases to the designated clinical areas. Understanding the full form of MGPS, its components and its applications assist healthcare facilities in taking informed decisions on hospital infrastructure and patient safety.

For hospitals, nursing homes and healthcare centres, a well-designed medical gas pipeline system supports the continuous availability of essential gases where they are needed.

MGPS Full Form in Medical Field

MGPS full form is the Medical Gas Pipeline System. It is a specialised network for the distribution of medical gases from centralised supply to designated outlets throughout the healthcare facility.

An MGPS can provide medical oxygen, medical air, nitrous oxide and other gases for clinical use as required by the hospital. Medical gas infrastructure is also commonly supplemented with vacuum systems, which are employed to help remove fluids and secretions during medical procedures.

As opposed to individual portable gas cylinders, a centralised pipeline system offers a systematic approach to the delivery of gases to operating theatres, intensive care units (ICUs), emergency departments and patient rooms.

Components of Medical Gas Pipeline System

A medical gas pipeline system is made up of a number of interconnected components working together to provide a reliable supply.

1. Source of central gas supply

The source of supply may be oxygen cylinders, liquid oxygen storage systems, medical air compressors, or other equipment appropriate for the gas and facility requirements.

2. Network of Pipelines

Gases travel from their source to individual clinical areas in dedicated pipelines. Materials, methods of installation and identification markings shall be in accordance with applicable standards.

3. Valve Boxes for Zones

Zone valve boxes enable authorised personnel to shut off gas to a certain section of the hospital if maintenance or an emergency situation calls for it.

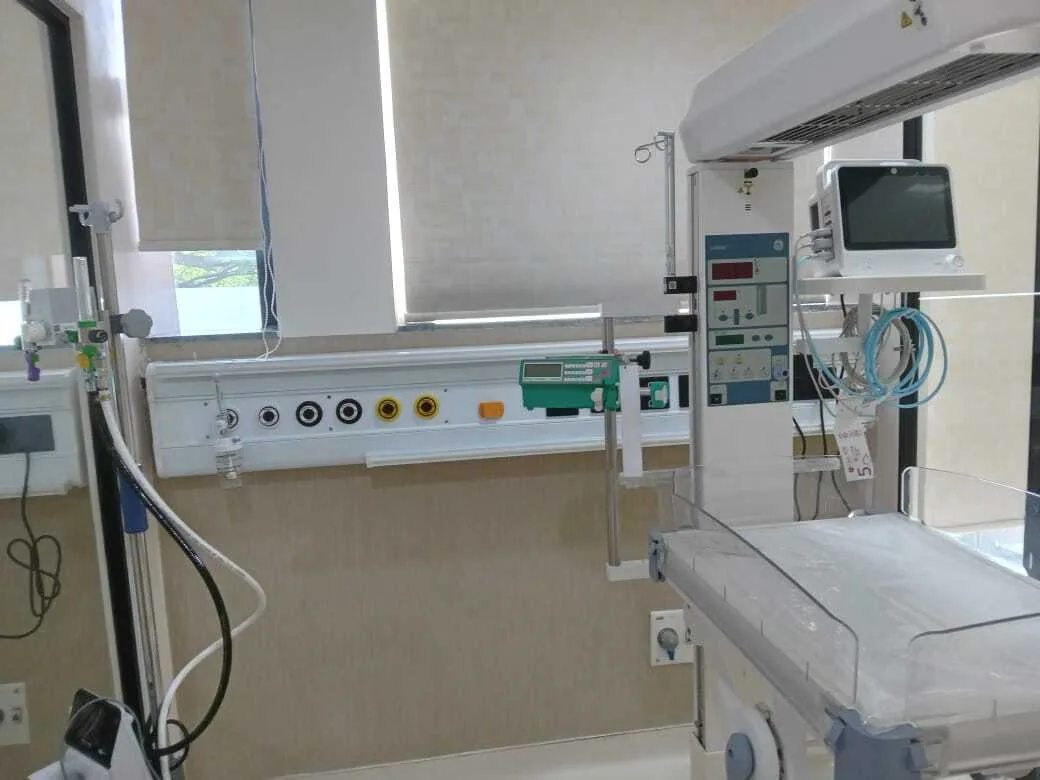

4. Medical Gas Outlets

Terminal outlets offer connection points for compatible medical equipment. Outlets are made for specific gases, to prevent wrong connections.

5. Alarm and Surveillance Systems

Medical gas alarms monitor the relevant supply conditions and alert staff to problems such as abnormal pressure or failure of supply. Their configuration depending on the system design and applicable requirements.

Significance of MGPS in Hospitals

Reliable medical gas pipeline system is essential for the provision of a wide range of clinical activities.

Continuous Gas Availability

A well-designed and well-maintained MGPS provides critical gases to identified patient care areas supporting procedures that require a reliable supply.

Increased Operational Efficiency

Centralised gas distribution eliminates the need to move individual cylinders around the hospital for routine supply needs, although backup cylinders may still be required.

Greater Safety

Appropriate pressure regulation, gas specific outlets, alarms, isolation valves and regular maintenance minimise operational risks.

Critical Care Support

Operating theatres, ICUs, emergency departments and recovery rooms often have problems with reliable access to medical gases. These clinical requirements are supported by an appropriately configured MGPS.

Uses of a Medical Gas Pipeline System

Medical gas pipeline systems are usually found in Operation theatres: Supporting anaesthetic and surgical practices.

- Intensive care units: Access to medical oxygen and other required services.

- Emergency rooms: Enabling urgent care and resuscitation.

- Patient wards: Gases through dedicated bedside outlets.

- Recovery rooms: For post-operative observation and recovery assistance.-Diagnostic and treatment areas:

Where appropriate, meeting particular clinical gas needs.

The precise gases and services needed will depend on the department and its clinical activities.

Key Considerations in Selection of an MGPS

The choice of a medical gas piping system calls for careful consideration. Hospitals need to look at their gas demand, pipeline capacity, future expansion plans, backup supply arrangements, alarm requirements and maintenance accessibility.

Installation, testing, commissioning and continuing inspection shall be carried out by competent persons in accordance with applicable healthcare regulations and recognised standards, e.g. the relevant parts of ISO 7396-1 where applicable.

Gaddiel Industries Pvt. Ltd. can be considered for hospital infrastructure solutions. Healthcare facilities should verify the company’s relevant products and services, technical capabilities, certifications, and installation support prior to selecting a specific MGPS product or service.

Conclusion

MGPS full form Medical Gas Pipeline System is a dedicated infrastructure that delivers critical medical gases in healthcare establishments. A well designed system supports clinical operations, operational efficiency and patient safety from operating theatres to intensive care units.
