Inside the Manufacturing Process: How Double Block and Bleed Valve Manufacturers Build Reliable Isolation

The reliability of a DBB valve is determined long before it reaches a customer's site — it is built into material selection, casting or forging practice, machining tolerances, and quality control decisions made on the shop floor. Understanding how leading double block and bleed valve manufacturers actually produce these valves helps buyers evaluate quality beyond what a datasheet alone can convey.

Material Selection and Procurement

Manufacturing begins with body, bonnet, ball, and trim material selection matched to the intended service. Carbon steel (ASTM A105, A216 WCB), low-temperature carbon steel (A350 LF2), and stainless or duplex alloys (A182 F304/F316, F51, F53) each carry distinct pressure-temperature capabilities under ASME B16.34 and distinct corrosion resistance profiles. Reputable double block and bleed valve manufacturers procure raw material against certified mill test reports and re-verify chemical composition and mechanical properties before releasing material to production, particularly for sour service orders requiring NACE MR0175 compliant hardness limits.

Body Construction: One-Piece, Two-Piece, and Three-Piece Designs

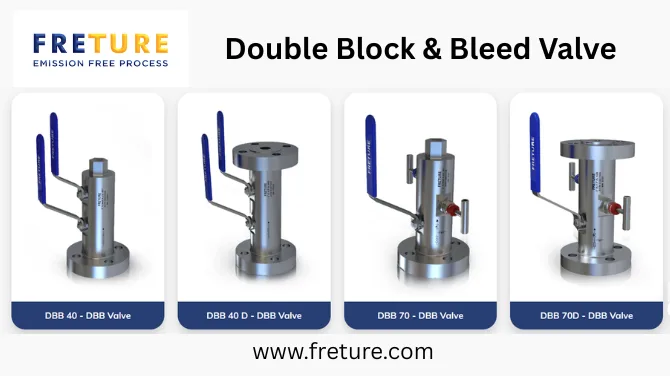

DBB valve bodies are produced in one-piece, two-piece, or three-piece configurations depending on size, pressure class, and maintenance philosophy. One-piece bodies, common in EEMUA 182 compliant integral manifolds, offer a compact, leak-path-minimized design well suited to instrument and sampling applications. Three-piece bodies, more typical in larger trunnion-mounted process isolation valves, allow the center section to be removed for in-line seat and seal maintenance without disturbing the end connections to adjoining pipework — an important consideration for plants planning long-term maintainability.

Precision Machining of Sealing Surfaces

The performance of any DBB valve hinges on the geometric precision of its two independent sealing surfaces. Ball and seat machining tolerances, surface finish, and sphericity directly determine whether each seat can independently achieve zero-leakage shutoff under API 598 test conditions. Manufacturers running CNC-controlled machining centers with in-process dimensional verification produce more consistent sealing performance than shops relying on manual finishing operations, particularly at higher pressure classes where seat loading is more demanding.

Trim Design and Seat Material Selection

Seat material selection — PTFE, PEEK, Devlon, or metal-to-metal seating — depends on service temperature, pressure, and the presence of abrasive or erosive media. Metal-seated trims with hardfacing overlays such as Stellite are specified for high-temperature or particulate-laden service where soft-seated designs would degrade prematurely. Double block and bleed valve manufacturers offering multiple trim options, rather than a single default seat material, can better match valve selection to actual process conditions across a plant's varied tie-in points.

Assembly, Stem Sealing, and Cavity Relief

Because the cavity between the two isolating seats is central to DBB function, assembly precision around the bleed port and cavity relief mechanism matters as much as the seats themselves. Over-pressure protection on the ball cavity — preventing thermal expansion of trapped fluid from damaging seats or the body — is a design detail that should be verified during assembly, not left to field discovery. Blowout-proof stem design, preventing stem ejection under pressure, is another non-negotiable safety feature in a properly assembled valve.

Quality Control and Non-Destructive Testing

Before any valve leaves the shop, quality control should include dimensional inspection against approved drawings, radiographic or ultrasonic testing of castings and welds, dye penetrant inspection of machined sealing surfaces, and independent hydrostatic shell and pneumatic seat testing per API 598. Documented, batch-traceable NDT records — not spot checks — are what allow an operator to trust a valve's performance over its full service life.

Final Inspection and Documentation Handover

The manufacturing process concludes with final dimensional and functional inspection, marking per applicable standards, and compilation of the complete documentation package: material certificates, test reports, and compliance statements against EEMUA 182, API 6D, and other applicable specifications, ready for the customer's own incoming inspection.
