Injector Control Pressure Sensor Guide for 7.3 Powerstroke

Introduction

The Ford 7.3L Powerstroke has earned a reputation for reliability, longevity, and impressive towing capability. However, like any diesel engine, it relies on several critical components working together to deliver dependable performance. One of the most important is the icp sensor 7.3, which plays a vital role in the engine's fuel injection system.

When this sensor begins to fail, you may notice hard starts, poor throttle response, or inconsistent engine performance. Understanding how it works, recognizing early warning signs, and knowing when to replace it can help prevent more expensive repairs down the road.

This guide explains everything you need to know about the Injector Control Pressure (ICP) sensor, including its function, location, diagnosis, replacement process, and maintenance tips.

What Does the Injector Control Pressure Sensor Do?

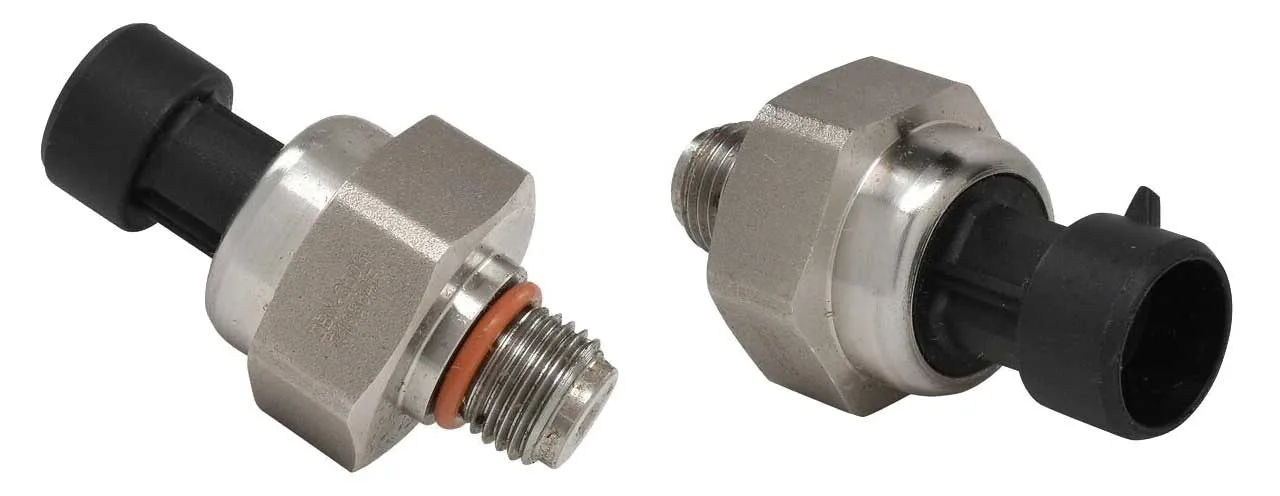

The icp sensor 7.3 powerstroke monitors the high-pressure oil system used by the HEUI (Hydraulic Electronic Unit Injector) fuel injection system. Instead of relying solely on fuel pressure, the injectors use high-pressure engine oil to activate fuel injection.

The ICP sensor constantly measures oil pressure and sends that information to the Powertrain Control Module (PCM). The PCM then adjusts the Injection Pressure Regulator (IPR) valve to maintain the correct oil pressure for different driving conditions.

This real-time communication helps the engine:

• Deliver smooth fuel injection
• Improve cold-start performance
• Maintain consistent engine power
• Reduce unnecessary fuel consumption
• Support cleaner combustion

If the sensor provides incorrect readings, the PCM cannot properly control injection pressure, which can significantly affect engine operation.

Where Is the ICP Sensor Located on a 7.3 Powerstroke?

Knowing the 7.3 icp sensor location can save time when diagnosing or replacing the component.

On most 1999.5–2003 Ford 7.3L Powerstroke engines, the ICP sensor is threaded into the driver's side cylinder head near the front of the engine. It sits close to the high-pressure oil rail and can typically be accessed after removing a few surrounding components.

Earlier model years may have slight differences in placement, but the sensor remains connected directly to the high-pressure oil system.

Before working on the sensor:

• Allow the engine to cool completely.
• Disconnect the negative battery cable.
• Clean the surrounding area to prevent dirt from entering the oil system.
• Inspect the electrical connector for oil contamination or damaged wiring.

A clean working area helps ensure an accurate installation and prevents unnecessary issues afterward.

Common Symptoms of a Failing ICP Sensor

A failing sensor often gives several warning signs before it completely stops working. Paying attention to these symptoms can help you address the problem early.

Some of the most common 7.3 icp sensor symptoms include:

• Hard starting, especially when the engine is warm
• Rough or unstable idle
• Engine hesitation during acceleration
• Reduced engine power
• Poor throttle response
• Increased fuel consumption
• Check Engine Light illumination
• Sudden engine stalling in some cases

Sometimes these symptoms may also point to issues with the Injection Pressure Regulator, wiring, or high-pressure oil leaks. Because several components work together, proper diagnosis is always recommended before replacing parts.

How to Diagnose a Bad ICP Sensor

Diagnosing an ICP sensor involves more than simply replacing it based on symptoms. A systematic inspection helps identify the true cause of the problem.

Begin with a visual inspection by checking:

• Oil contamination inside the electrical connector
• Broken or corroded wiring
• Loose electrical connections
• External oil leaks around the sensor

Next, connect a diagnostic scan tool to monitor live ICP pressure readings. Compare the actual readings with the desired pressure commanded by the PCM.

You should also:

• Read any stored diagnostic trouble codes (DTCs)
• Inspect the Injection Pressure Regulator (IPR)
• Check for high-pressure oil leaks
• Verify proper engine oil level and condition

If pressure readings are inaccurate or fluctuate unexpectedly while other components test normally, replacing the ICP sensor is often the appropriate solution.

Step-by-Step ICP Sensor Replacement Guide

Replacing the sensor is generally considered a manageable repair for experienced DIY owners with basic hand tools.

Follow these general steps:

1. Disconnect the Battery

Disconnect the negative battery terminal to prevent accidental electrical shorts.

2. Gain Access

Remove any intake tubing or nearby components that limit access to the sensor.

3. Disconnect the Connector

Carefully unplug the electrical connector without pulling on the wires.

4. Remove the Old Sensor

Use the proper deep socket to unscrew the sensor from the cylinder head.

5. Install the New Sensor

Thread the replacement sensor by hand first to avoid cross-threading, then tighten it according to the manufacturer's torque specification.

6. Reconnect Everything

Reconnect the wiring harness, reinstall removed components, and reconnect the battery.

7. Start and Test

Start the engine and verify there are no oil leaks or warning lights. A short road test can confirm normal engine performance.

Always use quality replacement parts and replace damaged electrical connectors if oil contamination has reached the wiring.

OEM vs. Aftermarket ICP Sensors: Which Is Better?

When replacing this sensor, owners often choose between OEM and aftermarket options.

An OEM motorcraft icp sensor 7.3 is designed to meet Ford's original specifications, offering consistent fitment, accurate pressure readings, and dependable long-term performance. Many owners prefer OEM components because they reduce compatibility concerns.

Aftermarket sensors are often more affordable and can provide good performance when purchased from reputable manufacturers. However, quality varies significantly between brands.

Maintenance Tips to Extend ICP Sensor Life

Although no sensor lasts forever, proper maintenance can significantly increase its service life.

Helpful maintenance practices include:

• Change engine oil at recommended intervals.
• Use the correct oil viscosity for your climate.
• Replace oil filters with quality products.
• Repair oil leaks promptly.
• Inspect wiring during routine maintenance.
• Keep electrical connectors clean and dry.
• Address check engine lights without delay.
• Avoid prolonged operation with contaminated engine oil.

Clean engine oil is especially important because the ICP sensor continuously monitors the high-pressure oil system. Dirty oil can affect system performance and contribute to premature wear.

Final Thoughts

The Injector Control Pressure sensor is a small component with a major responsibility in the 7.3L Powerstroke engine. Accurate oil pressure readings allow the fuel injection system to operate efficiently, providing reliable starting, smooth acceleration, and consistent engine performance.

Learning how the sensor works, recognizing early signs of failure, performing accurate diagnostics, and following proper replacement procedures can help you avoid unexpected breakdowns. Combined with routine oil changes and regular inspections, these preventive measures can keep your 7.3 Powerstroke running dependably for many years and thousands of miles.
