Improving Pneumatic System Efficiency With Double Acting Pneumatic Solenoid Valves

Industrial automation depends on reliable components that deliver precise movement, consistent performance, and efficient operation. Pneumatic systems are widely used in manufacturing because compressed air can power cylinders and actuators for repetitive mechanical tasks. Selecting the right control components is essential to achieving smooth operation and minimizing unnecessary production delays.

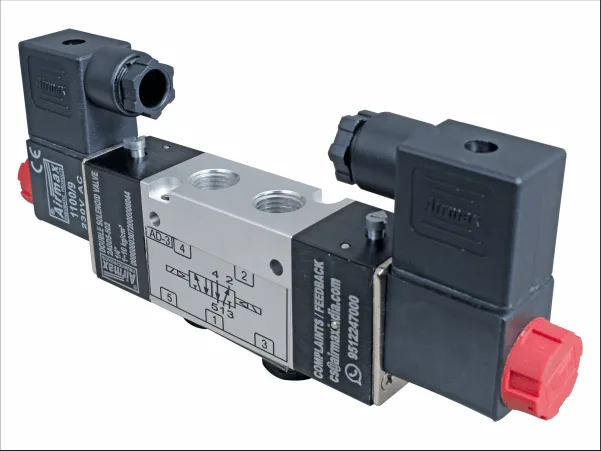

A double acting pneumatic solenoid valve helps control compressed air supplied to both sides of a double-acting pneumatic cylinder. By directing airflow through the appropriate ports, it enables controlled extension and retraction, supporting efficient operation in automated machinery.

1. Understanding Double Acting Pneumatic Solenoid Valves

A double-acting pneumatic cylinder uses compressed air on both sides of its piston to produce movement in two directions. Unlike a single-acting cylinder, which generally uses a spring or another external force for its return stroke, a double-acting cylinder uses air pressure for both extension and retraction.

A solenoid-operated directional control valve manages this airflow through electrical control signals. When the valve changes position, it supplies compressed air to one side of the cylinder while allowing air from the opposite side to exhaust. Switching the valve reverses the airflow and changes the cylinder's direction of movement.

This arrangement is useful in automated applications that require controlled movement during both operating strokes.

2. How These Valves Improve Pneumatic System Efficiency

Efficient pneumatic operation depends on appropriate airflow, reliable switching, and coordination between control signals and mechanical movement. Double-acting pneumatic solenoid valves support these requirements by allowing automated equipment to control cylinder movement without repeated manual intervention.

In a production line, for example, a pneumatic cylinder may push a component into position before retracting to prepare for the next cycle. A suitable valve directs compressed air to complete both movements in the required sequence.

When integrated with sensors and programmable logic controllers, solenoid valves can respond to electrical commands and coordinate with other machine components. This helps maintain consistent operating cycles and supports faster, more organized production processes.

However, actual efficiency depends on valve sizing, operating pressure, airflow demand, cylinder dimensions, and the control system's design.

3. Key Benefits of Double Acting Pneumatic Solenoid Valves

These valves offer several advantages for industrial automation when selected and installed correctly.

• • Controlled movement in both directions: Compressed air powers both the extension and retraction strokes of a compatible cylinder.

• • Automation compatibility: Electrical switching supports integration with PLCs, sensors, and automated control panels.

• • Consistent operating cycles: Reliable valve switching helps machinery repeat movements according to programmed sequences.

• • Flexible applications: Different configurations can support a variety of industrial pneumatic circuits.

• • Reduced manual intervention: Automated airflow control allows equipment to perform repetitive tasks with less operator involvement.

These advantages make double-acting pneumatic control suitable for applications where predictable movement and repeatable performance are important.

4. Common Industrial Applications

Double-acting pneumatic solenoid valves are used across many industries, including packaging, automotive manufacturing, material handling, assembly, and general industrial production.

In packaging machinery, they can control cylinders responsible for pushing, positioning, or clamping products. In assembly operations, they support fixtures that hold components during processing. Material-handling equipment may use them to move items between workstations or operate pneumatic mechanisms.

They are also useful in automated sorting systems and machinery that requires repeated extension and retraction. The correct valve configuration helps ensure that the actuator receives air in the intended sequence.

5. Factors to Consider When Selecting a Valve

Choosing a suitable valve requires evaluating the operating requirements of the complete pneumatic system.

Important factors include operating pressure, required flow capacity, port size, switching frequency, voltage compatibility, and the number of valve positions. The valve must also match the cylinder's configuration and the intended control sequence.

Environmental conditions should be considered as well. Dust, moisture, temperature variations, and contaminated compressed air can affect component reliability. Appropriate air filtration and correct installation help reduce these risks.

Businesses evaluating pneumatic components can explore options from Airmax Pneumatics Ltd and verify the available configurations against their specific application requirements.

6. Maintenance for Reliable Performance

Regular inspection helps preserve pneumatic system efficiency. Check fittings and connections for air leakage, monitor valve switching, and inspect the air preparation equipment to ensure that compressed air remains clean and appropriately regulated.

Follow the manufacturer's recommendations for servicing, lubrication where applicable, and replacement of worn components. Electrical connections and control signals should also be checked if the valve does not switch consistently.

Preventive maintenance can help identify developing problems before they interrupt production.

Conclusion

Double-acting pneumatic solenoid valves support efficient industrial automation by controlling compressed-air flow to both sides of a pneumatic cylinder. Their ability to manage extension and retraction makes them valuable for packaging machinery, assembly lines, material handling, and other automated processes.

By selecting the correct valve configuration, maintaining clean compressed air, and following suitable maintenance practices, businesses can improve operational consistency, support reliable machine movement, and maintain efficient pneumatic system performance.
