How to Maintain Performance of Imaging Systems in Vacuum Chambers

Have you ever wondered how we capture pictures in a vacuum? A place where there is no air and a very extreme environment, either very hot or very cold.

Vacuum chambers are basically used in scientific research, labs, space testing, or manufacturing. And a regular camera can't capture what is happening inside that vacuum chamber. Thus, we need special cameras for it. These are called vacuum-compatible cameras.

But as they are very different from regular cameras, they need special care and setup.

And Here Is the Complete Guide to Keep Your Camera Working Properly in a Vacuum.

Use the Right Type of Camera

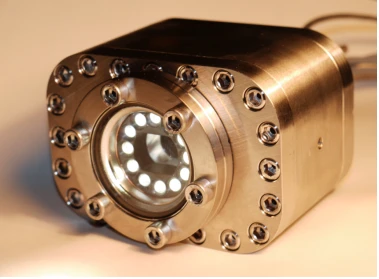

Regular cameras can never work under low-pressure conditions. So for that, always go for vacuum-compatible cameras. They are specially designed to work in extreme environments. They don't release gas or ever break under vacuum, as they are built with special materials.

Whenever you are buying a vacuum camera, keep the following points in mind:

• It should be made up of metal or ceramic.
• There should be vacuum-safe wires and connectors.
• It can work in extreme temperatures.
• Passive or liquid cooling should be there.
• Always check if they can work with your specific vacuum level.

Keep the Camera Cool

 In a normal environment, cameras get cool on their own because of the presence of air. That is why in a vacuum, they get hot very easily. So to fix that, you can use the following tips:

You may use heat sinks. These are basically metal parts that pull the heat away.

• You can attach thermal straps to transfer heat to the chamber wall.
• If the camera creates a lot of heat, then go for liquid cooling.
• You may also add temperature sensors to observe the heat level and shut down the camera if it gets too hot.

With these simple hacks, you can make your camera survive longer. As they may break if they get too hot.

Avoid Outgassing and Dirt

Inside a vacuum, some cameras release gas particles. And there is a high possibility that they can damage your sensors or ruin the whole experiment due to the fog.

So to stop outgassing, follow these tips:

• Always clean all parts before inserting them in the chamber.
• Bake the camera and its parts to remove already trapped gases.
• You may also use vacuum-safe glue or tape to secure.
• When not in use, always keep cameras in a clean and dry place.

Even a very small amount of gas or dirt particles can ruin your whole experiment. So always take care of that.

Mount the Camera Properly.

The way of setting up a camera inside a vacuum also impacts your results. So here is how to set it up:

• Use a strong and stable mount.
• Add vibration dampers to avoid the shaking of the camera.
• Use mirrors or lenses in tight spaces to direct the view.

Use Vacuum-safe Wires and Cables

You cannot use regular wires or plugs under vacuum, as they need high power to send pictures to your computer.

So instead, you may use:

• Teflon- or laptop-coated wires to avoid melting or outgassing.
• Use special vacuum feedthroughs to power and data safely.
• Don't use a large number of connectors.

Do regular checks and cleaning.

Even if your camera is working properly, regular cleaning and maintenance is a must. And here are some tips to keep your camera in good condition:

• Clean the camera and its parts frequently.
• Always watch the temperature.
• Make sure that it is in the correct position.
• Check and compare the image quality from previous pictures.
• Always keep notes to detect the problem easily.

Conclusion

A vacuum-compatible camera enables us to see or detect what is happening inside the vacuum. But to keep it working smoothly, you need to take extra care of it.

By using the right kind of camera, taking proper precautions to keep it cool and avoid outgassing, and keeping a proper record of its performance, you can keep your imaging system working great inside a vacuum chamber. This will surely smooth your experiments and will give you clear, better, and accurate results.
