How to Choose the Right Transmission and Distribution Equipment

Gear that is used for transmission and distribution (T&D) is responsible for moving electricity from power plants to consumers. It makes use of high-voltage components such as transformers, circuit breakers, switchgear, and transmission lines (pylons/towers) in order to conduct transmission over vast distances. It employs step-down substation equipment, underground cables, and distribution panels in order to carry out local delivery and distribution. The technology of smart grids ensures that everything functions in a dependable manner. The grid is now being modernized, renewable energy sources are being integrated, and digitalization is being pursued.

When it comes to constructing a power network that is dependable, effective, and prepared for the future, selecting the appropriate transmission and distribution equipment is of the utmost significance. Whether you work for a power company, an EPC contractor, or an industrial facility manager, making the correct decisions can help you save money in the long run, ensure that your business continues to run effectively, and ensure that your employees remain safe.

How Electricity Travels From Power Plant to End User

●    Electricity generation occurs at stations using thermal, hydro, nuclear, solar, or wind energy.

●    Turbines and generators convert mechanical or solar energy into electrical power at low voltages.

●    A step-up transformer increases voltage to higher levels to reduce energy loss during transmission.

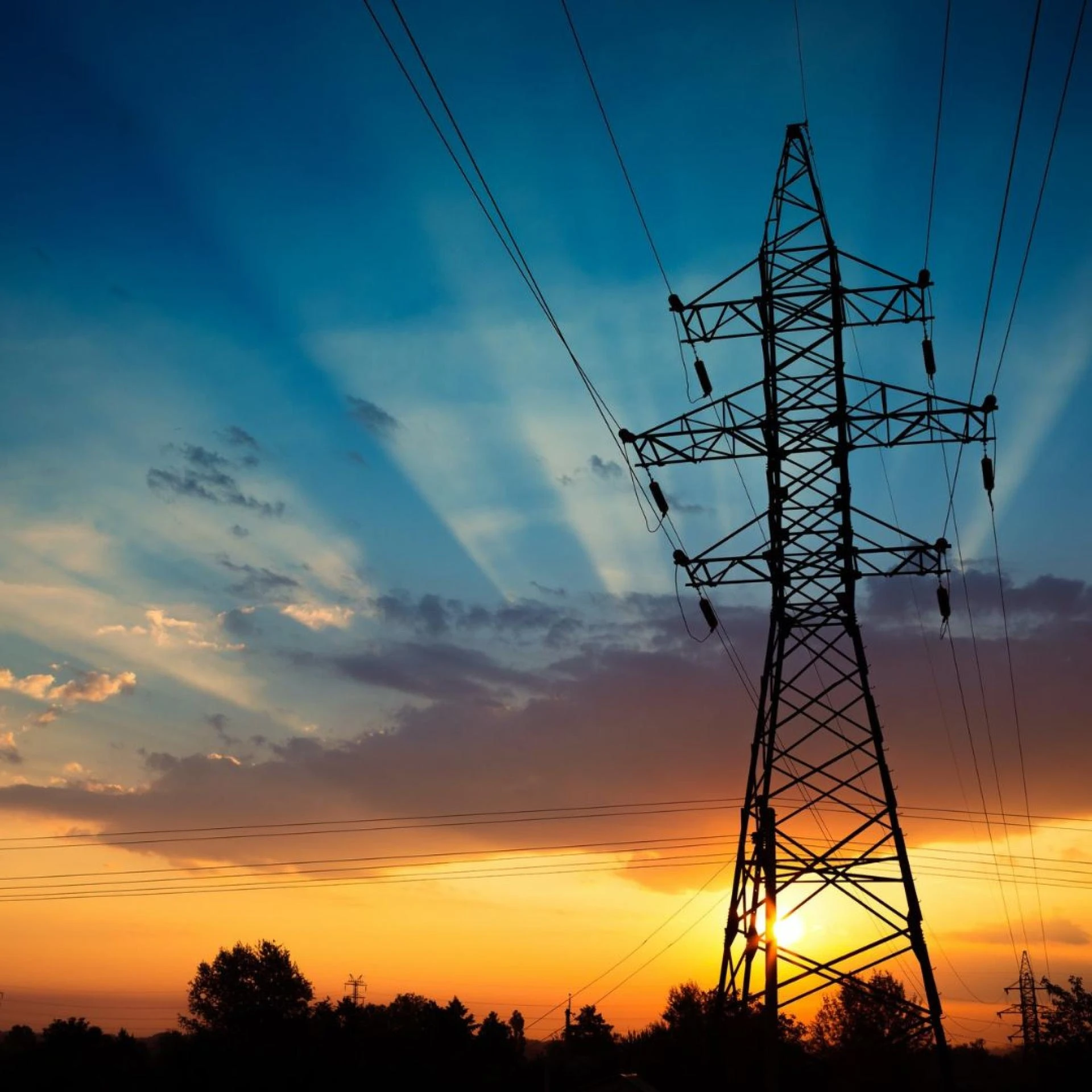

●    High-voltage electricity travels through transmission lines supported by metal towers, forming extensive "electricity superhighways."

●    High-Voltage Direct Current (HVDC) technology is utilized for long-distance transmission to minimize losses and enhance grid stability.

●    Near urban areas, a transmission substation uses step-down transformers to reduce voltage to sub-transmission levels.

●    Power is further stepped down at distribution substations to 11 kV or 12 kV for local delivery.

●    Electricity is distributed to homes through overhead or underground lines, culminating in a final transformer that provides safe voltage levels.

●    A service drop connects to homes, directing electricity through a meter, breaker panel, and into wall outlets.

A Guide to Choose the RightTransmission and Distribution Equipment

Understand Your Power Requirement

The first step in selecting transmission and distribution equipment is to do a comprehensive analysis on the future and current requirements. You must calculate the peak wattage of all connected devices while including a buffer of at least 20% to 30% to accommodate future growth and unexpected surges.

Beyond capacity, it is vital to select voltage levels and conductor types, such as Aluminum Conductor Steel Reinforced (ACSR), that minimize power loss over long distances. High-quality transformers must be chosen based on their ability to handle "Temporary Over-voltages" and maintain grid stability during sudden load rejections.

Identify the Application Environment

The storage of your equipment needs depends on where your infrastructure is located. Dry-type transformers are the most common choice for indoor use or in cities with many people, where fire safety is very important.

If your site has severe space constraints, Gas-Insulated Switchgear (GIS) offers a compact alternative to traditional air-insulated systems. Additionally, you must account for local weather extremes; for example, coastal areas require corrosion-resistant coatings, while regions prone to storms benefit from "grid hardening" via underground cabling.

Ensure Compliance a Rules and Regulations Compliance

Compliance is no longer just about safety; it is also about meeting strict new digital and industrial standards. It is critical to ensure that all transmission and distribution equipment, such as switchgear and transformers, adheres to the latest technical regulations, such as the Machinery and Electrical Equipment Safety Order.

Reliability and Safety

A reliable power system must be able to detect and isolate faults before they cause cascading failures. This is achieved by investing in high-quality protective relays and surge arresters that can withstand both lightning strikes and internal switching surges.

Being digitally resilient is another part of being reliable. The new tools should be able to track health data in real time and figure out when they need to be fixed. Finally, as grids become more connected, you need to make cybersecurity a top priority by picking hardware that allows encrypted communication and safe network segmentation to keep the infrastructure safe from outside digital threats.

Final Thoughts

Apfelbaum Industrial, Inc. is a company that focuses on being the best wholesale supplier of the best transmission and distribution equipment. They were established in 1999, and their main objective is the wholesale, distribution, installation, and maintenance of high- & medium-voltage equipment accessories and supplies. They have the most competitive prices and ensure a total focus on client satisfaction.
