How Point Cloud Scanning Helps Improve Structural Integrity Assessments?

Every structural assessment starts with one question. Does the building match what the drawings say? On most renovation, retrofit, and rehabilitation projects across the United States, the honest answer is no. Original drawings are missing, outdated, or never reflected field changes, and decades of settlement and added loads make manual measurements unreliable.

Point cloud scanning closes that gap. It gives engineers, BIM managers, and contractors a measured, three-dimensional record of existing conditions, which can be turned into an intelligent model through professional Point Cloud to BIM Services. This article explains how the process works and where it adds the most value to structural integrity assessments.

Understanding Point Cloud Scanning for Structural Projects

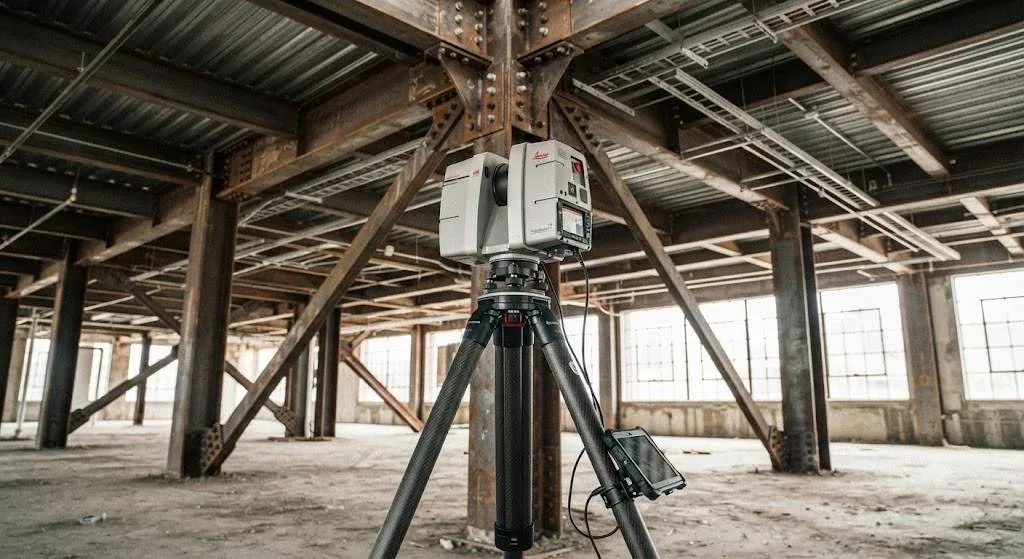

Point cloud scanning uses terrestrial LiDAR scanners, photogrammetry, or drone-mounted sensors to capture millions of data points on visible surfaces. Each point carries X, Y, and Z coordinates, often with color and intensity values. Together they form a dense digital replica of beams, columns, slabs, connections, and bracing. For general background, see this overview of LiDAR technology from the U.S. Geological Survey.

Modern scanners capture up to a million points per second with millimeter-level accuracy. A multi-story building can often be documented in a day or two with minimal disruption to occupants.

Limitations of Manual Surveys in Structural Assessments

Tape measures, total stations, and hand sketches record only the points someone chose to measure. A structural engineer evaluating a deflecting beam or a bulging wall often needs data in places nobody thought to capture.

• Spot measurements miss localized deformation such as slab sag between columns.

• Hand-recorded dimensions introduce transcription and rounding errors.

• Return site visits add cost and delay, especially in occupied facilities.

• Plenum spaces, rooftops, and high bays create safety risks for surveyors.

How Point Clouds Improve Structural Integrity Assessments?

Accurate Detection of Deformation and Deflection

Because a scan captures complete surfaces, engineers can run deviation analysis against design geometry or a theoretical plane. Floor flatness, column plumbness, beam deflection, and wall out-of-plumb conditions become measured values instead of visual estimates. Early signs of foundation settlement or overloading can be flagged before they become costly repairs.

Verification of As-Built Conditions

Retrofit design depends on true member sizes, spans, and bearing conditions. A scan documents the actual structure, including steel connections, concrete openings, and field modifications that appear in no drawing set. That reduces assumptions in load calculations and the risk of redesign during construction.

Monitoring Change Over Time

Repeat scans taken months apart can be compared to track crack growth, settlement, or movement after nearby excavation or seismic events. This suits bridges, parking structures, industrial plants, and aging commercial buildings that require periodic condition assessments.

Safer and Faster Data Collection

Scanning reduces time spent on ladders, lifts, and catwalks. Teams can capture hard-to-reach zones from a safe distance, which supports site safety practices and shortens the field schedule.

Turning Scan Data Into an Analysis-Ready Structural Model

Raw scan data is heavy and difficult to use directly in design software. After registration, noise filtering, and cleanup, the cloud is converted into a parametric model that structural engineers can analyze and coordinate with other trades.

Point Cloud to Revit Workflow

A typical Point Cloud to Revit workflow follows a clear sequence.

• Import registered scan files (RCP or RCS) into Revit as linked point clouds.

• Confirm the required level of development, such as LOD 300 for design or LOD 350 for coordination.

• Model columns, beams, braces, slabs, foundations, and shear walls with correct family types and materials.

• Check the model against the cloud using section views and deviation tools.

• Deliver the model with documented tolerances and assumptions.

The result is a coordinated model that structural, architectural, and MEP teams can share. Clash detection against new mechanical or electrical routing becomes far more reliable when the base model reflects true field conditions.

Why Specialized Structural Scan to BIM Services Matter?

Structural elements need more care than general architectural modeling. Member sizing, connection types, and load paths all affect analysis. Dedicated Structural Scan to BIM Services pair scan data with engineering knowledge, so the model supports real analysis and not just visualization.

Practical Tips for US Project Teams

• Define the scan purpose before fieldwork. Deformation analysis needs higher resolution than general documentation.

• State accuracy tolerances and LOD in the scope to avoid rework.

• Use control points or a shared coordinate system so repeat scans align precisely.

• Agree on file formats early, including E57, RCP, and RCS.

• Align deliverables with owner and agency standards. The GSA 3D-4D Building Information Modeling Program is a useful reference for federal work.

Key Scanning Challenges and How to Overcome Them

Large files can slow modeling, so segment the cloud by floor or zone. Reflective or dark surfaces create noisy data, which additional scan positions and filtering can resolve. Concealed structure behind finishes will not appear in a scan, so pair scan data with ground penetrating radar or targeted inspection openings when needed.

Conclusion

Point cloud scanning gives structural engineers what manual surveys cannot, which is complete, measurable, and repeatable evidence of building condition. When that data is converted through reliable Point Cloud to BIM Services, it becomes a working model that supports safer decisions, tighter coordination, and fewer surprises in the field.
