How GO/NO GO Thread Gauges Ensure Precision and Quality in Manufacturing

In today’s highly competitive manufacturing environment, precision and quality are not optional they are essential. Every component that goes into an assembly, machine, or system must fit perfectly and function reliably. Among the many tools that help maintain this level of accuracy, GO/NO GO thread gauges play a critical role in ensuring that threaded components meet exact specifications.

At Gaugestools, a leading manufacturer and supplier of precision gauges, we understand how vital these instruments are for maintaining consistency, reliability, and safety across industries. Let’s explore how GO/NO GO thread gauges help manufacturers achieve superior precision and product quality.

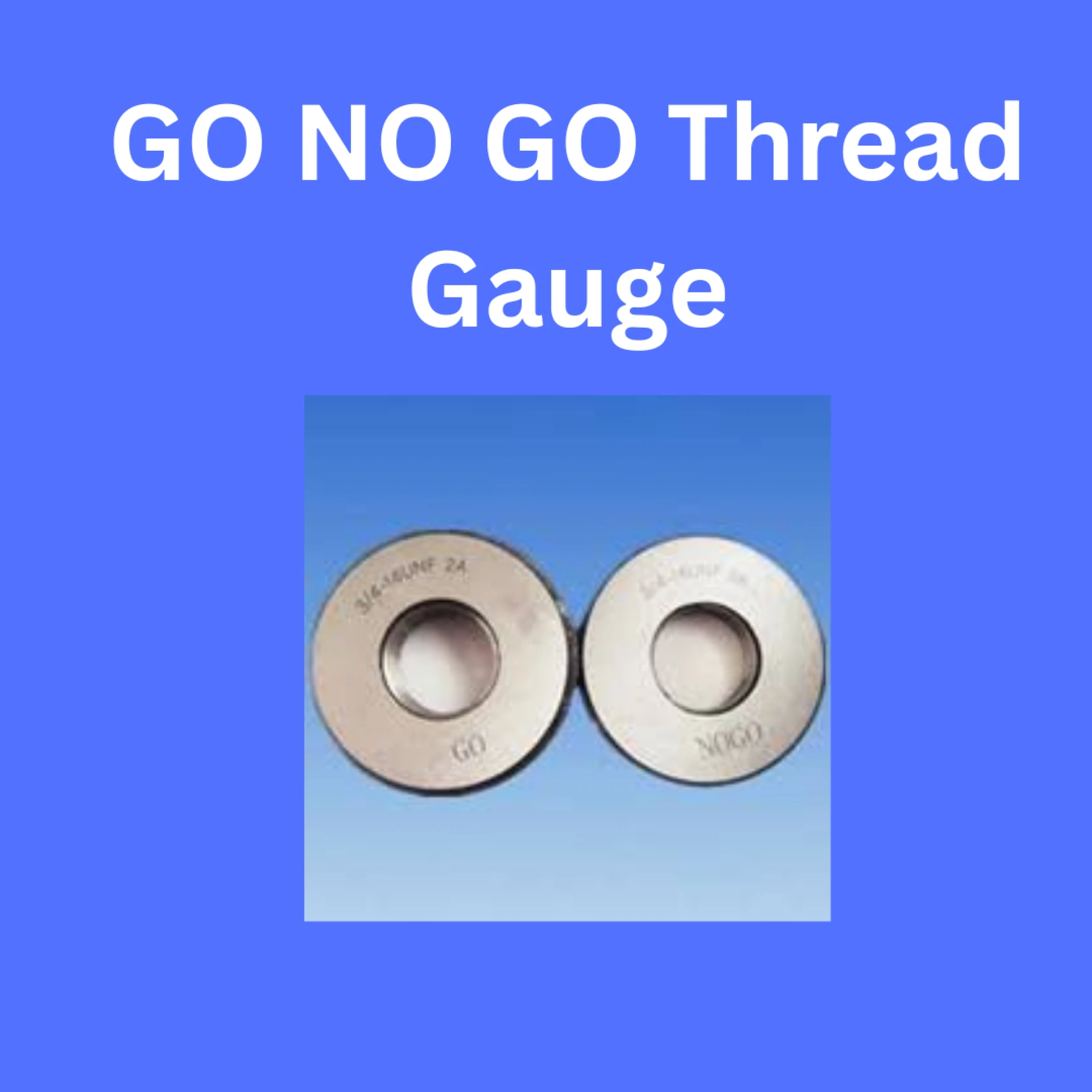

Understanding GO and NO GO Thread Gauges

A GO/NO GO thread gauge is a type of measuring instrument used to check the accuracy of threaded parts such as bolts, nuts, and fasteners. Unlike other measuring tools that provide numerical readings, these gauges offer a pass/fail result, making them quick and easy to use on the production floor.

There are two parts to every GO/NO GO gauge:

• GO Gauge: Checks the lower limit of the tolerance. The threaded part should fit smoothly into the GO gauge without excessive force, confirming that the thread is not oversized.
• NO GO Gauge: Checks the upper limit of the tolerance. The part should not fit into the NO GO gauge, confirming that the thread is not undersized or incorrectly formed.

If a component passes both tests, it’s considered to meet the required dimensional accuracy and is ready for assembly or distribution.

The Importance of Thread Accuracy in Manufacturing

Threaded components are used in virtually every industry from automotive to construction and energy. Even a small error in the thread pitch, angle, or diameter can result in mechanical failure, leaks, or assembly issues.

For example:

• In the automotive industry, a faulty thread can cause vibration and part loosening.

By ensuring that every threaded part conforms to exact standards, GO/NO GO thread gauges safeguard product reliability and operational safety.

How GO/NO GO Thread Gauges Work in Quality Control

The beauty of GO/NO GO gauges lies in their simplicity and efficiency. Instead of relying on complicated measurement tools or digital instruments, they provide an instant and reliable indication of whether a part meets specifications.

Here’s how the process typically works:

1. Inspection Setup: The operator uses the GO gauge to check if the threaded component’s lower limit is acceptable.
2. Fit Testing: If the GO gauge fits smoothly, it confirms that the part is not oversized.
3. Rejection Check: Next, the operator tries the NO GO gauge. If it does not fit, the thread is within tolerance and acceptable.
4. Verification: If either step fails, the part is rejected for rework or scrapping.

This straightforward process ensures fast inspection times, making GO/NO GO gauges an essential part of every quality control department.

Benefits of Using GO/NO GO Thread Gauges

1. Precision and Reliability

GO/NO GO thread gauges eliminate guesswork. Since they are manufactured with extreme accuracy, they provide a dependable way to verify threads quickly without the need for advanced equipment or digital displays.

2. Time Efficiency

On busy production lines, speed is crucial. GO/NO GO gauges allow quick inspections without the need for repeated measurements, helping manufacturers maintain high productivity without compromising quality.

3. Cost-Effectiveness

Because they are simple to use and require minimal training, these gauges help reduce inspection costs and minimize production downtime. They also prevent expensive rework and rejections by identifying nonconforming parts early in the process.

4. Compliance With International Standards

High-quality thread gauges, like those from Gaugestools, are manufactured according to ISO, ANSI, DIN, and BS standards. This ensures universal compatibility and acceptance across global markets.

5. Enhanced Product Quality

By catching out-of-tolerance threads before they reach assembly, GO/NO GO gauges improve the overall quality of the final product — reducing failure rates and improving customer satisfaction.

Manufacturing Process of GO/NO GO Thread Gauges

Producing a precision thread gauge requires exceptional craftsmanship and advanced technology. Manufacturers like Gaugestools follow a meticulous process that includes:

1. Material Selection: High-grade tool steel or wear-resistant materials are chosen for durability and accuracy.
2. Heat Treatment: The metal is hardened and tempered to enhance wear resistance and stability.
3. Precision Machining: CNC thread grinding ensures that each gauge meets tight tolerance limits.
4. Calibration: Every gauge is calibrated using master gauges that trace back to national and international standards.
5. Quality Inspection: Final checks are carried out using coordinate measuring machines (CMMs) and optical devices to confirm accuracy.

This detailed process ensures that every GO/NO GO gauge from Gaugestools delivers long-term precision and consistency, even under heavy industrial use.

Applications of GO/NO GO Thread Gauges

GO/NO GO thread gauges are used across various industries, including:

• Automotive: For checking engine bolts, nuts, and threaded fasteners.
• Aerospace: To verify threads in precision components requiring extreme accuracy.
• Oil & Gas: For inspecting NPT, BSP, and tapered threads in pipes and fittings.
• Machinery Manufacturing: Ensuring proper thread fitting in mechanical assemblies.
• Engineering Workshops: For daily quality checks of machined parts.

No matter the application, these gauges provide the assurance that each component will perform reliably when assembled.

Why Choose Gaugestools for GO/NO GO Thread Gauges

Gaugestools has built a strong reputation as a trusted name in precision metrology tools. Our GO/NO GO thread gauges are crafted using advanced machining and strict quality control to meet international standards.

Here’s what sets us apart:

• Custom Solutions: We design gauges according to specific thread standards and customer requirements.
• Certified Accuracy: Every gauge is tested and certified for dimensional accuracy and durability.
• Global Reach: Trusted by clients across automotive, aerospace, and industrial sectors.
• Commitment to Quality: Adherence to ISO 9001 standards ensures consistent excellence.

By choosing Gaugestools, manufacturers gain a reliable partner dedicated to maintaining precision and ensuring flawless thread inspection.

Conclusion

In modern manufacturing, where precision defines success, GO/NO GO thread gauges are indispensable tools for maintaining accuracy, quality, and consistency. They provide a simple yet highly effective method of verifying threaded components, preventing costly errors and ensuring that every part meets international standards.

Gaugestools continues to lead the way in producing world-class thread gauges that help industries achieve unmatched precision and reliability. Whether you’re working in automotive, aerospace, or heavy engineering, trust our gauges to keep your production accurate, efficient, and compliant every single time.
