How Flexible Rubber Joints Prevent Pipe Damage Caused by Vibration

Piping systems in industrial plants, water treatment facilities, HVAC systems, and pumping stations often experience vibration from pumps, compressors, motors, and flowing fluids. If this vibration is transferred directly through rigid pipes, it can lead to noise, fatigue, cracks, loose connections, and premature equipment failure. Flexible Rubber Joints provide a practical way to absorb movement and reduce the stress placed on connected piping and equipment.

These components are designed to provide flexibility while maintaining a reliable connection between different sections of a pipeline. Understanding how they work can help industries improve piping performance, reduce maintenance requirements, and extend equipment service life.

What Are Flexible Rubber Joints?

Flexible rubber joints are flexible piping components made from reinforced elastomeric materials. They are installed between pipes, pumps, valves, and other equipment to accommodate movement and reduce the transmission of vibration.

Unlike rigid pipe connections, rubber joints can flex slightly when the connected system moves. Their construction generally includes a rubber body supported by reinforcement and flanged ends for connection to the pipeline.

Depending on the application, different rubber compounds and reinforcement designs may be used. Common materials include EPDM, NBR, and other elastomers selected according to temperature, pressure, and fluid conditions.

Why Does Vibration Occur in Piping Systems?

Vibration can originate from several sources within an industrial piping system. Common causes include:

• Rotating pumps and motors

• Compressors and mechanical equipment

• Pressure fluctuations

• Water hammer

• Turbulent fluid flow

• Improperly balanced rotating components

• Poorly supported pipelines

• Misalignment between connected equipment

• Sudden changes in flow direction or pressure

Small amounts of vibration may not immediately cause visible damage. However, repeated vibration over a long period can create cyclic stress on pipes, welds, flanges, valves, and equipment connections.

This makes vibration control an important part of pipeline design and maintenance.

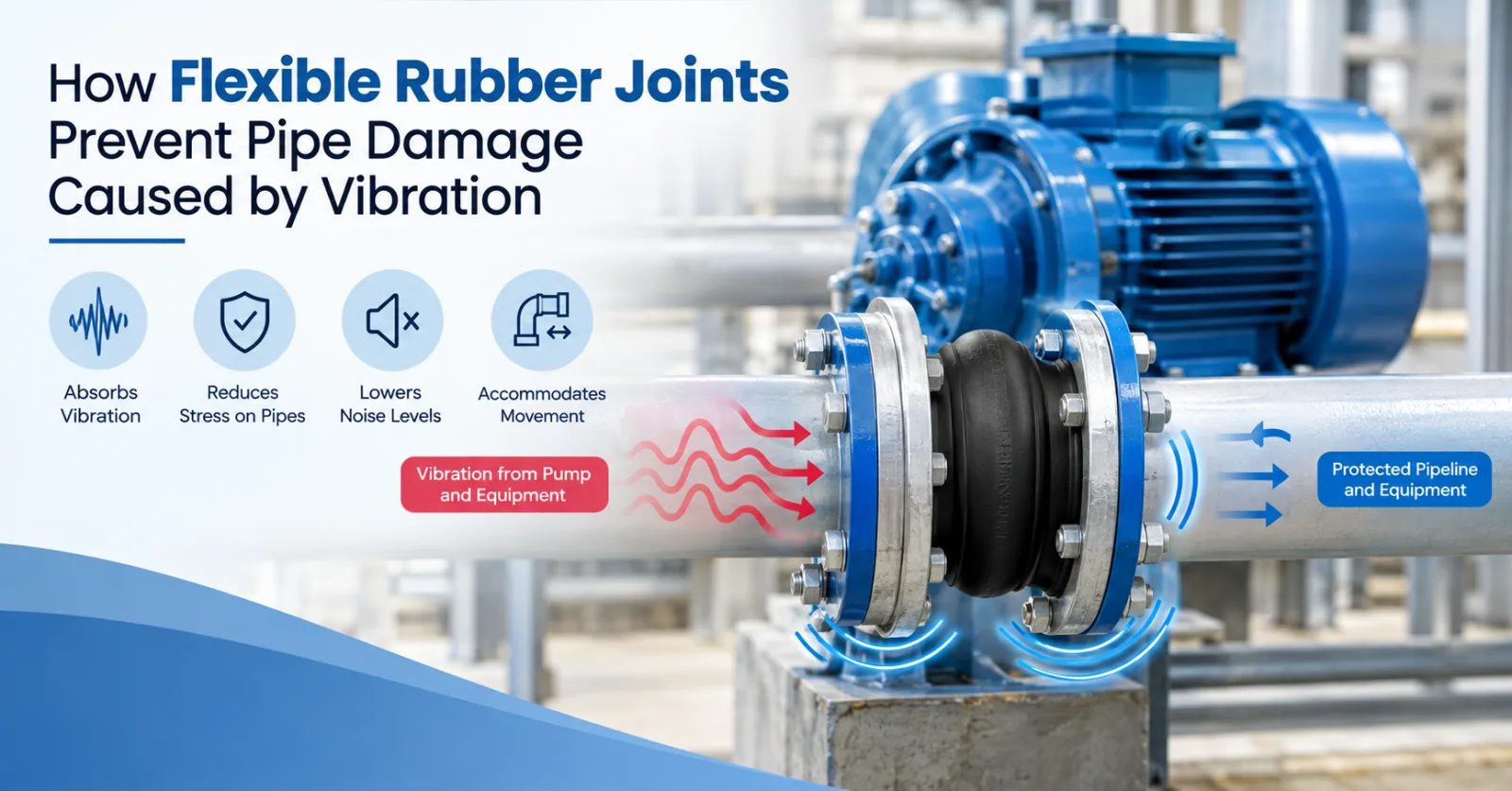

How Flexible Rubber Joints Reduce Vibration

The primary advantage of a flexible rubber joint is its ability to act as a flexible barrier between vibrating equipment and rigid piping.

When a pump or motor generates vibration, a rigid connection can transmit much of that movement into the pipeline. A rubber joint can deform slightly in response to the movement, helping absorb and isolate part of the vibration before it travels further through the system.

This can provide several benefits.

1. Absorbs Mechanical Vibration

Rubber has natural flexibility and damping characteristics. When vibration reaches the joint, the elastomeric body can flex rather than transferring all the movement directly into the pipe.

This helps reduce vibration transmission between pumps, machinery, and connected pipelines.

2. Reduces Stress on Pipes

Continuous vibration can place repeated stress on pipe walls and connection points. Over time, this cyclic loading may contribute to fatigue.

A flexible joint allows controlled movement, reducing some of the mechanical stress imposed on rigid sections of the piping system.

3. Protects Equipment Connections

Pumps, compressors, and other equipment often have connections that can be affected by vibration and movement. Excessive mechanical forces at these connections may contribute to seal problems, flange stress, or alignment issues.

Installing an appropriately selected flexible rubber joint near the equipment connection can help isolate the equipment from the pipeline and reduce the transfer of unwanted forces.

4. Accommodates Small Misalignment

Pipes and connected equipment may not always remain perfectly aligned. Thermal movement, installation tolerances, foundation movement, or equipment operation can create small changes in alignment.

Flexible rubber joints can accommodate limited lateral or angular movement, depending on their design and installation conditions.

5. Helps Reduce Noise

Vibration transmitted through metal piping can create noticeable mechanical noise. Because rubber is capable of damping vibration, flexible joints can help reduce the transmission of structure-borne noise through the piping network.

This can be particularly useful in pump rooms, HVAC installations, commercial buildings, and industrial facilities where noise control is important.

Flexible Rubber Joints and Thermal Movement

Vibration is not the only movement that can affect a pipeline. Temperature changes can cause pipes to expand and contract.

When a pipeline is exposed to hot or cold fluids, the pipe material can change length. If this movement is restricted, additional stress may develop within the piping system.

Flexible rubber joints can accommodate certain amounts of thermal movement while also helping control vibration. However, they should not be treated as a replacement for a properly designed thermal expansion system. The joint must be selected according to the expected movement, temperature, pressure, and operating conditions.

Applications of Flexible Rubber Joints

Flexible rubber joints are used in many systems where vibration, movement, or noise transmission needs to be controlled.

Water Treatment Plants

Pumps and other mechanical equipment in water treatment plants can generate vibration. Flexible joints can be installed around pumping equipment to help reduce vibration transfer into the water pipeline.

HVAC Systems

Heating, ventilation, and air-conditioning systems often use pumps, chillers, cooling towers, and other equipment that generate mechanical movement. Flexible rubber joints can help isolate this vibration from connected pipework.

Industrial Pumping Systems

Industrial pumps can create significant vibration, particularly when operating continuously. Flexible joints can help reduce the mechanical forces transmitted between the pump and pipeline.

Fire Protection Systems

Piping connected to pumps and other mechanical equipment may experience vibration during operation. Properly selected flexible connections can help accommodate movement and reduce stress on the system.

Wastewater Systems

Wastewater treatment facilities contain numerous pumps and mechanical systems. Flexible rubber joints can be used in suitable piping applications to manage vibration and movement.

Factors to Consider When Selecting a Flexible Rubber Joint

Choosing a joint based only on pipe diameter may result in poor performance. Several factors should be evaluated before selection.

Operating Pressure

The joint must be capable of handling the maximum operating pressure of the system. Pressure ratings should be checked carefully, especially where pressure fluctuations occur.

Temperature

Rubber compounds have different temperature resistance. The operating temperature and any expected temperature variations should be considered when selecting the elastomer.

Fluid Compatibility

The rubber material should be compatible with the fluid being transported. Water, chemicals, oils, wastewater, and other fluids can have different effects on elastomeric materials.

Movement Requirements

Determine the expected axial, lateral, and angular movement. The selected joint should have sufficient movement capacity for the application.

Pipe Size and Connection Type

The joint must match the pipeline dimensions and connection arrangement. Proper flange compatibility is essential for a secure installation.

Installation Conditions

Available space, pipe supports, anchors, guides, and equipment arrangement can influence the type and location of the joint.

Common Installation Mistakes to Avoid

Even a high-quality flexible rubber joint may perform poorly if it is installed incorrectly. Common mistakes include:

• Installing a joint under excessive extension or compression

• Misaligning the pipework

• Using incorrect bolts or tightening procedures

• Allowing unsupported pipe weight to rest on the joint

• Exceeding the manufacturer's movement limits

• Installing the wrong rubber material for the fluid

• Using a flexible joint where excessive movement requires another type of expansion solution

Pipe supports and anchors should be designed properly so that the flexible joint is not forced to carry loads it was not designed to handle.

Maintenance and Inspection

Regular inspection can help identify potential problems before they become serious. Operators should look for cracks, bulging, surface deterioration, leakage, damaged flanges, loose bolts, and unusual deformation.

The surrounding pipe supports and connected equipment should also be inspected. If vibration suddenly increases, the cause should be investigated rather than relying only on the flexible joint to compensate.

A change in pump operation, pipe support condition, alignment, or pressure can increase stress on the joint.

Flexible Rubber Joints vs Rigid Connections

Conclusion

Vibration can gradually damage piping systems by creating repeated stress on pipes, flanges, equipment connections, and other components. Flexible Rubber Joints help address this problem by absorbing vibration, accommodating limited movement, reducing mechanical stress, and helping protect connected equipment.

For reliable performance, the joint should be selected according to pressure, temperature, fluid compatibility, movement requirements, pipe size, and installation conditions. Correct installation and regular inspection are equally important for achieving a longer service life.

For industries looking for dependable solutions for vibration control and pipeline movement, working with an experienced Rubber Expansion Joints (Bellows) Supplier in India can help ensure that the right product is selected for the specific piping application.
