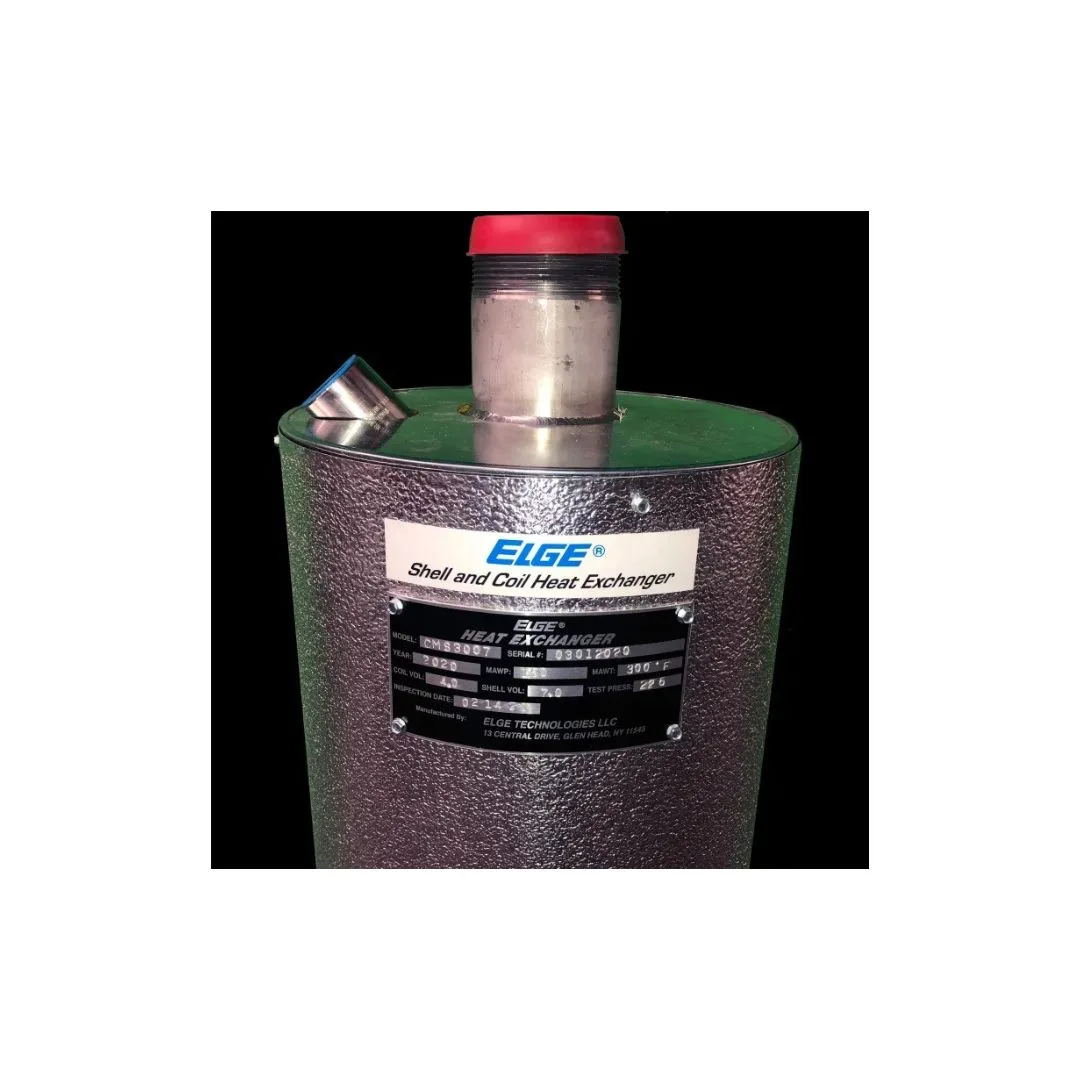

How Do You Choose the Right Shell and Coil Heat Exchanger for Your Process?

Choosing the right shell and coil heat exchanger starts with the process, not the equipment name. A suitable unit must match the fluid type, flow rate, temperature, pressure, heat load, and available space. The coil design also needs to provide enough heat transfer without causing an unwanted pressure drop. A clear review of these factors helps engineers select equipment that fits the actual duty.

Start With the Heat Load

The first step is to define the required heat duty. This shows how much heat must move between the two fluids. Heat duty is a key part of exchanger sizing because it shows the amount of heat the unit must transfer during normal operation. A correct heat duty value helps prevent poor heating or cooling results.

Provide the inlet and outlet temperatures for both sides. Flow rates are also needed. Fluid density, viscosity, specific heat, and thermal conductivity can affect the required heat transfer area. These details help engineers understand how the fluids will move and transfer heat inside the unit.

A unit that is too small may not reach the target outlet temperature. A unit that is too large can add cost and take up more space than needed. The aim is to select a size that meets the process need without adding an unnecessary equipment load.

Know What Each Fluid Brings

Fluid properties have a direct effect on exchanger selection. Each process fluid can behave in a different way inside the exchanger, so the same design may not work well for every application.

Clean water, thermal oil, chemicals, steam, and process liquids do not behave in the same way. Thick fluids may need a different coil size or flow arrangement. Corrosive fluids may require stainless steel or another suitable alloy. Material choice should match the fluid and the service conditions.

The design should also account for suspended solids, deposits, and fouling. These factors can reduce heat transfer over time and may affect the cleaning method. A good design considers the fluid as well as the required heating or cooling result.

Check Pressure Before Size

Operating pressure and design pressure are key parts of the specification. Both the shell and coil need suitable pressure ratings for the process. The equipment must be able to handle the pressure used during normal operation and the pressure set for design conditions.

Temperature also affects material strength. A material that works well at moderate conditions may not suit a higher temperature duty. Engineers should review the full operating range before selecting materials.

Engineers should review the maximum operating temperature, pressure, fluid chemistry, and expected pressure changes as one set of conditions. This helps confirm the mechanical design before fabrication.

Coil Shape Affects Heat Transfer

The coil is the main heat transfer surface in this type of exchanger. Its diameter, length, tube size, spacing, and flow path all affect performance. Each part can change how the fluid moves and how much heat can pass through the tube wall.

A longer coil can provide more surface area. A smaller tube may increase fluid velocity, but it can also raise pressure drop. The right balance depends on the process. The design must provide enough heat transfer without creating too much resistance to fluid flow.

Flow direction matters too. Counterflow operation can provide an effective temperature difference across the exchanger. The final arrangement should match the required duty and available pressure.

Space Can Change the Selection

Plant layout is another practical factor. Some processes have limited floor space or require a compact vessel. The available area can affect the shape, size, connections, and placement of the heat exchanger.

A shell and coil arrangement can offer useful flexibility for certain duties. Engineers should review connection locations, service access, mounting needs, insulation space, and cleaning access before final selection. These details can make future service easier.

The exchanger should fit the plant layout without making routine service difficult. Good planning also helps avoid changes to piping after the equipment has been ordered.

Cleaning Needs Deserve Attention

Fouling can reduce exchanger performance. Deposits can build on heat transfer surfaces and restrict flow. This can lower heat transfer and increase pressure drop.

Ask how often cleaning may be required and which cleaning method suits the process fluid. Mechanical cleaning, chemical cleaning, or other methods may be considered based on the exchanger design and fluid characteristics.

A good selection balances heat transfer performance with practical service needs. Cleaning should be part of the design discussion before the unit is made.

Wind Up:

The right exchanger is the one that meets the required thermal duty and mechanical limits while fitting the plant conditions. Temperature alone is not enough to make that choice. Fluid properties, pressure, materials, fouling, cleaning, flow, and space all have a role.

For process applications in the area, discuss your heat duty, fluid data, pressure limits, material needs, and layout with a qualified supplier of shell and coil heat exchangers in Long Island, NY. Request a technical review before ordering so the selected unit matches the process and service requirements.
