How Do Domestic Hot Water Heating Skids Work With Steam Boilers?

Domestic hot water systems must supply warm water for showers, sinks, kitchens, and cleaning tasks. Hotels, hospitals, schools, and large buildings often need hot water at different times of the day. Domestic hot water heating skids help meet this demand by bringing key heating parts together in one prepared unit. They use steam from a boiler to heat water for daily use, while controls help manage temperature and flow.

How Does Steam Heat Water Without Mixing Fluids?

A steam boiler produces steam that carries heat energy. This steam travels through pipes to a heat exchanger inside the hot water system. Cold water flows through a separate passage in the same unit. Heat moves from the steam to the water through a metal surface, so the two fluids remain separate. This allows the system to use heat from the boiler without mixing steam with the water used by people.

As the water gains heat, it reaches the temperature needed for taps, showers, and other outlets. The steam cools as it transfers energy and may turn into condensate. A suitable system collects and removes this condensate through the correct return or drain setup. Proper condensate handling helps the boiler system work as planned and supports steady heat transfer.

This process allows a building to use boiler steam for water heating without sending steam directly into the domestic water supply. The heat exchanger must be selected for the required flow, pressure, and temperature range. Its size and design affect how much heat it can transfer to the water.

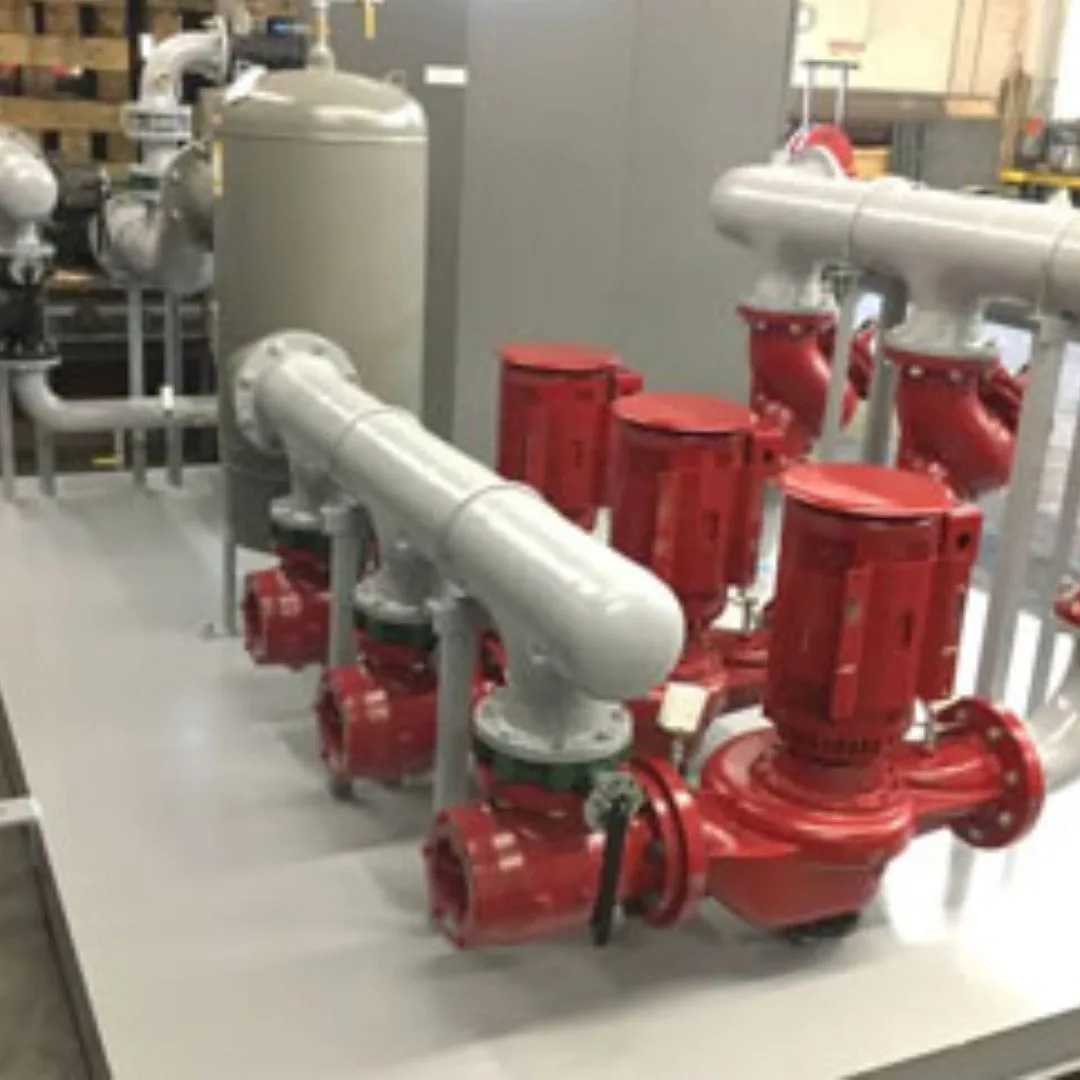

What Parts Make up a Heating Skid?

A typical skid brings several parts together on a shared base. The exact setup depends on the building and its hot water needs. Common parts include a heat exchanger, control valves, piping, temperature sensors, and safety devices. Some packages also include pumps, gauges, and a control panel. Each part is chosen to suit the system design and the conditions at the site.

Each part has a clear role. The heat exchanger transfers energy. Valves control the steam supply. Sensors measure water temperature, while controls adjust the heating process. Pumps may move water through the system if the design requires them. Pipes carry steam and water along the correct routes, while gauges help staff check operating conditions.

Putting these parts together can make equipment layout easier to plan. It also gives installers a defined set of connections to review before the unit is placed in the building. The team must still check the site, pipe connections, power supply, and space for service work before installation begins.

How Do Controls Keep Water at the Right Temperature?

Steam can transfer heat quickly, so careful control is important. A temperature sensor checks the hot water leaving the heat exchanger. If the water is below the set point, the control system can allow more steam into the unit. As the water reaches the target temperature, the valve reduces or stops the steam flow. This process helps keep the water close to the required temperature as demand changes.

Correct control helps limit sudden temperature changes and reduces the risk of overheating. A thermostatic mixing valve may also be used to blend hot water with cooler water before it reaches users. This can help lower the risk of scalding, especially in facilities used by children, older adults, or patients. The valve must be set and checked according to the system design.

The final design should follow applicable plumbing codes, temperature requirements, and safety rules. Regular checks help confirm that sensors, valves, and protective devices work as intended. Staff should report unusual temperature changes or control problems so they can be checked by a qualified technician.

What Affects Heating Capacity and Daily Performance?

The system must match the building's real hot water demand. Engineers review the volume of water needed, incoming water temperature, required outlet temperature, steam pressure, and expected peak use. A hotel may need a large supply during morning hours, while a school may see demand rise at set times. These details help determine the heat exchanger size and the parts needed for the job.

The heat exchanger must transfer enough energy to meet this load. Low steam pressure, poor valve control, scale buildup, or restricted water flow can reduce performance. Incorrect sizing can also lead to slow heating or unstable outlet temperatures. A system that cannot meet peak demand may leave users waiting for hot water, while poor control can make temperatures harder to manage.

Maintenance matters too. Staff should inspect connections, check control settings, remove scale as required, and review condensate handling. Any service work should follow the equipment maker's instructions and site safety procedures. Routine checks can help identify problems early and keep the equipment working as intended.

Final Note:

Before choosing a package, the project team should confirm the available boiler steam supply, hot water demand, pipe sizes, operating pressures, and room layout. They should also allow access for inspection and repairs. Existing buildings may need changes to pipes or controls to suit the new equipment. The team should also confirm that the floor and available space can support the unit and allow safe access to its parts.

A well-selected domestic hot water skid can use steam boiler heat to provide a steady supply of hot water for daily building needs. Review your site's demand, steam conditions, safety needs, and service access before selecting a system. Contact a qualified heating systems professional to discuss your requirements and plan a suitable installation.
