Hot-Gas Centrifugal Fan Installation: Managing Thermal Expansion and Shaft Alignment

Centrifugal fans used in boiler and industrial furnace exhaust systems may experience substantial temperature changes during operation.

These changes affect the dimensions of metal components and can influence shaft alignment, bearing loading, and clearances between rotating and stationary parts.

Thermal expansion must therefore be considered during both equipment selection and installation.

How Temperature Affects Fan Components

As metal temperature rises, the material expands.

The amount of expansion depends on temperature change, component dimensions, and material properties.

In a centrifugal fan, the housing, impeller, shaft, and support structure may reach different temperatures.

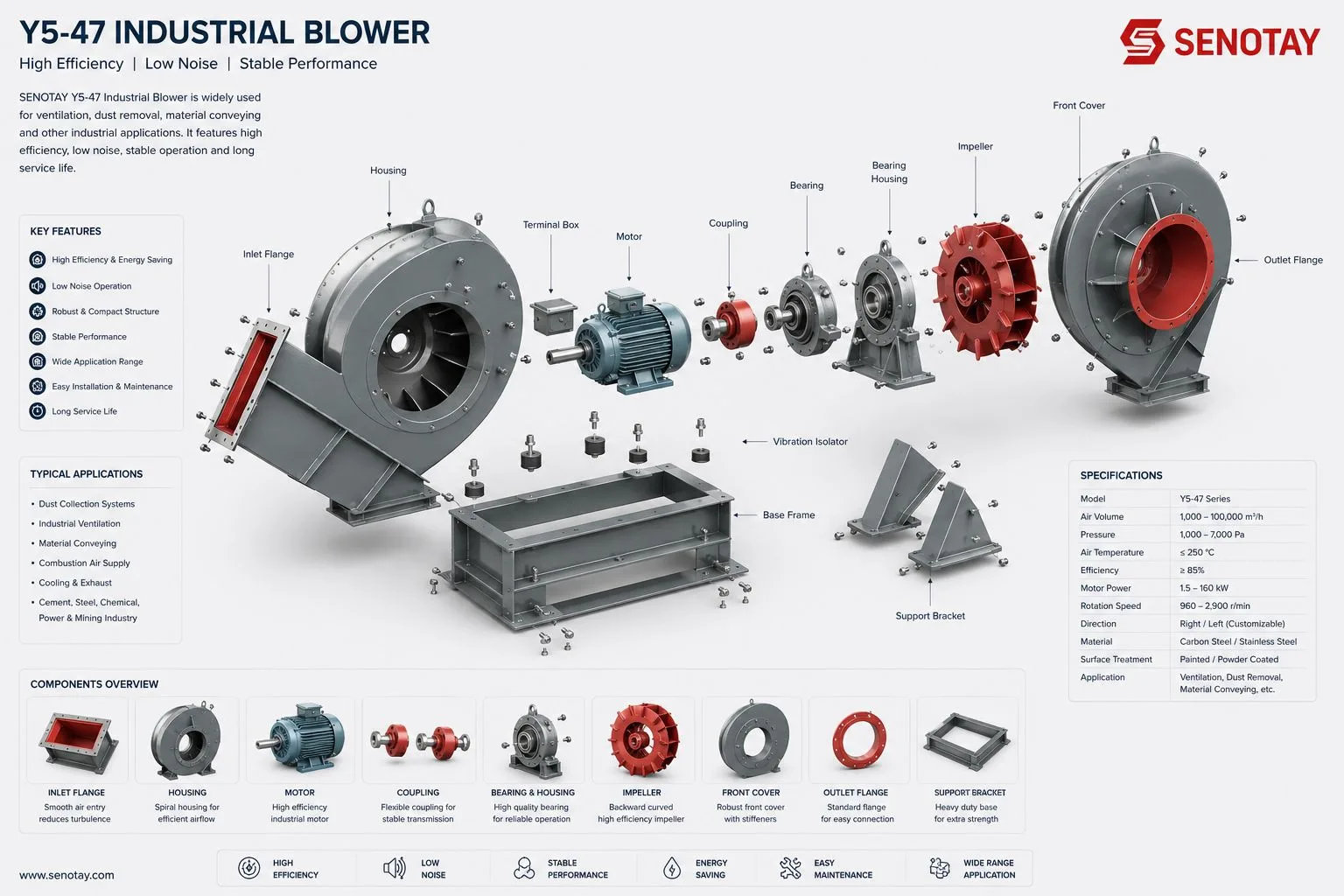

The Senotay Y5-47 Industrial Blower is an equipment option for compatible industrial boiler exhaust duties.

Its selected construction must suit the expected gas temperature and mechanical operating conditions.

Understanding Clearance Requirements

A rotating impeller requires suitable clearance from the housing.

If thermal expansion is not properly accommodated, mechanical interference may occur during startup or high-temperature operation.

Excessive clearances, however, can influence aerodynamic performance.

The correct design balances expected movement with mechanical and airflow requirements.

Why Shaft Alignment Matters

Fan shafts and connected motors must operate within suitable alignment tolerances.

Thermal movement can change the relative positions of connected components.

Depending on the arrangement, couplings, bearing supports, and mounting provisions may need to accommodate this movement.

Alignment should follow the manufacturer's installation instructions, including any specified cold-alignment requirements.

Checking Startup Conditions

Unexpected vibration or rubbing during heating may indicate mechanical interference.

Operators should monitor vibration, bearing temperature, and abnormal noise during controlled startup.

A Senotay 4-72 Industrial Blower provides another fan option for different ventilation duties, but model-specific temperature limits must always be verified.

Conclusion

Hot-gas fan reliability depends on more than airflow and pressure capacity.

Thermal expansion, shaft alignment, mechanical clearances, and appropriate startup monitoring help prevent avoidable damage.
