High Temperature Oven: Definition, Importance and Selecting the Right One

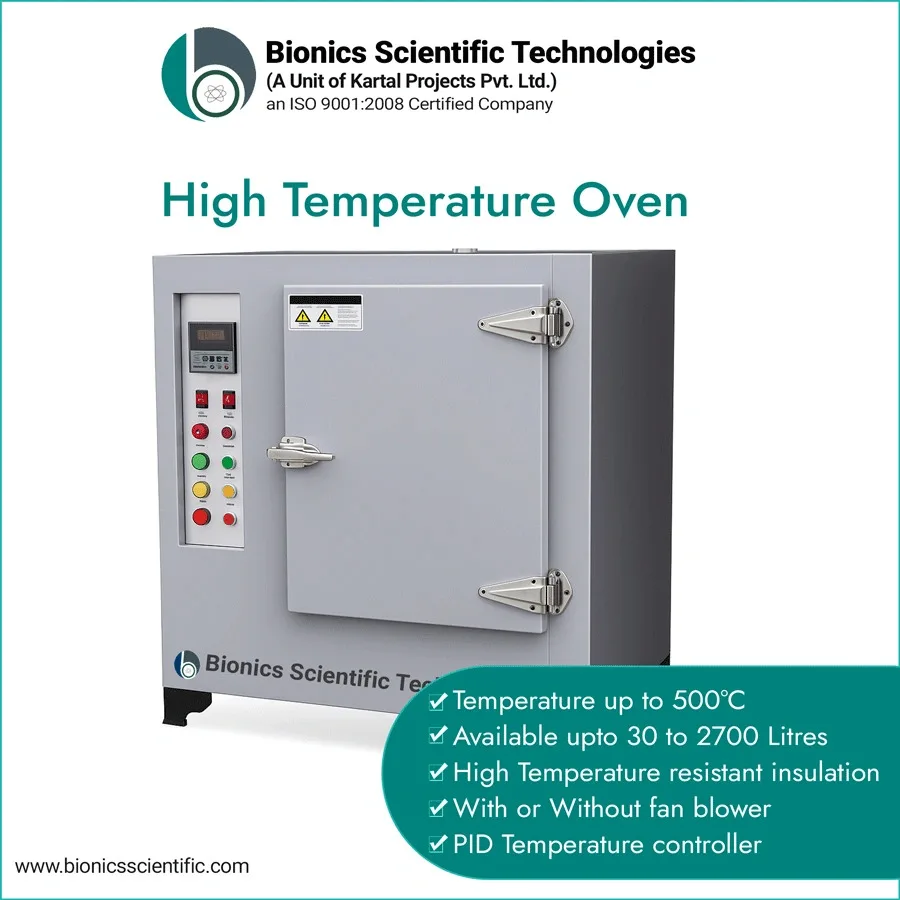

High Temperature Oven

High Temperature Oven is a special oven that can work efficiently at relatively higher temperatures than normal laboratory oven. While the latter is limited to a maximum of 250°C, the former generally works between a temperature range of 300°C – 500°C and can even go beyond those levels. The reason for the same is due to better insulation, higher power heating coils and superior material which does not melt or deteriorate on heating. High temperature ovens are commonly found in aerospace research laboratories, electronics industry, metal industries and ceramics industry.

The High Temperature Oven Operating Principle

Heat Source and Thermal Protection

Typically, these types of units use efficient electric resistance heaters, which cover all the interior of the furnace. There is a thick layer of insulation inside the unit, which consists of mineral wool or ceramic fiber. It keeps the heat inside the unit, protecting its casing from heating and increasing the energy efficiency of the system. In addition, an electronic PID controller controls the temperature of the system in small steps to prevent overheating of the system and stabilize the temperature of the chamber. Because of the high thermal mass of the unit, the heating time is rather long.

Types of Air Flow in the High Temperature Oven

High-temperature ovens can also have gravity convection and forced convection types. The latter oven is equipped with a very strong fan that is intended to operate in harsh conditions. It provides better temperature uniformity at various shelf levels, which is essential when you have to cure composite materials or heat treat metal parts in batches. Gravity convection is used for curing fragile loads.

Applications

These kinds of ovens are widely applied for the purpose of curing composite materials at elevated temperature, metal annealing, relieving metal stress, baking ceramic/glass parts, drying powders at elevated temperature, material aging tests. These kinds of ovens are also used in electronics laboratories for soldering tests and components baking. Certain pharmaceutical, glass vial, etc. industries require even higher temperatures up to 250°C. However, a common requirement in all these areas is to provide heating process with certain tolerances for extended period of time.

High Temperature Oven or High Temperature Furnace?

These are usually misunderstood terms. An oven for high temperature can generally reach temperatures up to middle temperatures in an efficient way with accuracy, but an oven for high temperature works even higher, reaching over 1000°C in order to melt and sinter the materials using heat treatment techniques. In case your need falls below 500°C to 600°C, then it is much wiser to opt for a high temperature oven.

Important Safety Practices

Note that all areas are extremely hot including the door, its handles, and the outside of the doors. Make sure you have heat-resistant gloves and protect your face to avoid exposure to a sudden burst of heat from the door. Do not store any sealed bottles, solvents, and other combustible material because the pressure and fumes may cause a fire explosion. The surrounding area should be very clean and well ventilated due to the high amount of electrical power needed for these instruments.

Maintenance and Validation

Make sure that you test the controller and also map out the chamber temperature by using calibrated probes in order to identify any areas that are hot and cold. Identify wear and tear of the doors, wires, and heating elements since the high temperatures cause quick wear and tear. Clean the chamber only when it is cool and ensure that there is a record for each cycle showing the temperature, time, load, and operator.

How to Select the Appropriate Model

First of all, take into account the maximum temperature at which you are going to work and make some allowance since working at maximum temperature will cause trouble for your oven. Secondly, think about the size of oven chamber and its uniformity, ramp rate, and airflow. Consider the safety elements such as over temperature and independent limit controller. Lastly, check the availability of service and spare parts locally.

Conclusion

It is worth having such an oven only when regular ovens don’t cut it anymore. Choose the best one based on your needs regarding temperature and handle it properly. These are just some basic rules that will ensure the durability of the appliance.
