Garnet Group Explained: Pyralspite and Ugrandite End-Members, Chemical Composition and Solid-Solution Series

The garnet group represents far more than the familiar deep-red gemstones commonly seen in jewelry. Garnets are a complex family of silicate minerals with different chemical compositions, colors, physical properties, and geological origins. Understanding the principal garnet end-members, along with the Pyralspite and Ugrandite series, provides a clearer picture of how this diverse mineral group is organized.

The General Garnet Formula

Garnets share the general chemical formula X₃Y₂Si₃O₁₂, which can also be expressed as X₃Y₂(SiO₄)₃. In this structure, the X and Y positions can be occupied by different chemical elements.

The X position commonly contains magnesium, iron, manganese, or calcium, while the Y position may contain aluminium, iron, or chromium. Substitution between these elements creates different garnet compositions. Consequently, many natural garnets do not match one theoretical formula perfectly but contain mixtures of two or more end-members.

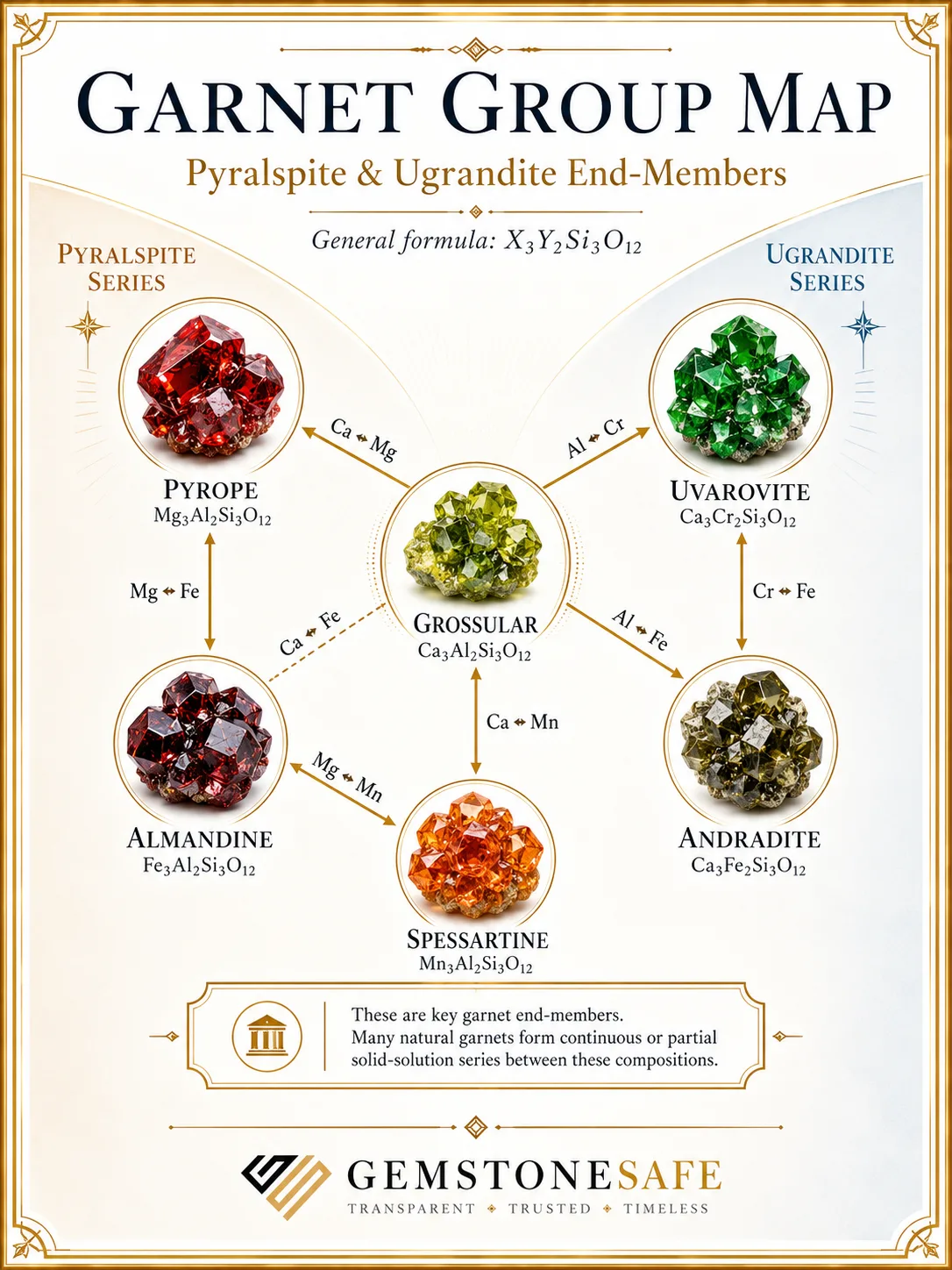

The six key garnet end-members shown in the infographic are divided into two major compositional families: the Pyralspite series and the Ugrandite series.

The Pyralspite Garnet Series

The name Pyralspite combines parts of the names pyrope, almandine, and spessartine. These garnets typically contain aluminium in the Y position, while magnesium, iron, and manganese substitute for one another in the X position.

Pyrope, with the formula Mg₃Al₂Si₃O₁₂, is the magnesium-aluminium end-member. It is traditionally associated with rich red colors, although natural pyrope-containing garnets can display a broader range of shades.

Almandine, represented by Fe₃Al₂Si₃O₁₂, is the iron-aluminium end-member. It commonly appears dark red, reddish brown, or purplish red and is among the most widespread garnets used in jewelry and mineral collections.

Spessartine, with the formula Mn₃Al₂Si₃O₁₂, is the manganese-aluminium end-member. It is especially admired for bright orange, reddish orange, and mandarin-like colors.

Magnesium and iron substitution connects pyrope and almandine, while magnesium and manganese create compositional relationships between pyrope and spessartine. Iron and manganese may similarly connect almandine with spessartine. Many gem-quality red and orange garnets contain contributions from more than one Pyralspite end-member.

The Ugrandite Garnet Series

The name Ugrandite is formed from uvarovite, grossular, and andradite. These garnets contain calcium in the X position, while chromium, aluminium, or iron occupy the Y position.

Grossular, with the formula Ca₃Al₂Si₃O₁₂, is the calcium-aluminium end-member. It has an exceptionally broad color range, including colorless, yellow, orange, brown, pink, and green. Tsavorite is a famous green gem variety of grossular.

Andradite, represented by Ca₃Fe₂Si₃O₁₂, is the calcium-iron end-member. Its varieties include green demantoid, yellow topazolite, and dark melanite.

Uvarovite, with the formula Ca₃Cr₂Si₃O₁₂, is the calcium-chromium end-member. It is recognized for its intense emerald-green color and commonly occurs as small crystals covering a matrix rather than as large facetable material.

Substitution between aluminium, iron, and chromium creates compositional connections across the Ugrandite series. Grossular occupies an important central position because it can form solid-solution relationships with several other garnet compositions.

Understanding Garnet Solid Solutions

A solid-solution series forms when chemically similar elements replace one another within a mineral’s crystal structure without fundamentally changing that structure. This is why a natural garnet may be described as predominantly pyrope while also containing measurable almandine or spessartine components.

These chemical mixtures influence a garnet’s color, refractive index, specific gravity, inclusions, and other gemological characteristics. Accurate garnet identification therefore requires more than observing color. Gemologists may use refractive-index readings, spectroscopy, microscopic examination, specific-gravity measurements, and advanced chemical analysis to determine composition.
