From Raw Sensor Data to Road Intelligence: The AV Annotation Pipeline

Autonomous Vehicles Are Designed to Interpret the Road, Understand Their Surroundings, Anticipate What May Happen Next, and Make Decisions Without Continuous Human Intervention. But Before an Autonomous Driving System Can Reliably Perform These Tasks, It Needs Something More Fundamental: High-Quality, Structured Training Data.

Every journey produces enormous volumes of raw information through cameras, LiDAR, radar, GPS, and other vehicle sensors. On its own, this data is simply a collection of images, point clouds, signals, and measurements. The transformation of this raw information into meaningful road intelligence depends heavily on a robust annotation pipeline.

This is where data annotation for Autonomous Vehicle systems becomes critical. By accurately labeling objects, road features, movements, and environmental conditions, annotation converts unstructured sensor output into machine-readable information that AI models can learn from.

Understanding the AV Annotation Pipeline

The autonomous vehicle annotation pipeline is more than simply drawing boxes around cars. It is a structured process that begins with raw sensor data and ends with datasets capable of supporting perception, prediction, and decision-making models.

A typical pipeline includes several interconnected stages:

1. Data collection

2. Data preprocessing

3. Sensor-specific annotation

4. Multimodal data synchronization

5. Quality assurance

6. Dataset refinement

7. Model training and evaluation

Each stage contributes to the reliability of the final AI system. An error introduced during annotation can potentially affect how an autonomous vehicle identifies an object, estimates its movement, or responds to a changing road situation.

Step 1: Collecting Raw Sensor Data

The pipeline starts with data captured from the vehicle's sensor suite. Cameras provide visual information, while LiDAR generates three-dimensional point clouds that represent the surrounding environment. Radar contributes information about object distance and velocity, while GPS and inertial systems provide positioning and movement data.

These sensors capture everything from vehicles and pedestrians to lane markings, traffic signals, road boundaries, cyclists, and unexpected obstacles.

However, the raw data does not inherently tell an AI model what these elements represent. A point cloud may contain millions of points, but the model needs structured labels to understand which points correspond to a pedestrian, vehicle, curb, or road surface.

Step 2: Preprocessing and Data Organization

Before annotation begins, raw sensor data typically goes through preprocessing. This may include removing corrupted frames, organizing sequences, synchronizing sensor streams, and correcting technical inconsistencies.

For autonomous driving applications, temporal continuity is particularly important. A vehicle observed in one frame should be correctly associated with the same vehicle in subsequent frames.

Preprocessing also helps annotation teams work with cleaner and more consistent datasets. Well-organized data reduces ambiguity and makes downstream quality control more efficient.

Step 3: Annotating the Driving Environment

The next stage transforms sensor data into structured training information.

For camera imagery, annotation can include:

• 2D bounding boxes

• Polygon and semantic segmentation

• Lane and road-marking annotation

• Traffic sign and signal labeling

• Object classification

• Keypoint annotation

For LiDAR, annotation can involve 3D bounding boxes, point-level segmentation, object tracking, and classification of spatial structures.

Different AI applications require different annotation formats. A perception model may need detailed object boundaries, while a lane-detection system may require precise segmentation of lane markings and road surfaces.

The objective is not simply to add labels. It is to create labels that accurately represent how the autonomous vehicle should perceive its environment.

Step 4: Building Multimodal Intelligence

Modern autonomous vehicles rarely depend on a single sensor. They combine information from cameras, LiDAR, radar, and other systems to build a more comprehensive representation of the environment.

This makes sensor fusion a major consideration in data annotation for Autonomous Vehicle projects.

Annotations across different sensor modalities need to remain spatially and temporally consistent. For example, a pedestrian identified in a camera frame should correspond correctly to the appropriate object in a LiDAR point cloud.

Multimodal annotation enables AI systems to learn relationships between different types of sensor information. This can improve perception in situations where one sensor may be limited—for example, when visual conditions make camera-based detection more challenging.

Step 5: Tracking Objects Through Time

Road environments are dynamic. Vehicles accelerate, pedestrians cross streets, cyclists change direction, and objects can enter or leave the vehicle's field of view.

Consequently, annotation must often extend beyond individual frames.

Object tracking links the same entity across a sequence of frames, allowing models to learn movement patterns and temporal behavior. Annotators may assign consistent identifiers to vehicles, pedestrians, cyclists, and other relevant objects throughout a sequence.

High-quality tracking data supports applications such as trajectory prediction, collision avoidance, and behavioral analysis.

Step 6: Capturing Edge Cases

The most challenging driving scenarios are often the least predictable. Construction zones, unusual road layouts, emergency vehicles, partially obscured pedestrians, adverse weather, debris, unusual vehicle behavior, and complex intersections can all create difficult perception scenarios.

A strong annotation pipeline deliberately identifies and labels these edge cases.

For autonomous vehicle developers, rare scenarios can be disproportionately important. A model may perform extremely well on common road situations but still struggle with an uncommon configuration that it has not encountered during training.

Annotating diverse and difficult scenarios helps expand dataset coverage and enables models to become more robust outside controlled or frequently observed conditions.

Step 7: Quality Assurance and Validation

Annotation quality directly influences model quality. For this reason, quality assurance should be integrated throughout the pipeline rather than treated as a final checkpoint.

Quality processes may include:

• Annotation guidelines and standardized taxonomies

• Automated validation rules

• Multi-level review

• Inter-annotator agreement checks

• Sampling and auditing

• Error correction

• Dataset consistency monitoring

For LiDAR annotation in particular, precision is essential because inaccurate 3D boundaries or object classifications can affect spatial perception.

A mature annotation workflow combines human expertise with automated quality checks to identify inconsistencies efficiently.

Step 8: Turning Annotations Into Road Intelligence

Once annotated data passes quality checks, it becomes valuable training and evaluation material for machine learning systems.

Models can use these datasets to learn how to detect objects, understand road geometry, recognize traffic infrastructure, estimate object movement, and interpret complex driving environments.

The resulting intelligence enables the autonomous vehicle's perception stack to transform sensor observations into a structured understanding of its surroundings.

In simple terms, the journey looks like this:

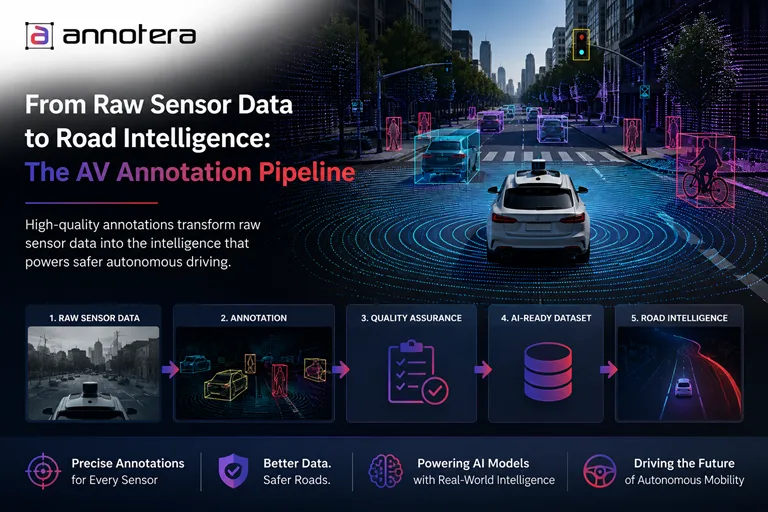

Raw Sensor Data → Annotation → Quality Validation → Training Dataset → AI Perception → Road Intelligence

The quality of every stage matters. More data does not automatically produce a better autonomous system if that data is inconsistent, incomplete, or poorly labeled.

Why the Annotation Pipeline Matters

Autonomous driving is fundamentally a data-driven discipline. Sensors provide the observations, algorithms process them, and annotation provides the semantic structure that allows machine learning systems to understand those observations.

A scalable annotation pipeline therefore needs accuracy, consistency, domain expertise, flexible tooling, and rigorous quality control.

At Annotera, we understand that successful data annotation for Autonomous Vehicle applications requires more than basic labeling. It requires an understanding of the data, the AI use case, the sensor modality, and the operational environment in which the model will ultimately perform.

From camera imagery and LiDAR point clouds to object tracking and complex edge cases, every annotation contributes to building safer and more capable autonomous systems.

Building the Future of Autonomous Driving With Better Data

The road to autonomous intelligence begins long before an AI model makes its first prediction. It begins with raw sensor data—and the processes used to transform that data into reliable knowledge.

As autonomous vehicle technology advances, annotation pipelines will need to become increasingly precise, multimodal, scalable, and capable of capturing the complexity of real-world driving.

Better annotations create better training datasets. Better datasets support stronger AI models. And stronger models can contribute to safer, more reliable autonomous mobility.

Annotera helps organizations transform complex sensor data into high-quality AI-ready datasets, supporting the development of intelligent systems built for the realities of the road.
