Evaporator Coils Explained: Types, Functions, and Common Troubleshooting Tips

The evaporator coil is one of the most important components in an air conditioning and refrigeration system. Although it is often hidden inside an indoor air handler or furnace cabinet, this component plays a central role in absorbing heat from indoor air. Without a properly functioning evaporator coil, an HVAC system cannot provide effective cooling.

Understanding how evaporator coils work, the different types available, and the problems they commonly experience can help homeowners, technicians, and building managers maintain better indoor comfort and system efficiency.

What Is an Evaporator Coil?

An evaporator coil is a heat exchanger designed to absorb heat from the surrounding air. In a typical air conditioning system, refrigerant enters the evaporator coil at a low temperature and low pressure. As warm indoor air passes over the coil, heat transfers from the air into the refrigerant.

The refrigerant absorbs this heat and changes from a liquid into a vapor. The cooled air is then circulated back into the building through the ductwork. The heated refrigerant vapor travels to the compressor, continuing the refrigeration cycle.

Because the evaporator coil is directly involved in heat transfer, its condition has a significant impact on cooling performance, energy consumption, and indoor comfort.

How Does an Evaporator Coil Work?

The basic operation of an evaporator coil involves several stages. First, the expansion device reduces the pressure of the refrigerant before it enters the evaporator. This pressure reduction causes the refrigerant to become very cold.

Next, the cold refrigerant flows through the tubing inside the evaporator coil. At the same time, the indoor blower moves warm air across the coil's fins and tubing.

Heat from the indoor air is transferred to the refrigerant. As the refrigerant absorbs heat, it evaporates into a gas. The cooled air then moves into the occupied space, while the refrigerant vapor continues toward the compressor.

This continuous heat-transfer process allows an air conditioner or heat pump to lower indoor temperatures efficiently.

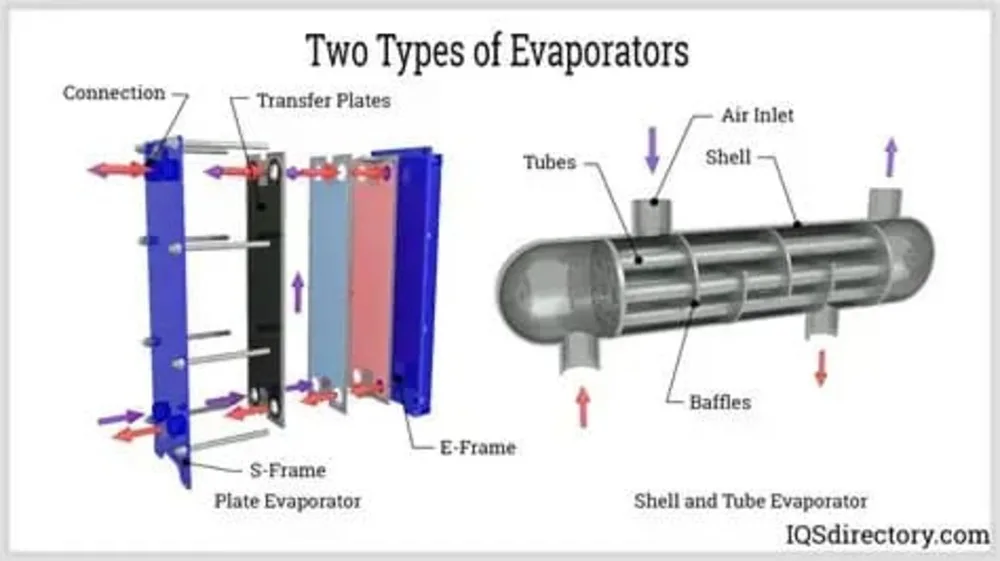

Common Types of Evaporator Coils

Evaporator coils come in different configurations to accommodate various HVAC system designs. The most common types include:

A-Coil

The A-coil is widely used in residential split air conditioning systems and heat pumps. It consists of two sloping coil sections arranged in an “A” shape.

This configuration provides a relatively large heat-transfer surface while fitting efficiently inside an air handler or furnace cabinet. A-coils are popular because they offer a practical balance between performance, space requirements, and installation flexibility.

N-Coil

An N-coil uses a configuration that resembles the letter “N.” It provides additional coil surface area within a compact cabinet and can be used in certain residential and commercial HVAC applications.

The specific configuration depends on the equipment manufacturer and system design.

Slab Coil

A slab coil is generally installed as a flat or relatively straight coil section. This design can be suitable for air handlers where cabinet dimensions and airflow arrangements allow a horizontal configuration.

Slab coils are commonly found in certain commercial and older HVAC systems.

Cased and Uncased Coils

Evaporator coils can also be categorized as cased or uncased. A cased coil comes inside a protective cabinet, making it easier to integrate with compatible air handlers or furnaces.

An uncased coil does not include a surrounding cabinet and may provide more flexibility for custom installations. However, proper installation and airflow management are essential to achieve good performance.

Common Evaporator Coil Problems

Like other HVAC components, evaporator coils can develop problems over time. Recognizing common symptoms can make troubleshooting easier.

Dirty Evaporator Coil

Dust, dirt, and airborne particles can accumulate on the coil surface. A dirty coil restricts heat transfer and may reduce cooling capacity.

In severe cases, restricted airflow and poor heat absorption can contribute to coil icing. Regular inspection and professional cleaning can help maintain proper performance.

Frozen Evaporator Coil

A frozen coil is one of the most common HVAC problems. Ice may form when airflow is insufficient, refrigerant levels are incorrect, or another system problem prevents the coil from operating within its intended temperature range.

A dirty filter, blocked return vent, malfunctioning blower, or restricted ductwork can reduce airflow and contribute to freezing.

If the coil repeatedly freezes, simply removing the ice is not enough. The underlying cause should be identified and corrected.

Refrigerant Issues

Incorrect refrigerant charge can affect evaporator coil performance. Low refrigerant levels may reduce the system's ability to absorb heat and can contribute to abnormal operating temperatures.

Refrigerant-related problems should be handled by a qualified HVAC professional because proper diagnosis, recovery, charging, and leak detection require specialized equipment.

Water Leakage

The evaporator coil naturally produces condensation while removing humidity from indoor air. This water should flow into the condensate pan and drain system.

A clogged drain line, damaged drain pan, improper installation, or excessive ice accumulation can cause water to leak around the indoor unit. Persistent leakage should be addressed promptly to prevent damage to ceilings, walls, insulation, and surrounding equipment.

Troubleshooting Evaporator Coil Problems

When an HVAC system is not cooling properly, several basic checks can help identify potential issues. Start by inspecting the air filter and replacing it if it is dirty. Make sure supply and return vents are open and unobstructed.

If the system has reduced airflow, unusual noises, visible ice, or water around the indoor unit, turn off cooling operation and allow the system to be inspected.

Technicians may check airflow, coil temperature, refrigerant pressure, electrical components, blower operation, condensate drainage, and overall system performance. Proper diagnosis is important because similar symptoms can have completely different causes.

How to Maintain an Evaporator Coil

Preventive maintenance can extend the service life of an evaporator coil and improve HVAC efficiency. Replace or clean air filters according to the manufacturer's recommendations. Keep return-air pathways unobstructed and schedule periodic professional HVAC inspections.

During maintenance, technicians can inspect the evaporator coil for dirt, corrosion, ice formation, and physical damage. They can also check the condensate drain and verify that the system has appropriate airflow.

Keeping the surrounding air-handling components clean is equally important because contaminants can eventually reach the coil and reduce its heat-transfer performance.

Final Thoughts

Evaporator coils are essential to the cooling process because they absorb heat from indoor air and transfer it to the refrigerant. Different configurations, including A-coils, N-coils, slab coils, cased coils, and uncased coils, allow HVAC manufacturers to accommodate different equipment designs and installation requirements.

Common issues such as dirty coils, frozen surfaces, refrigerant problems, restricted airflow, and condensate drainage failures can significantly reduce system performance. Regular filter replacement, proper airflow, routine inspection, and professional maintenance can help prevent many of these problems.

By understanding the function and maintenance requirements of evaporator coils, property owners and HVAC professionals can make better decisions about system care, troubleshooting, and long-term cooling efficiency.
