Electrical Pull Box Selection: NEMA Enclosures Explained

Electrical wiring systems often involve multiple conduit runs, changes in direction, and long conductor paths. Providing adequate space for installers to route and manage those conductors can make an electrical installation more practical and maintainable. A properly selected pull box provides an accessible enclosure at strategic points in the wiring system while helping protect internal components from the surrounding environment.

The design and environmental requirements of an electrical pull box should be considered before installation. Factors such as enclosure dimensions, conductor arrangement, moisture exposure, dust, corrosion, accessibility, and mounting location can all influence the appropriate choice.

What Is an Electrical Pull Box?

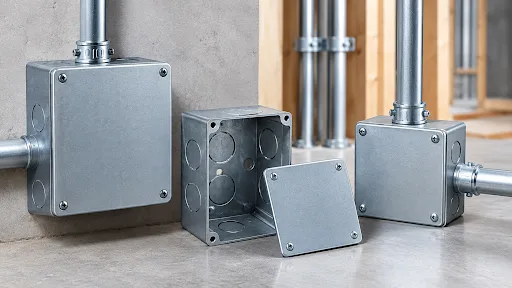

An electrical pull box is an enclosure used to provide space for pulling, routing, and managing electrical conductors. It may be installed where several conduit runs meet, where a wiring route changes direction, or where a long conductor run would be difficult to install without an intermediate access point.

Unlike equipment enclosures designed primarily to house control components, a pull box is generally intended to make conductor installation and routing more manageable. Its size and configuration should therefore accommodate the number and arrangement of conductors and conduit entries involved.

Accessibility is another important consideration. A well-positioned box can provide installers with additional working space and simplify future inspection or maintenance.

Why Enclosure Selection Matters

The surrounding environment has a direct effect on the type of protection an enclosure needs. An indoor electrical room may present relatively limited environmental exposure, while manufacturing areas, outdoor installations, and washdown locations can expose equipment to significantly different conditions.

NEMA 250 establishes enclosure classifications for electrical equipment and defines Types intended for different environmental conditions. The standard covers indoor Types such as 1, 2, 5, 12, 12K, and 13, along with indoor or outdoor Types including 3, 3X, 3R, 3RX, 3S, 3SX, 4, 4X, 6, and 6P.

This makes enclosure classification an important part of selecting an electrical pull box, particularly when the box will be installed outside or in an industrial environment.

Matching the Enclosure to the Environment

Different NEMA Types address different environmental conditions.

For example, Type 1 is designed for indoor use and provides protection against access to hazardous parts and falling dirt. Type 2 is also intended for indoor applications but provides additional protection against dripping and light splashing water.

Type 3 is designed for indoor or outdoor use and addresses falling dirt, windblown dust, rain, sleet, snow, and external ice formation. Type 3R also provides outdoor weather protection but has different requirements concerning solid foreign objects.

For applications involving more substantial water exposure, Type 4 may be appropriate, while Type 4X includes additional corrosion-resistance considerations. The exact Type should always be selected according to the environmental conditions and applicable installation requirements.

Size and Conductor Access

Environmental protection is only one part of choosing an electrical pull box. Physical configuration is equally important.

The enclosure should provide enough usable space for the intended conductors and conduit entries. Installers also need sufficient access to perform pulling and routing work without unnecessarily restricting conductor movement.

The position and size of conduit openings should be considered during the design stage. Poorly positioned entries can make conductor routing more difficult and may create unnecessary bends or congestion.

Cover or door configuration is also worth considering. A practical access arrangement can make inspection and maintenance easier while reducing the amount of time required to work inside the enclosure.

Materials and Environmental Exposure

Material selection should correspond with the installation environment. Metal enclosures can offer useful mechanical strength, while stainless steel, aluminum, and nonmetallic materials may be considered for applications with particular corrosion, weight, or environmental requirements.

However, material selection alone does not determine an enclosure's NEMA classification. The complete enclosure design must satisfy the applicable requirements for the designated Type.

For installations exposed to corrosive substances, this distinction is especially important. Choosing a corrosion-resistant material can be beneficial, but the enclosure's overall environmental protection must still match the conditions at the installation site.

Understanding NEMA Enclosures

The term NEMA enclosures refers to enclosure classifications that address defined environmental protection requirements. NEMA explains that its enclosure standards are intended to help users determine the appropriate enclosure type for an application, the features the enclosure should provide, and the tests used to demonstrate conformance.

For a pull box, this means the NEMA Type should be treated as part of the overall installation specification rather than simply a product label.

The installer should consider where the box will be placed, what environmental conditions it may encounter, how conduit will enter the enclosure, and how the enclosure will be maintained after installation.

Installation and Long-Term Performance

Even an appropriately classified enclosure needs to be installed according to applicable requirements. NEMA 250 states that covered enclosures and equipment are to be installed and used in accordance with manufacturer instructions and applicable requirements of the National Electrical Code.

Field modifications should therefore be approached carefully. New openings, conduit connections, hardware changes, or other alterations can affect the protective characteristics of the completed installation.

Maintenance should also be considered from the beginning. Covers, doors, seals, fasteners, and entry points should remain accessible for inspection and servicing throughout the enclosure's service life.

Conclusion

Selecting an electrical pull box involves more than determining its physical dimensions. The box must provide suitable conductor access while also matching the environmental conditions of the installation. Reviewing water exposure, dust, corrosion, weather, material requirements, conduit arrangement, and maintenance access can help create a more reliable installation. Understanding NEMA enclosures is particularly useful when the pull box will be exposed to environmental conditions beyond a clean indoor setting. By matching the enclosure Type to the application and following appropriate installation requirements, electrical professionals can provide practical conductor access while maintaining suitable environmental protection.
