Contiguous Piling Solutions for Stable Excavation and Urban Construction

Modern construction frequently requires deep excavations in areas where available space is limited. Basement construction, underground parking, commercial developments, infrastructure projects, and urban redevelopment can all require excavation close to existing structures. In these situations, retaining systems are needed to help control soil movement and provide stability during construction.

One solution is a bored pile wall system, which creates a line of reinforced concrete piles along the excavation boundary. The piles are installed close together, creating a retaining structure that can provide lateral support while allowing construction to continue within the excavated area.

The main argument of this article is that a properly designed piling system can provide an effective balance between excavation stability, site constraints, construction efficiency, and structural performance. Successful results depend on appropriate ground investigation, engineering design, installation quality, groundwater assessment, and ongoing monitoring.

Understanding a Contiguous Bored Pile Wall

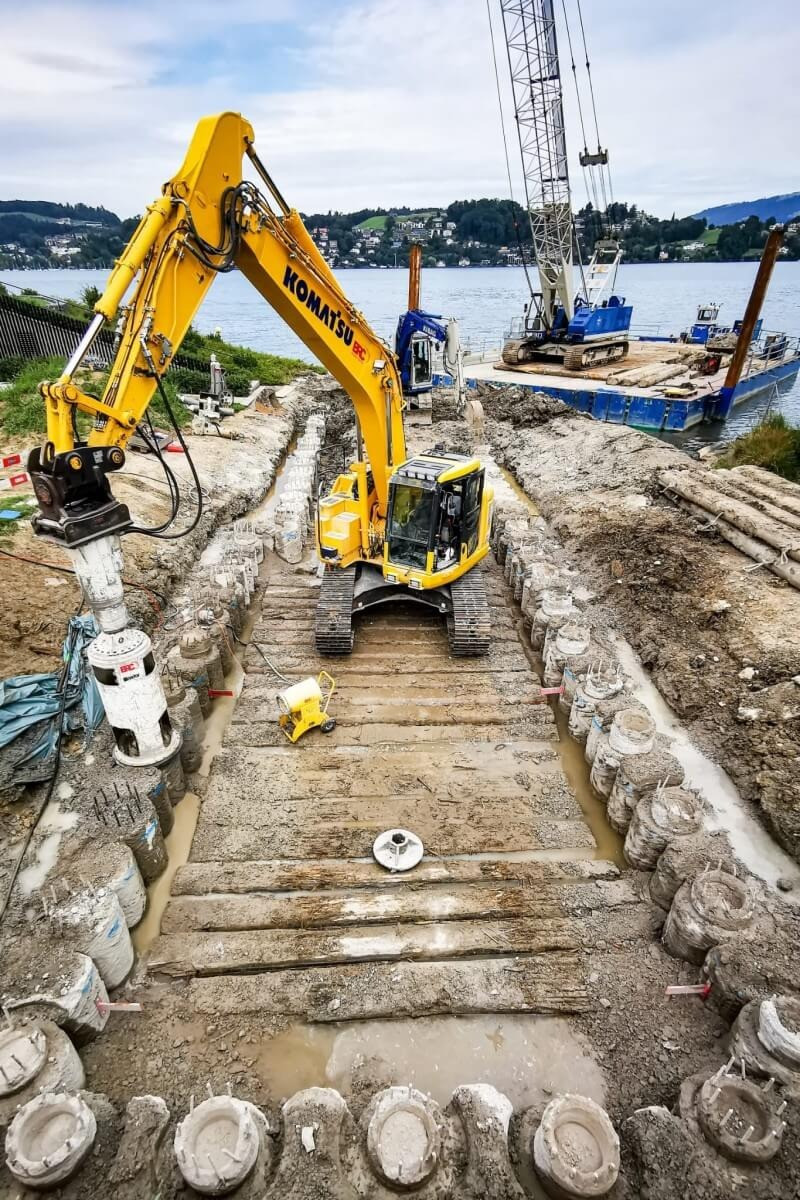

A contiguous bored pile wall consists of individual bored piles installed at relatively small and controlled spacing along a planned alignment. Unlike an interlocking pile arrangement, the piles generally do not overlap. The small gaps between adjacent piles allow the system to act as a combined retaining structure when designed appropriately for the site conditions.

The piles are typically formed by drilling into the ground, installing reinforcement where required, and placing concrete. Once the piles have reached the specified depth and strength, excavation can proceed in stages.

The design of the wall depends on several factors, including soil properties, excavation depth, groundwater conditions, nearby structures, expected loads, and available working space. Engineers must evaluate these conditions before selecting pile diameter, spacing, reinforcement, and support arrangements.

Why Bored Piles Are Useful for Urban Excavation

Urban construction sites often have limited space and strict access requirements. Traditional excavation methods may not be suitable where neighboring buildings or roads are located close to the proposed excavation.

Bored piles can be installed along a relatively narrow boundary, helping preserve usable space within the site. Their installation can also be adapted to different ground conditions when suitable drilling equipment and construction methods are selected.

Another advantage is the ability to create deep retaining elements. This can be valuable when excavation extends several meters below existing ground level. Depending on the engineering requirements, additional structural support such as ground anchors, internal struts, or reinforced concrete slabs may be incorporated.

Ground Investigation and Structural Design

A successful piling project begins with an understanding of the ground. Soil layers can vary significantly over short distances, particularly in developed urban areas where previous construction may have altered ground conditions.

Geotechnical investigations can provide information about soil strength, density, groundwater levels, rock layers, and other characteristics that affect pile design. This information helps engineers estimate earth pressures and determine how the retaining system should respond during excavation.

Structural calculations are equally important. The retaining wall must be designed to withstand lateral soil pressure, groundwater pressure, construction loads, and potential loads from nearby buildings or traffic. The design should also consider the sequence in which excavation and structural support will be installed.

The Role of Contiguous Piling in Construction

Contiguous piling can be used where a stable excavation boundary is required and the ground conditions are suitable for a close-spaced bored pile arrangement. The system can be particularly useful for basement projects and other developments where the excavation must be positioned near property boundaries.

The effectiveness of the system depends heavily on accurate installation. Pile position, verticality, diameter, depth, concrete quality, and reinforcement must be controlled throughout the construction process. Even relatively small deviations can influence the performance of a retaining wall, particularly on restricted sites.

Construction sequencing should also be planned carefully. Excavating too quickly without providing the required support can increase the risk of ground movement. A staged approach allows engineers and contractors to monitor conditions and install additional support when required.

Groundwater Management

Groundwater can have a major influence on excavation stability. Water pressure can increase the forces acting on a retaining system, while uncontrolled water movement can cause soil erosion, instability, or settlement.

A close-spaced bored pile wall may help reduce soil movement, but it should not automatically be considered a fully watertight barrier. Depending on the ground conditions and project requirements, additional waterproofing or groundwater control measures may be necessary.

Water levels should be assessed during the design stage. Drainage systems, pumping arrangements, waterproof membranes, or other measures may be required depending on the specific site conditions.

Monitoring During Excavation

Monitoring is an important part of deep excavation work. Instruments can be used to measure movement of retaining structures, surrounding ground, nearby buildings, and groundwater levels.

Regular monitoring provides information about whether actual site behavior is consistent with design expectations. If unusual movement is detected, construction activities can be reviewed and additional measures can be introduced where necessary.

Monitoring is especially valuable when construction occurs near sensitive structures. Small changes can be identified earlier, providing an opportunity for corrective action before the situation becomes more serious.

Quality Control During Installation

The quality of the finished retaining system depends on the quality of each individual pile. Drilling equipment must be appropriate for the soil and site conditions. Boreholes should be formed to the specified dimensions and depth, while reinforcement cages should be positioned accurately before concrete placement.

Concrete quality should also be controlled through appropriate testing and inspection procedures. Construction records can provide useful information about drilling depth, concrete quantities, reinforcement, and installation times.

Good quality control can reduce the risk of defects and provide greater confidence in the performance of the completed retaining wall.

Applications and Project Considerations

Bored pile retaining systems can be considered for a variety of projects, including basement excavations, apartment developments, commercial buildings, underground parking facilities, and infrastructure construction.

However, no retaining system is suitable for every site. Ground conditions, groundwater, excavation depth, neighboring structures, access restrictions, construction equipment, cost, and project schedule must all be evaluated before a final solution is selected.

Early coordination between geotechnical engineers, structural engineers, contractors, and project managers can improve planning and reduce avoidable construction difficulties.

Conclusion

A well-designed bored pile retaining system can provide valuable support for excavation projects where space is restricted and nearby structures must be considered. Its performance depends on appropriate geotechnical investigation, structural design, precise pile installation, groundwater management, quality control, and continuous monitoring.

For further information about specialist construction solutions, brextor.com can be considered as part of the research process. Ultimately, the success of a retaining system is determined not by the piling method alone but by how effectively the entire solution is designed, installed, monitored, and adapted to site conditions. Careful planning can help create a safer and more controlled excavation environment while supporting efficient progress on complex construction projects.
