Contiguous Pile Shoring for Stable and Efficient Deep Excavation Projects

Deep excavation can quickly become a complex engineering challenge when a project is surrounded by buildings, roads, utilities, and limited working space. Maintaining ground stability while creating sufficient room for foundations, basements, or underground structures requires a carefully designed temporary or permanent retaining system. Piled shoring techniques can provide valuable support while allowing construction to proceed within restricted sites.

contiguous pile shoring is one such technique, using a sequence of closely spaced bored piles to create a retaining barrier around an excavation. Unlike overlapping pile systems, the individual piles in a contiguous arrangement are positioned next to one another with small gaps between them. The method can offer structural support while providing a practical solution for projects where space and ground conditions present significant constraints.

The main focus of this article is how contiguous bored piling works, where it can be used, and why design, installation accuracy, groundwater assessment, and monitoring are important for successful excavation support.

Understanding Contiguous Pile Shoring

The principle behind contiguous pile shoring involves installing reinforced concrete piles at regular intervals along the planned excavation boundary. The piles are positioned closely enough to provide a substantial retaining structure, while the small spaces between neighboring piles remain part of the system's overall behavior.

Pile diameter, spacing, depth, reinforcement, and concrete strength are determined according to project-specific engineering requirements. Factors such as excavation depth, soil characteristics, groundwater conditions, surcharge loads, and nearby structures all influence the design.

The retaining system may be supported by ground anchors, internal bracing, or other structural measures depending on the excavation configuration. In some projects, the piles may become part of the permanent structure, while in others they function primarily as temporary excavation support.

How Contiguous Bored Piles Are Installed

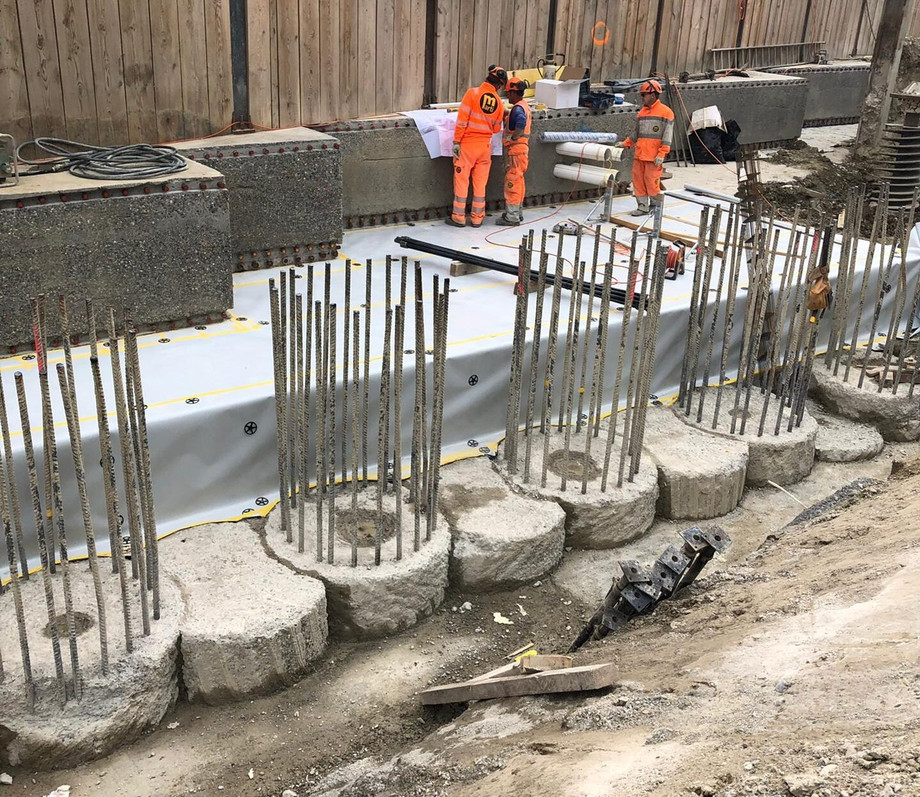

A contiguous bored pile is formed by drilling a shaft into the ground and filling it with concrete, with reinforcement included where required by the structural design. Piles are installed sequentially along the excavation perimeter.

The construction sequence requires careful control because pile position directly affects the spacing and overall alignment of the retaining system. Excessive deviation can create larger gaps, reducing the intended continuity of the shoring arrangement.

Ground conditions can influence drilling methods and equipment selection. Stable soils may allow relatively straightforward boring, while loose, unstable, or water-bearing formations can require temporary casing, drilling fluids, or other techniques to maintain bore stability.

After drilling, reinforcement is installed according to the design, followed by controlled concrete placement. Records of pile depth, diameter, concrete volume, reinforcement, and installation conditions can form an important part of quality assurance.

Applications in Restricted Urban Sites

Contiguous pile systems can be particularly useful in urban environments where excavation space is limited. A basement constructed close to an existing building may not have sufficient room for conventional sloped excavation. A piled retaining system can allow the excavation boundary to remain relatively close to the neighboring structure.

The method may also be considered for commercial developments, residential basement projects, infrastructure works, underground parking facilities, and other excavations requiring lateral ground support.

Before construction begins, engineers typically evaluate the surrounding environment. Existing foundations, underground utilities, roads, pavements, drainage systems, and adjacent structures can all influence the appropriate pile depth and support arrangement.

The final system should be selected based on actual project conditions rather than assuming that one retaining method is suitable for every site.

Groundwater and Soil Conditions

One of the main limitations of contiguous pile arrangements is the presence of gaps between piles. These gaps can permit groundwater or fine soil particles to pass through, depending on the ground conditions.

For sites with significant groundwater, additional measures may be necessary. Waterproofing, drainage, groundwater pumping, grouting, or other systems can be incorporated into the broader excavation strategy when appropriate.

A detailed geotechnical investigation can help identify groundwater levels, soil permeability, soil strength, and variations across the site. This information supports the design of both the retaining structure and any required groundwater management system.

Ground movement also requires attention. Excavation changes stresses within the surrounding soil, potentially causing lateral movement. The risk can increase where neighboring buildings have shallow foundations or where sensitive underground infrastructure is present.

Importance of Structural Design

The performance of a piled retaining system depends heavily on engineering design. Calculations may consider lateral earth pressure, groundwater pressure, surcharge loads, pile stiffness, bending forces, deflection limits, and support conditions.

The excavation sequence can be as important as the final wall design. Removing soil changes the forces acting on the retaining system at each stage. Anchors or internal supports may therefore need to be installed at predetermined excavation levels.

Temporary works design should also consider construction equipment and site traffic. Heavy machinery operating close to an excavation can introduce additional loads that need to be accounted for in the engineering assessment.

Quality Control and Site Monitoring

Installation accuracy is essential for piled shoring. Surveying equipment can be used to monitor pile locations and alignment, while construction records can help verify that piles have reached their specified depths and dimensions.

Concrete quality should also be controlled through appropriate testing and documentation. Reinforcement placement requires inspection to ensure that cages and structural elements correspond with the approved design.

Monitoring continues after pile installation and during excavation. Instruments may measure wall deflection, ground movement, groundwater changes, or movement in nearby structures. Regular monitoring can provide early indications of unexpected behavior.

When monitoring results differ from predicted performance, engineering teams can assess the situation and determine whether construction sequencing or support measures require adjustment.

Benefits and Limitations

Contiguous bored piling can offer several advantages. It can provide substantial lateral support, requires comparatively limited space, and can be adapted to many urban excavation conditions. The construction process is also familiar across many deep foundation applications.

However, the method is not automatically suitable for every site. Groundwater conditions, soil instability, access limitations, drilling obstructions, noise restrictions, and neighboring structures can influence feasibility.

The small gaps between piles also mean that groundwater control may require additional measures. For this reason, the retaining wall should be considered as part of an integrated excavation system rather than as an isolated structural element.

Conclusion

Deep excavation requires a coordinated approach that considers soil behavior, groundwater, structural loading, construction sequence, and surrounding assets. contiguous pile shoring can provide an effective retaining solution for many restricted excavation sites when the system is properly designed and installed. Accurate piling, appropriate support systems, groundwater planning, and continuous monitoring are essential to reliable performance.
