Common Scraper Floor System Problems and How to Prevent Them

Scraper floor systems are intended to carry and discharge heavy materials efficiently in harsh industrial environments. They are widely utilized in applications where huge amounts of bulk material must be carried, collected, or unloaded with minimal manual labor.

However, as with any mechanical system, constant use can cause wear, clogs, and performance concerns.

Understanding what a scraper floor is and how it works can help organizations spot issues early and maintain consistent performance.

What is a Scraper Floor?

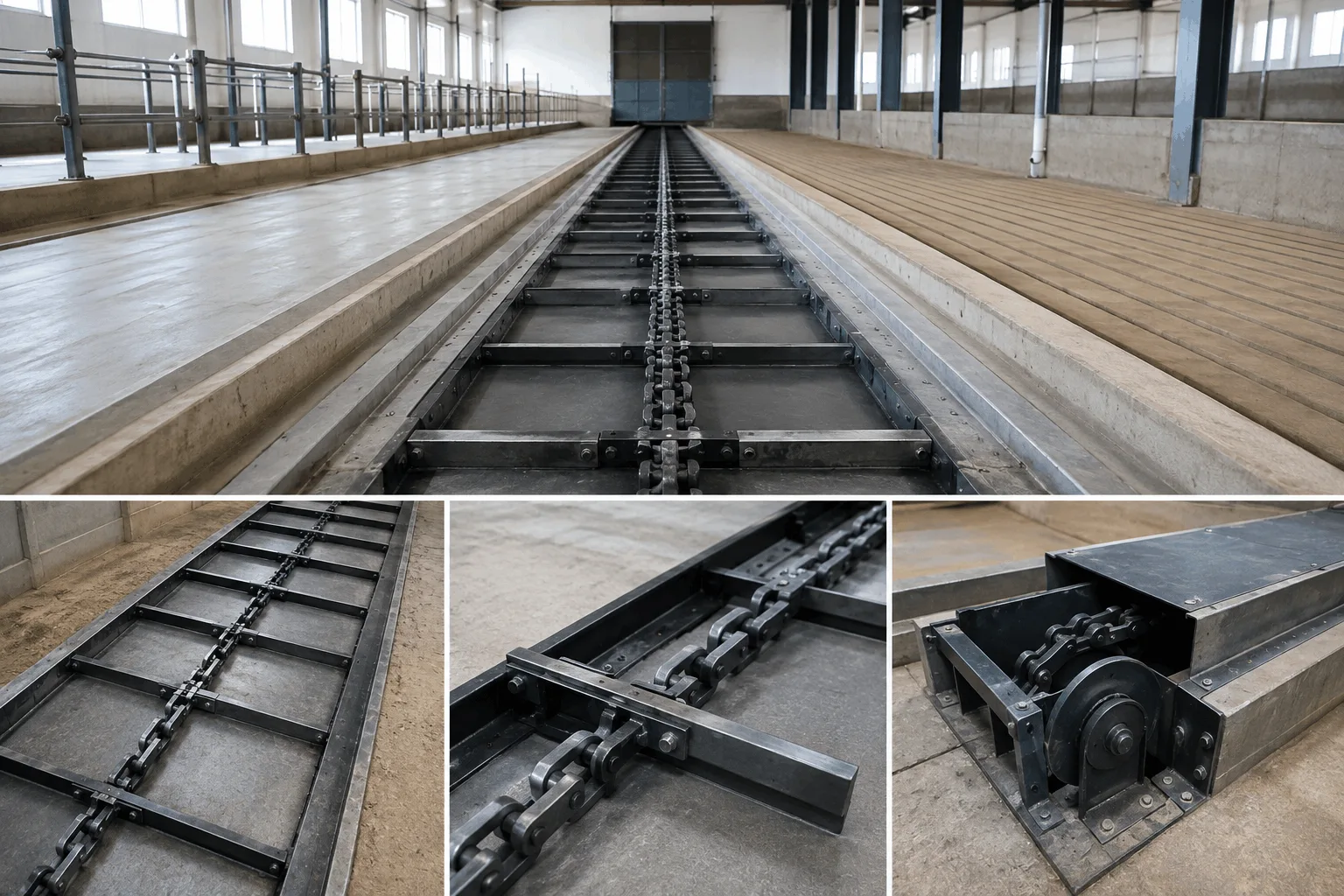

A scraper floor is a mechanical material-handling system that uses moving slats, chains, or scraping components to push material across a floor and release it at a specific location. Depending on the application, these systems can process garbage, biomass, wood chips, agricultural goods, and other bulk materials.

A typical scraper floor system consists of chains, slats, driving mechanisms, bearings, sprockets, hydraulic or mechanical systems, and control equipment. For the system to run smoothly, each component must be functioning properly.

1. Chain Wear and Stretch

One of the most typical issues is wear and stretching of the drive chains. Continuous movement with big loads causes tremendous stress on the chains. Over time, this might cause slack and impair the movement of the scraper floor.

How to Prevent It:

Regularly inspect chains for elongation, damaged links, corrosion, and unusual movement. Proper lubrication and timely replacement of worn components can help prevent more serious failures.

2. Damaged or Worn Scraper Slats

Scraper slats are continually exposed to the goods being conveyed. Abrasive, heavy, or sharp materials can wear them down over time or cause physical damage.

Damaged slats may impair the system's capacity to move material effectively and put additional strain on other components.

How to Prevent It:

Inspect the slats on a regular basis and replace any damaged or overly worn areas. Selecting durable materials appropriate for the application might further extend service life.

3. Material Blockages

Material can occasionally build on the scraper floor, especially when the system is overloaded or large objects become caught between moving components.

Blockages can increase motor or hydraulic load, perhaps causing the system to stop.

How to Prevent It:

Avoid overloading the system and adhere to the recommended operating capacity. Regularly eliminate unwanted objects and inspect areas where material tends to gather.

4. Sprocket and Drive Problems

Sprockets provide movement from the driving system to the chains. Excessive wear, misalignment, or damaged teeth can impair chain movement and result in erratic operation.

In severe circumstances, the chain may leap or disengage from the sprocket.

How to Prevent It:

Check the sprockets during routine maintenance. Look for worn teeth, strange noises, vibrations, or uneven chain movement. Replace worn sprockets before they damage other components.

5. Hydraulic or Drive System Failures

Some scraper floor systems use hydraulic machinery to provide the necessary movement. Hydraulic leaks, pressure issues, damaged hoses, and component degradation can all limit performance.

Mechanical drive systems may also encounter motor, gearbox, or connection issues.

How to Prevent It:

Check hydraulic hoses, fittings, fluid levels, motors, gearboxes, and other driving components per the manufacturer's maintenance guidelines. Leaks and odd noises should be addressed immediately.

6. Misalignment

Misalignment occurs when chains, slats, sprockets, or other components are not properly positioned. Even minor alignment issues can cause friction and hasten component wear.

How to Prevent It:

Include alignment checks in routine maintenance. Check for uneven movement, excessive vibration, odd noise, or components that wear faster on one side.

7. Extreme Wear and Tear

A scraper floor system that works continually under severe loads will naturally wear. Operating over the recommended capacity can hasten this process.

How to Prevent It:

Follow the manufacturer's operating instructions and avoid undue overload. Create a preventive maintenance schedule based on operation hours and workload rather than waiting for components to break.

8. Poor Lubrication

Moving chains, bearings, and other mechanical components require proper lubrication. Insufficient lubrication causes friction and heat, reducing component life.

How to Prevent It:

Use the prescribed lubricant and maintain the required lubrication intervals. Avoid the assumption that more lubricant is always better, as excessive lubrication might cause issues.

Importance of Preventive Maintenance

Preventive maintenance is one of the most efficient ways to keep a scraper floor system running smoothly. Regular inspections enable operators to discover minor issues before they escalate into costly breakdowns.

A practical maintenance routine can include:

• Checking the chains and sprockets.

• Inspecting scraper slats.

• Checking bearings and moving parts.

• Looking for hydraulic leaks.

• Monitoring odd sounds and vibrations.

• Checking alignment.

• Removing collected stuff.

• Lubricate components as indicated.

• Inspect drive motors and gearboxes.

Keeping maintenance records can also assist spot reoccurring issues and decide when components need to be replaced.

Conclusion

Understanding a scraper floor is beneficial for anyone in charge of industrial material handling, but knowing how to maintain the system is equally crucial. Chain wear, fractured slats, obstructions, misalignment, drive problems, and improper lubrication are some of the concerns that might degrade performance.

Regular inspection, appropriate operation, lubrication, and preventative maintenance can all help to reduce downtime and increase equipment life. A well-maintained scraper floor system can provide consistent material movement and enable smoother industrial operations for many years to come.
