Common Installation Mistakes in Substation Cable Termination Systems

Substation work rarely fails because of the big equipment. Transformers, switchgear, and protection systems are engineered carefully and tested thoroughly before they ever reach a site. The weak point is usually the connection work done in the field. Cable termination systems sit quietly in the background, yet they carry enormous responsibility. A poorly prepared cable or a loose connector can create resistance, heat, and eventually a failure that no one wants to trace during an outage.

Poor Preparation of Cable Insulation

Cable preparation sounds simple until you see how often it goes wrong. Insulation must be stripped to an exact length, the conductor needs to stay clean, and the surface cannot be nicked by tools. When insulation is removed too far back, the exposed conductor becomes vulnerable to moisture and electrical stress. When it is cut too short, the connector never seats properly. Installers who work regularly with Distribution Substation Connectors and terminals know that careful preparation determines whether the joint will remain stable for years or slowly deteriorate under load.

Incorrect Connector Selection

Substations rarely use one type of conductor. Aluminum and copper cables often share the same installation, and each behaves differently under electrical and thermal stress. Selecting a connector that does not match the conductor material or cable size introduces resistance at the joint. That resistance becomes heat during operation, and heat gradually damages insulation and hardware. Reliable Distribution Substation Connectors and terminals are designed to manage heavy current and mechanical strain, but only when they are matched correctly to the cable and the operating conditions.

Improper Torque During Installation

Torque mistakes are common, especially on busy installation schedules. A slightly loose connector may still pass a visual inspection, but under load, the contact point begins to heat. Over-tightening is just as problematic because it can distort the connector body or damage the conductor strands. Both situations shorten the life of the connection. Experienced technicians treat torque settings with the same attention they give to insulation preparation, because the electrical integrity of the joint depends on proper mechanical pressure.

Environmental Sealing Mistakes

Moisture has a way of finding the smallest path into electrical equipment. Substations sit outdoors where rain, dust, and temperature swings are part of daily life. If sealing materials are applied carelessly or protective layers are incomplete, moisture slowly enters the termination area. Over time, it weakens insulation and promotes corrosion around the conductor. The issue shows up frequently around Elbows and Substation Cable Terminations, especially where underground distribution cables meet transformers or switching equipment.

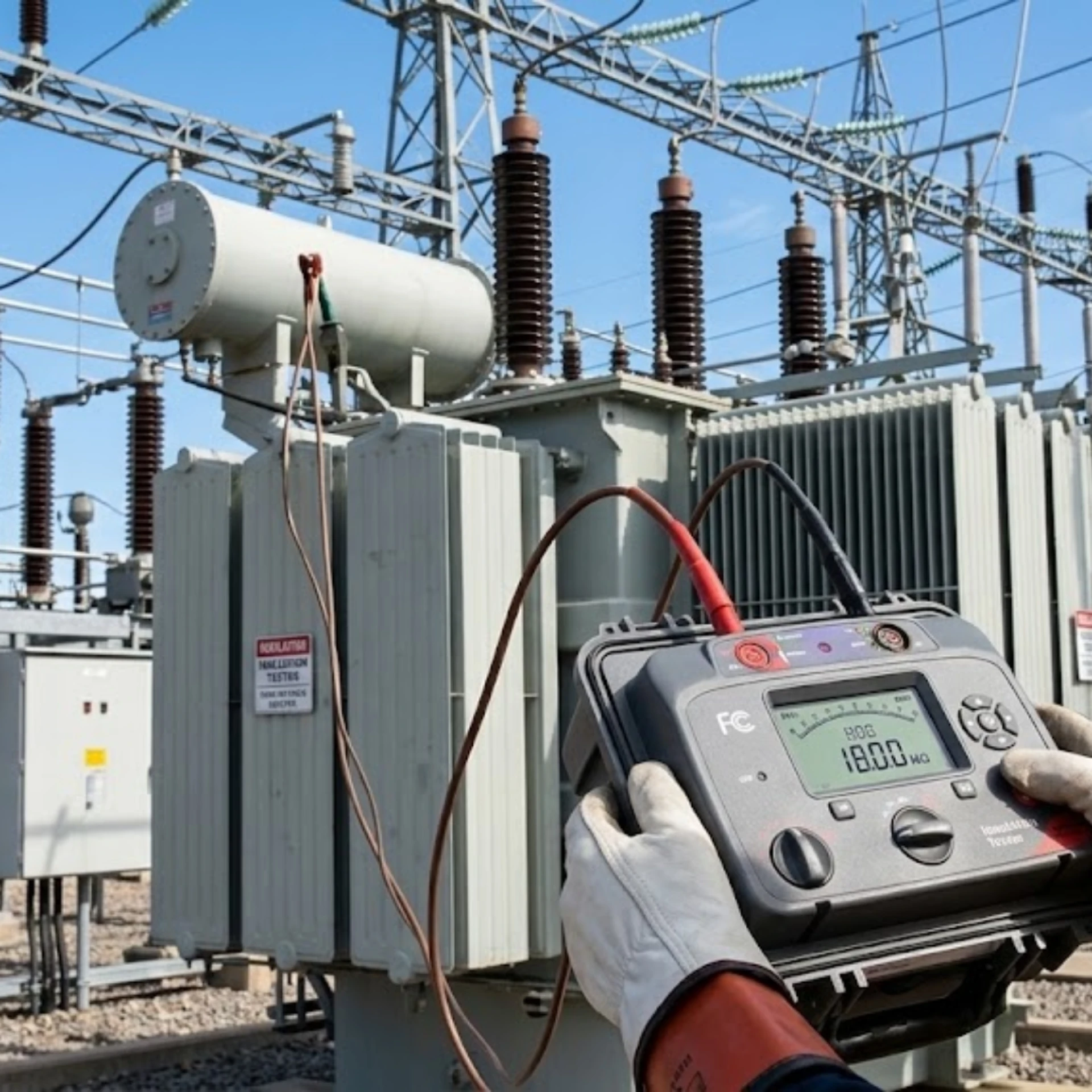

Inadequate Inspection and Testing

Most issues related to installations are not identified until the testing phase, and that is the purpose of testing. Nevertheless, this is often hurried in cases where time runs out. An actual inspection examines the connection from a number of angles. Has the conductor been inserted completely? Are the seals intact? Is the insulation clean and undamaged? The electrical testing is an added measure of confidence before the energization of the system. The omission of such checks is a roll dice, something that most of the time shows up later on in the operations.

Conclusion

Cable terminations are not considered to be very exciting, but they silently dictate whether a substation will operate in a smooth fashion or one that experiences constant reliability problems. Accuracy in cable preparation, consideration in connector choice, proper application of torque, proper sealing, and discipline in inspection are much more important than most individuals think. Leveraging on such details by teams prevents most failures that come many months or years after installation. Apfelbaum Industrial Companies know that reliable substations can be constructed as much by the prudent work of connections as by huge equipment. Whether you are implementing a new installation or are reviewing an established system, now is the time to take a closer look at the manner in which your cable terminations are being managed, as well as the work with a professional who takes the time to manage these connections with the attention they warrant.
