Coil Winding Machines for Efficient LAN Cable Production

Coil winding machines are critical for LAN cable manufacturers seeking high efficiency, consistent quality, and reduced material waste. Automatic coiling machines handle various spool sizes while maintaining precise tension and uniform layering. These machines support modern production lines, simplify cable handling, and improve downstream processes, ensuring reliable insulation and conductor quality.

Automatic Coiling Functionality

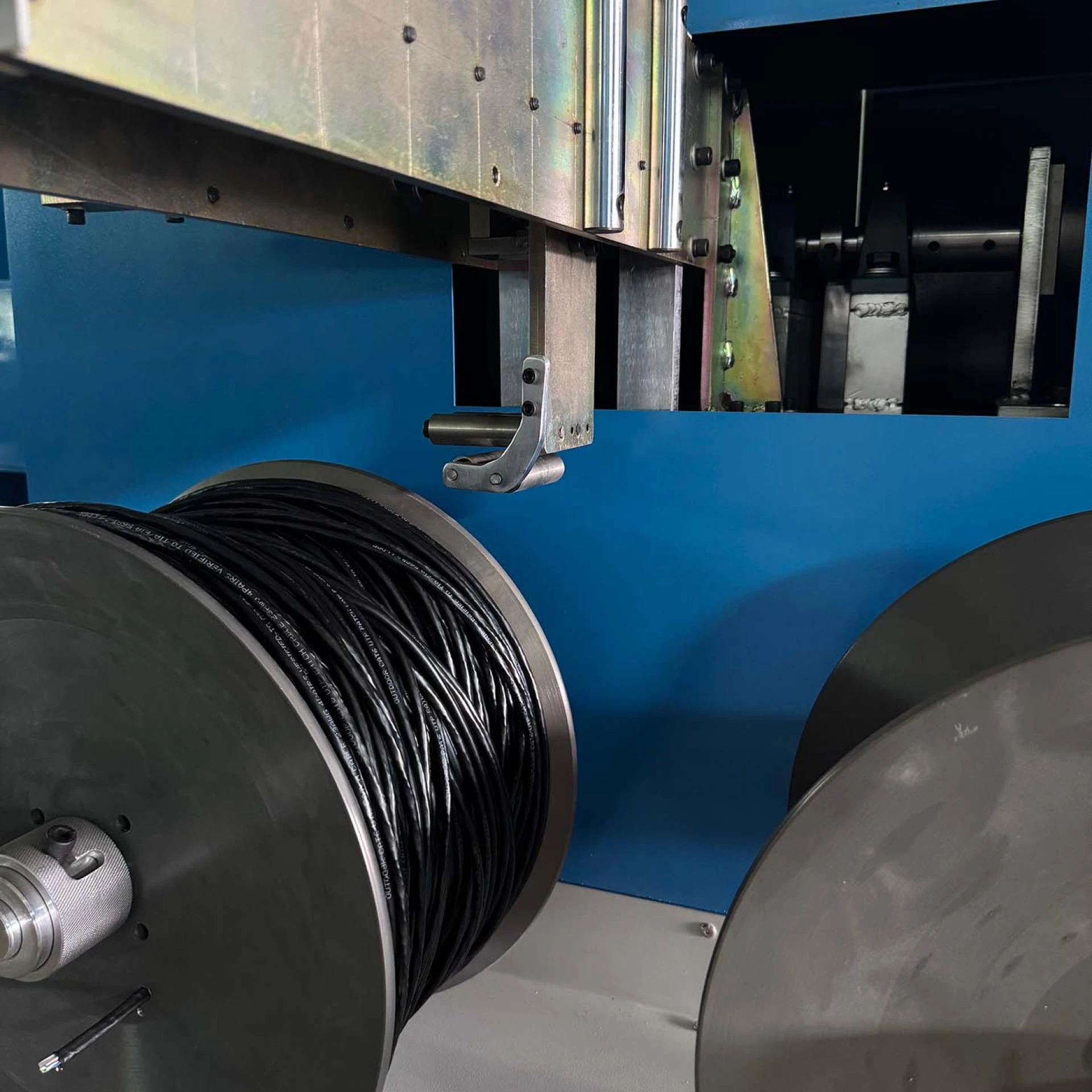

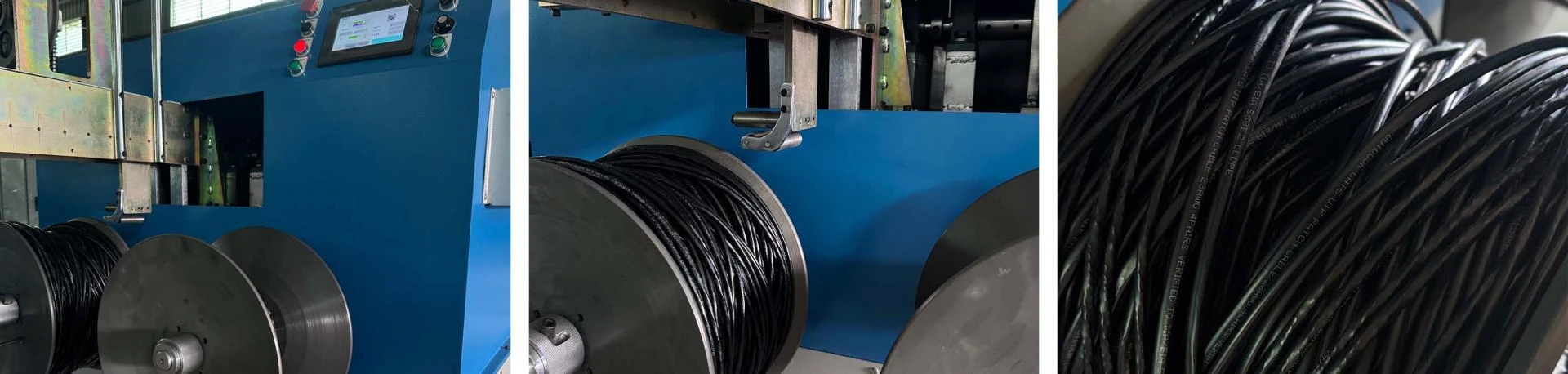

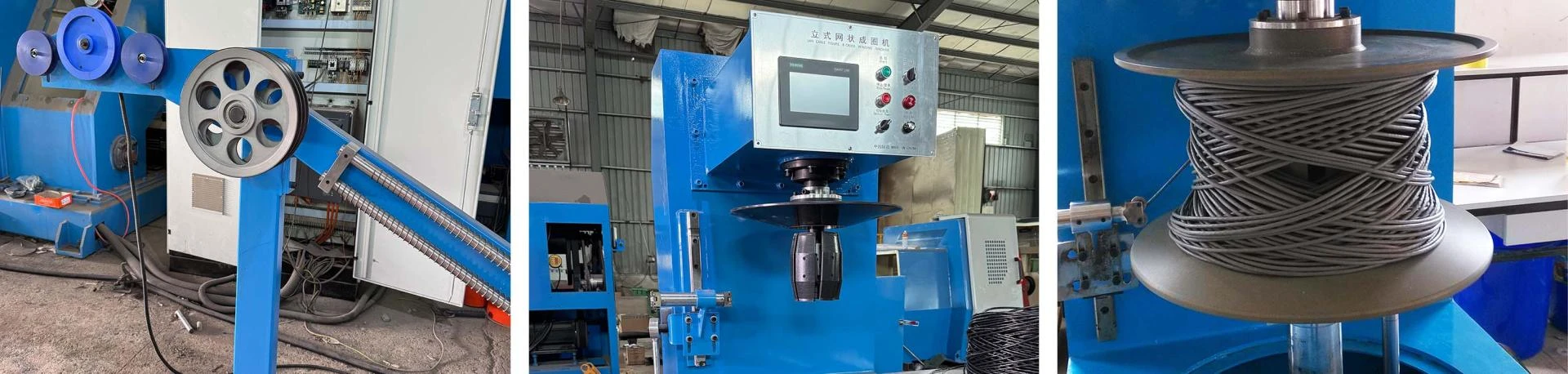

Automatic coil winding machines transfer cables into compact spools using figure-8 or cross-winding methods. The machine prevents deformation, maintains conductor integrity, and supports continuous high-speed operation. Pneumatic bobbin loading, servo drives, and sliding traverse systems enable precise positioning and uniform winding across different spool sizes. Operators can easily adjust speed, spool size, and winding mode via a PLC touchscreen interface.

Key Features

• Bi-directional coiling for flexible production
• Figure-8 and cross-winding modes for LAN cables
• Adjustable speed and tension control for consistent quality
• Supports multiple spool sizes for packaging and processing
• PLC touchscreen interface for easy setup and monitoring
• Compact, powder-coated frame for industrial environments

Quality and Efficiency

Coil winding machines maintain uniform tension to protect insulation and conductor structure. Automated control reduces misalignment, scrap, and manual labor. Real-time monitoring ensures every spool meets production standards. High-speed operation allows large-scale LAN cable production without compromising quality or reliability.

Applications in Cable Manufacturing

• Packaging finished LAN cables for shipment or storage
• Preparing spools for braiding, testing, or extrusion
• Rewinding partially used spools for recycling
• Supporting mixed-batch or custom cable production

Procurement Benefits

Investing in coil winding machines delivers measurable advantages:

• High-speed operation increases throughput
• Automated tension and traverse reduce material waste
• Flexible spool handling adapts to different cable sizes
• Touchscreen interface simplifies training and operation
• Space-saving design integrates into existing production lines

Coil winding machines enhance LAN cable manufacturing with precise winding, tension control, and automated operation. They reduce scrap, protect insulation quality, and improve production efficiency. Manufacturers benefit from consistent output, reliable performance, and seamless integration into modern automated cable production lines.
