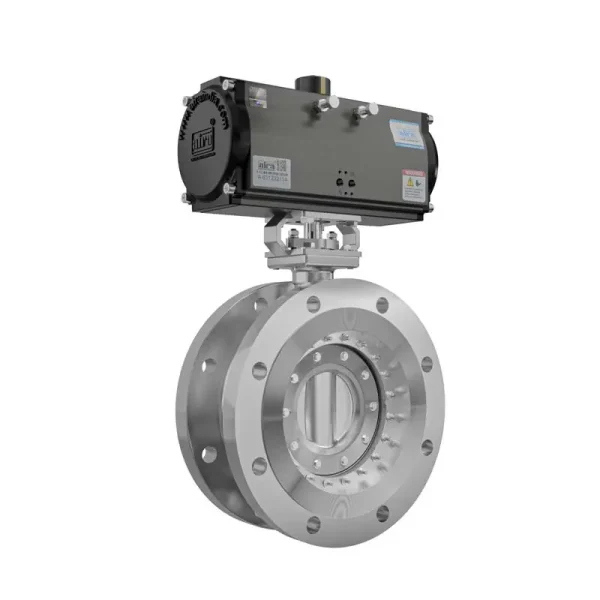

Choosing the Right Pneumatic Actuated Butterfly Valve for Your Application

Pneumatic actuated butterfly valves are widely used across industries for their reliability, quick operation, and cost-effective flow control. Whether your application involves water treatment, chemical processing, HVAC systems, food & beverage, or general industrial pipelines, choosing the right valve is essential for ensuring safe, efficient, and long-lasting operation.

Selecting the right pneumatic actuated butterfly valve requires evaluating several performance, material, and operational factors. Here’s a complete guide to help you make the best choice for your application.

Understand Your Media and Operating Conditions

Before selecting a valve, identify the type of fluid or gas flowing through your system. Consider:

• Corrosiveness (chemicals, acids, solvents)

• Temperature range

• Pressure requirements

• Cleanliness or purity standards

These factors will determine the disc material, liner/seat type, and body construction your valve must have.

Common Material Options:

• EPDM, NBR – Water, air, general services

• PTFE, Viton – Corrosive or chemical media

• Stainless steel discs – Clean or hygienic applications

• Ductile iron bodies – General industrial uses

Choose the Right Actuator Type

Pneumatic actuators come in two main configurations:

Double-Acting Actuators

• Air opens and closes the valve

• Suitable for faster operation

• Used for higher torque applications

Spring-Return (Fail-Safe) Actuators

• Air opens the valve; spring closes it during failure

• Ensures safety in emergency conditions

• Ideal for hazardous or unmanned operations

Your choice depends on safety needs, power conditions, and process risks.

Determine the Required Torque

A butterfly valve’s torque requirement depends on:

• Valve size

• Pressure rating

• Disc and seat material

• Media viscosity

Choosing an actuator with proper torque output ensures:

• Smooth operation

• No jamming or sticking

• Long actuator life

• Reduced maintenance costs

Always apply a torque safety factor recommended by the manufacturer.

Consider the Valve’s Pressure and Temperature Ratings

Ensure that the valve’s PN rating or ANSI class matches your system’s working pressure.

Also, verify the temperature range compatibility of:

• Liner material

• Disc material

• Actuator components

Overspecifying or underspecifying these can lead to premature wear or system failure.

Select the Proper Control Accessories

For precise flow regulation and automation, consider adding:

• Positioners (for modulating control)

• Limit switches (for open/close feedback)

• Solenoid valves (for actuator control)

• Air filter regulators (to protect the actuator)

These accessories improve accuracy, monitoring, and system responsiveness.

Evaluate Installation and Maintenance Requirements

Pneumatic actuated butterfly valves are designed for easy installation and low maintenance. However, consider:

• Accessible actuator mounting

• Availability of spare parts

• Maintenance intervals

• Compatibility with flanged, wafer, or lug-style pipelines

Proper selection reduces downtime and operational costs.

Assess Industry Standards and Certifications

Choose valves that comply with relevant standards such as:

• API

• ISO

• ASME

• ATEX (for hazardous environments)

These certifications ensure quality, safety, and long-term reliability.

Conclusion

Choosing the right pneumatic actuated butterfly valve for your application requires a clear understanding of media, pressure, temperature, torque, actuator type, and system design. By evaluating all these factors, you can ensure optimal performance, better flow control, enhanced safety, and longer operational life.
