Choosing the Right Air Preparation Unit for Pneumatic Applications

Compressed air is an important power source for many industrial automation systems. Pneumatic cylinders, valves, actuators, and other components depend on clean and properly regulated air to operate efficiently. However, compressed air can contain moisture, dust, oil particles, and other contaminants that may affect pneumatic equipment. An air preparation unit helps condition the compressed air before it reaches these components.

Choosing the right air preparation unit requires an understanding of the application's pressure, airflow, filtration, lubrication, and environmental requirements. A properly selected unit can help improve pneumatic system reliability, reduce component wear, and support consistent machine performance.

Understanding an Air Preparation Unit

An air preparation unit is generally used to prepare compressed air for pneumatic equipment. Depending on the system configuration, it can combine filtration, pressure regulation, and lubrication functions.

Filtration helps remove contaminants and moisture from compressed air. The regulator maintains the desired operating pressure, while a lubricator can introduce a controlled amount of lubricant into systems where lubrication is required.

These functions help create suitable air conditions for downstream pneumatic components.

Why Proper Air Preparation Matters

Pneumatic equipment can be affected by poor air quality and unstable pressure. Excessive moisture may contribute to corrosion, while particles can interfere with valves and seals. Incorrect pressure can also affect the force and speed of pneumatic actuators.

A properly configured air preparation system can help address these issues and provide more consistent operating conditions.

Key benefits include:

• • Cleaner compressed air

• • More stable operating pressure

• • Reduced contamination

• • Lower component wear

• • Improved pneumatic system reliability

• • Easier routine maintenance

The actual configuration should be based on the requirements of the pneumatic system.

Main Components

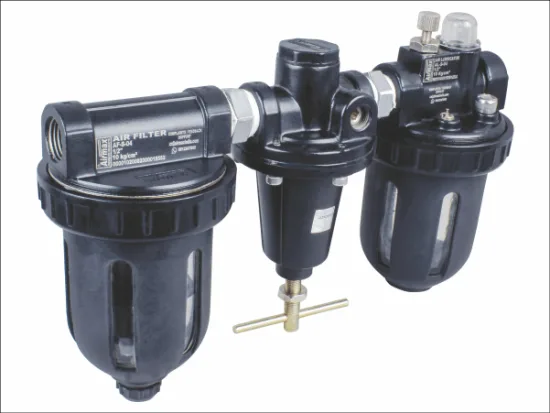

A typical air preparation arrangement may include three primary components.

Filter

The filter removes solid particles and separates moisture from compressed air. Selecting an appropriate filtration level is important because different applications require different levels of air cleanliness.

Regulator

The regulator controls downstream air pressure. Maintaining suitable pressure can help pneumatic components operate within their recommended range.

Lubricator

A lubricator supplies a controlled amount of oil mist to certain pneumatic components that require additional lubrication. However, not every modern pneumatic system requires a lubricator, so its use should be based on equipment requirements.

Selecting the Right Unit

Before selecting an air preparation unit, users should evaluate the complete pneumatic application. Flow demand is particularly important because an undersized unit can restrict airflow and create pressure drops.

Connection size should also correspond with the existing pneumatic piping. Operating pressure, filtration requirements, temperature, and environmental conditions should be reviewed as well.

For demanding industrial environments, construction materials and protective features may also influence the selection.

Flow Capacity and Pressure

The unit should provide sufficient airflow for all connected pneumatic components. When multiple cylinders, valves, and actuators operate simultaneously, the combined air demand should be considered.

Pressure regulation should also be stable under changing flow conditions. A suitable regulator can help maintain consistent downstream pressure and prevent unnecessary fluctuations.

Correct sizing can improve system efficiency and reduce potential performance problems.

Applications in Industrial Automation

Air preparation units are commonly installed in automated machinery and pneumatic systems. They may support equipment used in manufacturing, packaging, material handling, assembly, and process automation.

They can also be used with pneumatic valve systems and actuators where clean and regulated compressed air is necessary.

For applications with demanding operating conditions, Mark & Aira Trading LLC can be considered when evaluating available pneumatic system components and air preparation solutions.

Installation Considerations

Correct installation is important for achieving effective air preparation. The unit should be installed in the correct airflow direction and positioned where gauges, filters, drains, and other service components can be accessed easily.

The compressed-air supply should also be free from excessive contamination before entering the preparation system. Properly sized pipes and fittings can help minimize unnecessary pressure loss.

Following the specified installation guidelines can support consistent performance.

Maintenance Requirements

Regular maintenance helps maintain air quality and system efficiency. Filters should be inspected and replaced or cleaned according to their operating conditions. Moisture collected in filter bowls should be drained as required.

Pressure gauges and regulators should also be checked periodically for unusual readings or unstable operation. If a lubricator is used, its oil level and adjustment should be monitored.

Early identification of leaks, contamination, or pressure problems can help prevent unexpected pneumatic equipment failures.

Conclusion

Choosing the right air preparation unit is an important step in developing a reliable pneumatic system. Filtration, pressure regulation, airflow capacity, connection size, lubrication requirements, and operating conditions should all be considered before selection.

A properly sized and maintained unit can provide cleaner air, stable pressure, and better operating conditions for pneumatic components. By matching the air preparation system to the actual application requirements, industries can support efficient automation, reduce unnecessary component wear, and maintain dependable pneumatic performance.
