Ceramic Band Heater 101: The Workhorse Behind Plastic Processing Lines

Anyone who's spent time around an injection molding machine or an extrusion barrel has probably seen one wrapped around the equipment without giving it much thought. That's the thing about a ceramic band heater: it does its job quietly, clamped tight around a cylinder, radiating heat into whatever it's wrapped around, and nobody notices until it stops working.

What This Heater Actually Is

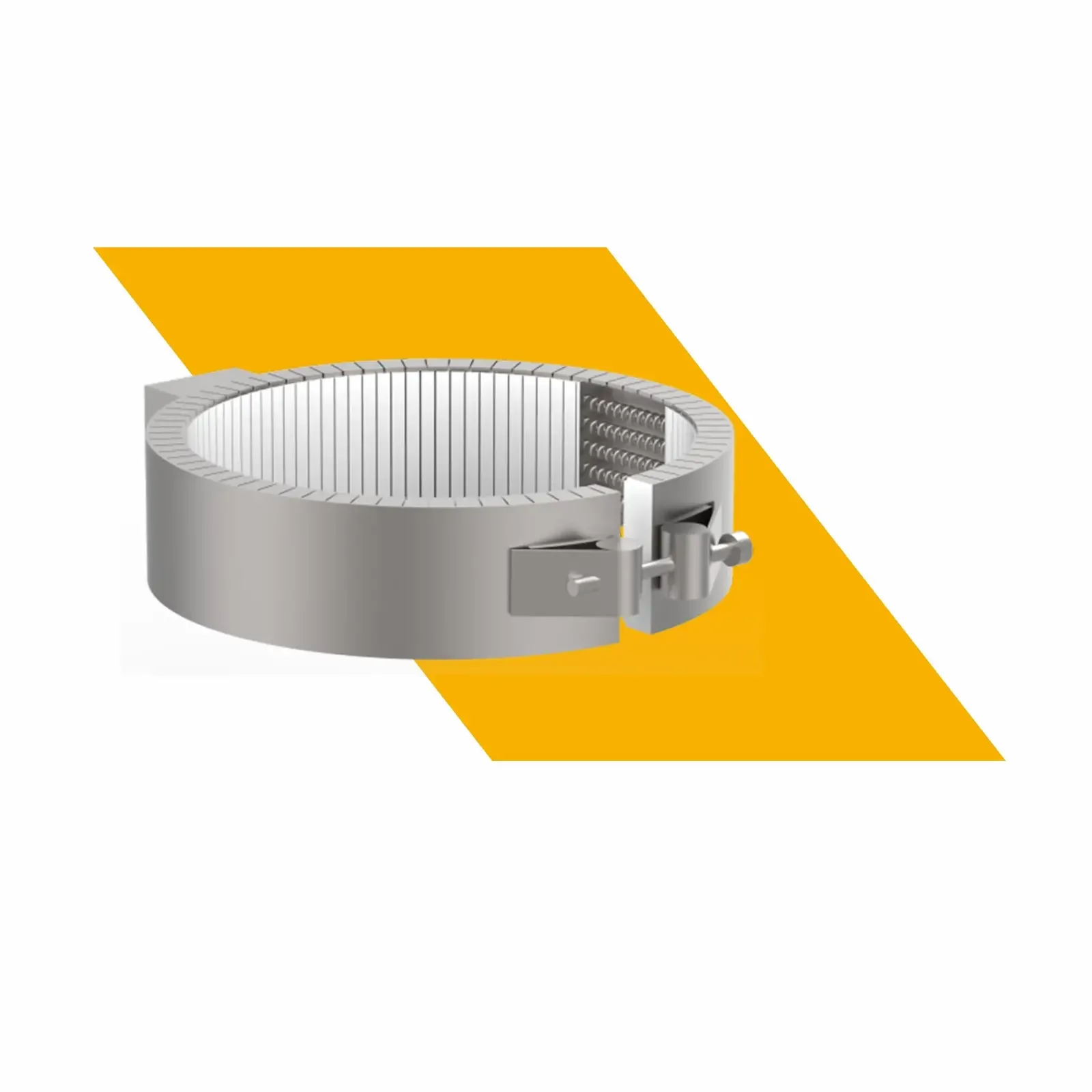

Picture a ring made of small interlocking ceramic tiles, almost like a miniature brick wall curved into a circle. Inside that ring sits a nickel-chrome resistance wire, wound carefully so heat spreads evenly across the whole band. Wrap the assembly in a ceramic fibre mat, cover it with a stainless steel or aluminised steel jacket, and that's essentially the anatomy of a ceramic band heater. Simple in concept, but the execution matters a lot more than it looks.

Why It Heats the Way It Does

Here's something that surprises people who are new to industrial heating: this type of heater doesn't need a perfectly tight fit against the barrel to work well. Unlike some heating elements that rely purely on direct contact, a ceramic band heater transfers energy two ways at once: through conduction where it touches the surface and through radiation where it doesn't. That dual approach is part of why it handles slightly uneven or irregular barrel surfaces without much fuss.

Temperature Range and Efficiency

Most units top out around 648°C, which covers a solid chunk of medium-to-high temperature industrial needs. The built-in ceramic fibre insulation isn't just there to protect the outer jacket — it actually cuts electrical consumption by roughly 20%, since less heat escapes outward and more of it goes where it's supposed to. For plants running heaters continuously across multiple barrels or extruders, that efficiency gain adds up fast on an energy bill.

Where These Heaters Show Up

Plastics processing is the obvious one: injection moulding machines, extrusion barrels, nozzles, but that's far from the only place a ceramic band heater earns its keep. Packaging equipment, pipeline heating setups, and even certain semiconductor manufacturing processes rely on the same basic design. The reason it is used in so many industries is its flexibility: these heaters can be built with different terminal styles, clamping mechanisms, cut-outs, and hole placements depending on what the application actually demands.

Choosing One That Fits

Not every ceramic band heater configuration suits every job. Smaller diameters generally favor a one-piece design, while larger cylinders often need a two-piece build just to make installation practical. Termination style, sheath material, and wattage all shift depending on the barrel size and the temperature the process actually calls for. Getting these details wrong usually means either wasted energy or a heater that struggles to keep up with demand.

Final Thoughts

It's easy to overlook a component that just sits quietly doing its job, but a well-built ceramic band heater can make a real difference in energy costs and process consistency over time. The construction quality, insulation, and configuration options all play into how much value a plant actually gets out of it. Tempsens India manufactures a wide range of these heaters with configurable terminal styles and insulation options built for demanding industrial use, and for anyone comparing suppliers, Tempsens India's engineering-backed approach to ceramic band heater design is worth factoring into the decision.
