Blueprint for Silence: Mastering Anechoic Chamber Design

Imagine stepping into a room so quiet that you hear your own heartbeat, the rustle of your clothes, and the faint whisper of blood flowing through your ears. This is not science fiction—it is the reality inside a properly constructed anechoic chamber. But creating such a space requires far more than sticking foam wedges on walls. Anechoic Chamber Design is a precise engineering discipline that blends physics, architecture, and materials science. A poorly designed chamber leaks sound, ruins test results, and wastes significant investment. For laboratories, research institutions, and product development centers seeking true acoustic isolation, understanding the fundamentals of Anechoic Chamber Design is essential. Industry leaders like SomNandi Industries have mastered this craft, delivering chambers that perform to international standards.

The Core Principles of Anechoic Chamber Design

At its heart, Anechoic Chamber Design pursues one goal: creating a free-field environment where sound waves travel outward without any reflections. In everyday rooms, sound bounces off walls, ceilings, and floors, creating echoes and standing waves. An anechoic chamber eliminates these reflections through two primary strategies: absorption and isolation.

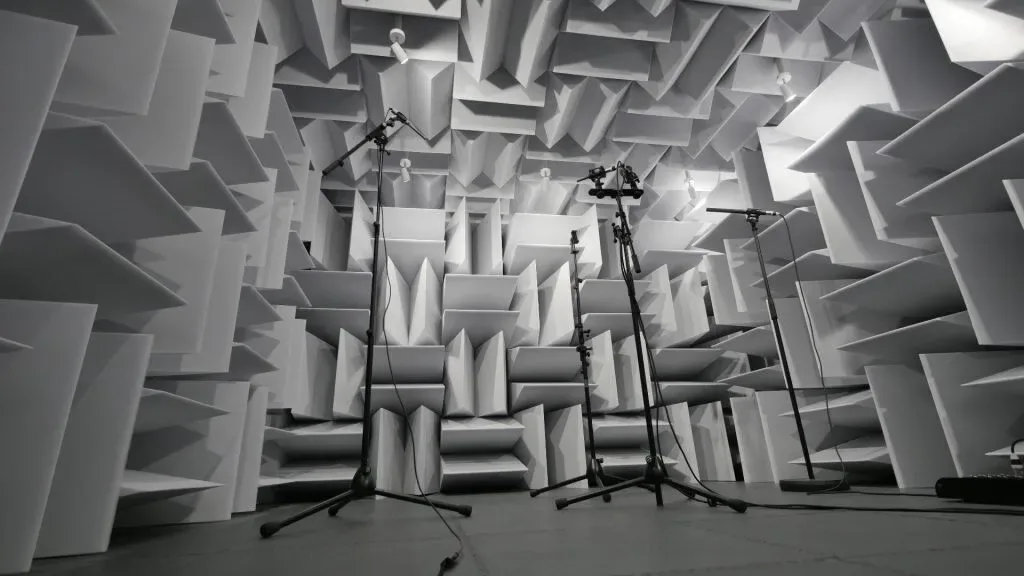

The absorption side involves lining every interior surface with specially shaped wedges or pyramids made from acoustic foam or fiberglass. These wedges gradually trap sound waves, converting their energy into minute amounts of heat. The deeper and longer the wedges, the lower the frequency they can absorb. A full anechoic chamber includes a suspended mesh floor with wedges beneath it, while a semi-anechoic design uses a solid reflective floor for testing heavy machinery.

The isolation side ensures external noise—traffic, construction, even wind—never enters the chamber. This requires a "room-within-a-room" construction, where the inner chamber sits on vibration-damping mounts, completely decoupled from the outer building structure. Massive concrete or steel walls block airborne noise, while floating floors stop ground vibrations.

Critical Parameters in Anechoic Chamber Design

Professional Anechoic Chamber Design revolves around several measurable parameters. The cut-off frequency is the lowest frequency the chamber can accurately measure, determined by wedge depth and chamber size. A chamber designed for speaker testing might have a 100Hz cut-off, while one for automotive NVH analysis needs performance down to 50Hz or lower.

The background noise level, measured in dBA, defines just how quiet the chamber becomes. The famous Orfield Laboratories chamber achieves -9.4 dBA—literally quieter than absolute silence. Most industrial chambers target 10-15 dBA, still far quieter than a whisper. Achieving these numbers demands meticulous attention to every penetration: electrical conduits, ventilation ducts, data cables, and viewing windows must all be acoustically treated. Even a pinhole leak can destroy performance.

Why Anechoic Chamber Design Requires Customization

No two anechoic chambers look identical because no two testing needs match perfectly. A chamber for measuring smartphone speaker performance differs dramatically from one for testing truck engine noise. Size matters tremendously. Larger chambers allow testing of bigger products and provide longer measurement distances, but they cost exponentially more to build and condition.

The wedge material also varies. Open-cell polyurethane foam offers excellent high-frequency absorption but can degrade under UV light or high humidity. Fiberglass wedges handle moisture better and withstand higher temperatures, making them suitable for industrial settings. SomNandi Industries brings decades of experience tailoring Anechoic Chamber Design to specific applications, ensuring clients pay only for the performance they genuinely need.

Common Mistakes to Avoid

Many first-time buyers underestimate ventilation requirements. A sealed chamber traps heat from equipment and human occupants, quickly becoming unbearable. Proper Anechoic Chamber Design incorporates silenced HVAC systems that move air without transmitting sound. Another frequent oversight is lighting. Standard fluorescent fixtures hum and buzz, ruining low-noise measurements. Special DC-powered LED lighting with remote ballasts is essential.

Door design represents another critical element. An anechoic chamber door must be heavy, airtight, and fitted with multiple sealing gaskets. It often weighs hundreds of kilograms and requires specialized hinges and latches. Skimping on door quality compromises the entire chamber's performance.

The Investment Value of Professional Design

Building an anechoic chamber is a significant capital expense, but cutting corners on Anechoic Chamber Design proves far more expensive in the long run. Retrofitting a poorly performing chamber often costs more than building correctly the first time. Furthermore, inaccurate test results lead to flawed product designs that fail in the marketplace. When you choose experienced designers like SomNandi Industries, you receive guaranteed acoustic performance, comprehensive documentation, and ongoing support. Your chamber becomes a reliable tool for innovation rather than a constant source of frustration.

Conclusion

Anechoic Chamber Design is neither magic nor mystery—it is applied physics executed with precision. By understanding the principles of absorption, isolation, and cut-off frequency, you can specify a chamber that delivers accurate, repeatable measurements for decades. Whether you are testing hearing aids, jet engines, or smartphone speakers, the right chamber design makes all the difference. Partnering with proven experts like SomNandi Industries ensures your anechoic chamber becomes a competitive advantage, unlocking insights that ordinary rooms simply cannot provide. Silence, when engineered correctly, speaks volumes.
