Best Practices for Selecting Mineral Insulated Thermocouple Cables

If you've ever stood in front of a supplier's catalog trying to figure out which temperature sensing cable actually fits your process, you know the struggle is real. There are sheath materials, gauges, junction types, and calibration grades flying at you all at once. So let's break down how to actually pick the right one without losing your mind, or your budget.

Why the Right Cable Choice Even Matters

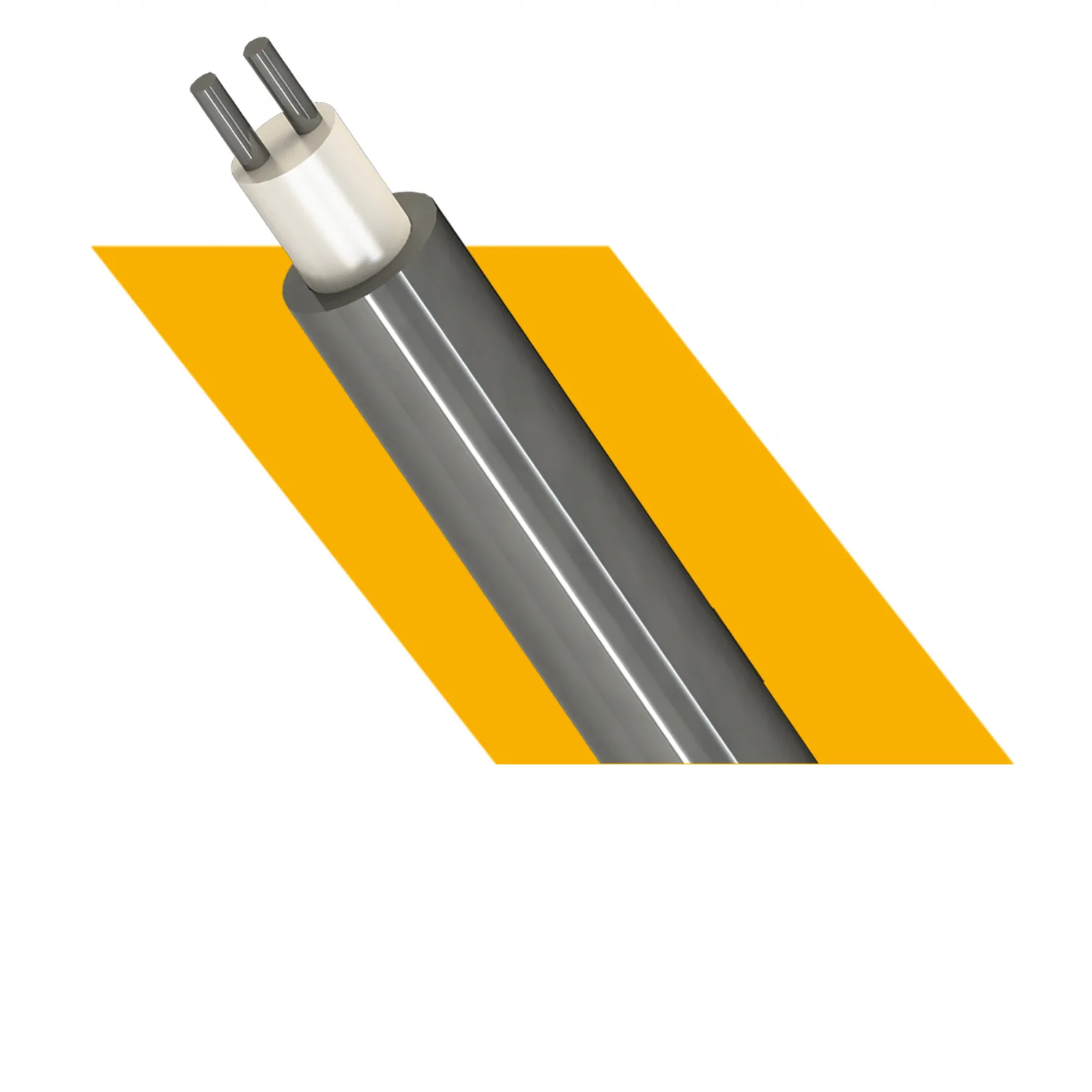

Picking a mineral insulated thermocouple cable isn't just a box-ticking exercise. Get it wrong, and you're looking at drift in readings, premature failure, or worse, a safety issue in a high-heat environment. Get it right, and the thing just quietly does its job for years, even in nasty conditions like vibration, moisture, or corrosive atmospheres. That's really the whole appeal of this style of sensor cable, it's built tough from the inside out, with compacted mineral oxide packed between the conductor and the outer metal sheath.

Start With Your Temperature Range and Environment

Before anything else, nail down the actual operating conditions. Are we talking about a furnace pushing past 1000°C or a milder industrial process? The alloy sheath (Inconel, stainless steel, etc.) needs to match both the heat and any chemical exposure it'll face. This is where a lot of buyers trip up; they pick a mineral insulated thermocouple cable rated for general use and then wonder why it degrades fast in a corrosive or oxidizing atmosphere.

Get the Sheath Diameter and Gauge Right

Thinner isn't always better, and thicker isn't automatically more durable. Smaller diameter sheathed thermocouple wire responds faster to temperature changes, which is great for quick-reacting processes, but it can be more fragile in rough mechanical environments. If your application involves bending, tight routing, or vibration, you'll want to balance responsiveness against physical durability.

Pick the Right Junction Type

Grounded, ungrounded, or exposed junction: each has a purpose. Grounded junctions respond quickly and work well in high-pressure or fast-cycling setups. Ungrounded types offer better electrical isolation, which matters a lot in noisy electrical environments. Exposed junctions are the fastest responders but skip the protective sheath at the tip, so they're only good where corrosion isn't a concern.

Don't Skip Calibration and Accuracy Classes

Not every job needs the tightest tolerance available. But for critical processes — pharma, aerospace, and food safety, going with a mineral insulated thermocouple assembly that meets a recognized accuracy class (like Class 1 per IEC standards) can save you a lot of headaches down the line. Always ask for calibration certificates, and don't just take a spec sheet's word for it.

Think About Installation and Lead Length

Long cable runs introduce their own quirks, signal degradation, extra cost, and installation complexity. Where possible, keep the mineral-insulated sensor cable run as short and direct as practical, and use proper extension or compensating cable for longer distances instead of stretching the primary sensor cable itself.

Wrapping It Up

At the end of the day, choosing a mineral insulated thermocouple cable comes down to matching material, junction type, and accuracy to your actual process — not just grabbing whatever's cheapest or most familiar. Take the time to spec it properly, and it'll pay off in reliability for years. If you'd rather skip the guesswork entirely, it's worth talking to specialists who live and breathe this stuff — Tempsens Germany has been a solid name in temperature sensing solutions, and their team can help you land on the right cable for your exact application instead of leaving it to chance.
