AFM Atomic Force Microscopy: A Complete Guide to Nanoscale Imaging and Analysis

In the world of nanotechnology and surface science, AFM Atomic Force Microscopy stands out as one of the most powerful tools for exploring materials at the nanoscale. From academic research labs to advanced industrial facilities, this technology helps scientists visualize, measure, and analyze surfaces with atomic-level precision. If you’re looking to understand how AFM works, where it’s used, and why it matters, this complete guide breaks it down in a clear and practical way.

What Is AFM Atomic Force Microscopy?

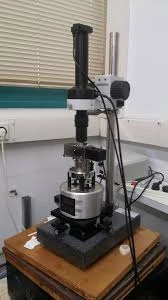

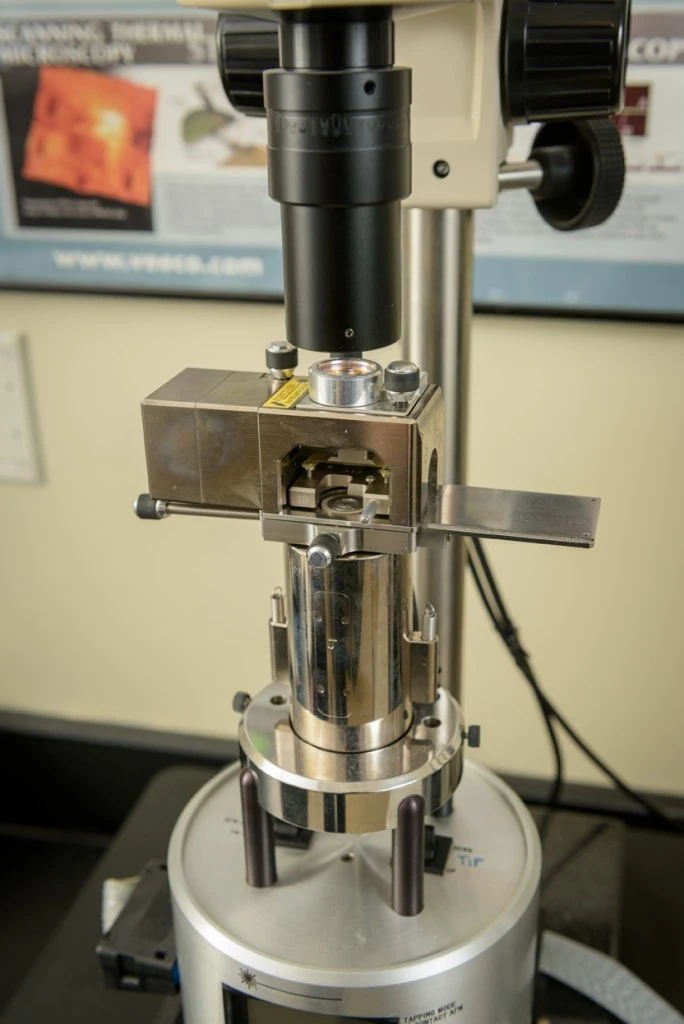

AFM Atomic Force Microscopy is a high-resolution imaging technique that maps surfaces by scanning a sharp probe across a sample. Unlike optical microscopes that rely on light, AFM uses mechanical interactions between the probe tip and the surface to generate detailed topographical images.

The core components include:

• A sharp cantilever tip (often just a few nanometers wide)
• A laser detection system
• A piezoelectric scanner
• A feedback control system

As the probe moves across the surface, tiny deflections in the cantilever are recorded. These movements are converted into high-resolution images that reveal surface structure, roughness, and mechanical properties.

How AFM Works

The process behind AFM Atomic Force Microscopy is both precise and elegant. The cantilever tip interacts with the sample surface through atomic forces such as van der Waals forces, electrostatic forces, or mechanical contact.

There are three primary operating modes:

1. Contact Mode

The probe remains in direct contact with the surface. This mode provides high-resolution imaging but may affect softer samples.

2. Tapping Mode

The cantilever oscillates near its resonance frequency, lightly tapping the surface. This reduces damage and is widely used for biological and polymer samples.

3. Non-Contact Mode

The probe hovers just above the surface without touching it, detecting attractive forces.

Each mode serves specific applications depending on the material type and research objective.

Why AFM Is Important in Nanoscale Research

The ability of AFM Atomic Force Microscopy to deliver three-dimensional surface data makes it essential in multiple industries. Unlike electron microscopy, AFM does not require conductive coatings or vacuum environments, which allows more flexibility.

Key advantages include:

• Atomic-level resolution
• Minimal sample preparation
• Works in air, vacuum, or liquid
• Measures mechanical, electrical, and magnetic properties

Because of this versatility, AFM has become a standard tool in nanotechnology, materials science, and life sciences.

AFM Imaging Liquid: Studying Samples in Real Conditions

One of the biggest breakthroughs in nanoscale research is AFM imaging liquid. Traditional microscopy methods often require dry or vacuum environments. However, many biological processes occur in fluid environments.

With AFM imaging liquid, researchers can:

• Observe live cells in their natural state
• Study protein interactions
• Analyze biomolecular structures
• Monitor chemical reactions in real time

This capability is especially valuable in biomedical research and pharmaceutical development. Imaging in liquid helps preserve sample integrity and produces more realistic data compared to dry imaging methods.

Applications of AFM Atomic Force Microscopy

The applications of AFM Atomic Force Microscopy continue to expand across industries:

Materials Science

Engineers use AFM to measure surface roughness, adhesion, and mechanical strength of coatings, thin films, and nanomaterials.

Semiconductor Industry

AFM helps inspect wafer surfaces, detect nanoscale defects, and ensure fabrication accuracy.

Biotechnology

With AFM imaging liquid, scientists can examine DNA strands, protein folding, and cellular membranes.

Energy Research

AFM assists in studying battery materials, solar cells, and nanostructured catalysts.

These wide-ranging uses make AFM a foundational tool in both research and industrial quality control.

The Importance of AFM Training

Operating an atomic force microscope requires technical knowledge and hands-on experience. Proper afm training ensures accurate measurements, correct mode selection, and reliable data interpretation.

Good afm training programs typically cover:

• Instrument setup and calibration
• Probe selection and handling
• Imaging in air and AFM imaging liquid
• Data analysis and troubleshooting
• Advanced measurement techniques

Without structured afm training, users may struggle with artifacts, poor resolution, or misinterpretation of results. Professional instruction shortens the learning curve and improves research outcomes.

Choosing the Right AFM System

When selecting an AFM system, it’s important to consider:

• Application requirements
• Sample type
• Imaging environment (air or liquid)
• Automation features
• Technical support and service

Brands like Molecular Imaging provide advanced AFM solutions designed for both research institutions and industrial labs. A reliable manufacturer not only delivers high-performance instruments but also supports users with expert afm training and technical assistance.

Future of AFM Technology

The future of AFM Atomic Force Microscopy is moving toward higher speed, greater automation, and integrated multi-mode analysis. Developments in AI-based image processing and automated scanning are making AFM more user-friendly and efficient.

Researchers are also combining AFM with spectroscopy and electrical measurements to gather more detailed nanoscale information from a single platform. These advancements are expanding the role of AFM in nanotechnology and life sciences.

Final Thoughts

AFM Atomic Force Microscopy has transformed the way scientists explore the nanoscale world. Its ability to produce ultra-high-resolution images, operate in different environments—including AFM imaging liquid—and measure multiple material properties makes it an indispensable tool in modern research.

With proper afm training and support from trusted providers like Molecular Imaging, researchers can unlock the full potential of this powerful technology. As nanoscale innovation continues to grow, AFM will remain at the forefront of imaging and analysis, helping scientists push the boundaries of discovery.
