Introduction:
In the realm of industrial and marine engineering, boilers stand as indispensable components, providing the necessary power for a wide array of applications. Among the various types of boilers, Scotch Marine Boilers hold a significant position due to their robust design and efficiency. This blog aims to delve into the intricate workings of Scotch Marine Boilers, unraveling their mechanisms and dissecting the main components that constitute these vital systems.
Understanding Scotch Marine Boilers:
Scotch Marine Boilers, renowned for their reliability and durability, are a type of fire-tube boiler widely employed in marine applications, as well as industrial settings. Their design traces back to the early 19th century, pioneered by the Scottish engineer, Robert Stevenson. Over the years, they have undergone refinements, yet the fundamental principles remain unchanged.
How do Scotch Marine Boilers Work?

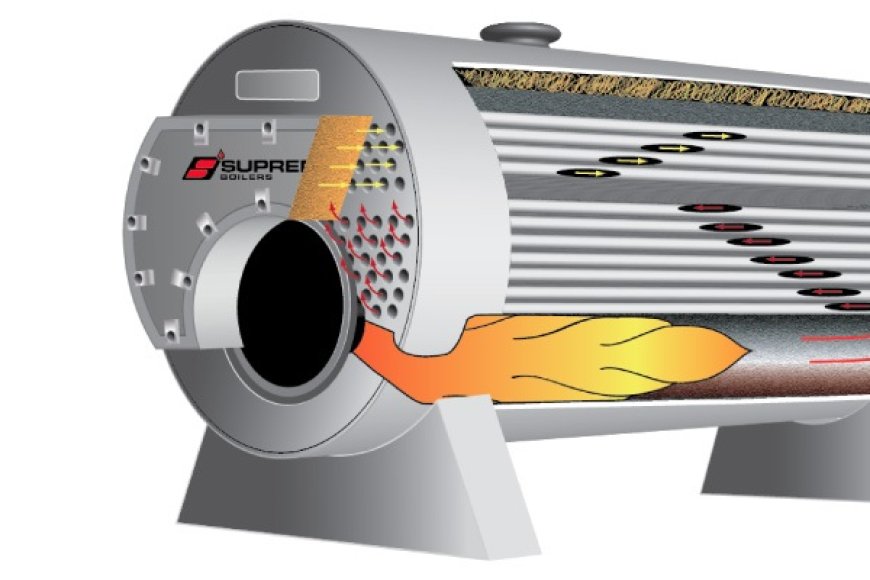

At the core of a Scotch Marine Boiler lies a cylindrical shell, typically made of steel, housing a series of tubes through which water circulates. The boiler operates by utilizing the heat generated from the combustion of fuel, usually oil or gas, within the furnace chamber. This heat energy transfers to the water surrounding the tubes, causing it to vaporize into steam.
The combustion process initiates in the furnace, where fuel is mixed with air and ignited, generating a steady flame. The hot gases produced travel through the tubes, transferring their heat to the water enveloping them. As the water absorbs heat, it undergoes phase transition, transforming into steam. The steam thus generated accumulates in the upper section of the boiler, known as the steam drum.
Once sufficient steam pressure builds up, it is ready for utilization. The steam can be directed towards various applications, such as powering turbines for propulsion in marine vessels or driving industrial machinery.
Main Components of a Boiler System:
-
Furnace: The furnace serves as the combustion chamber where fuel and air mix and ignite, generating heat energy.
-
Shell: The shell forms the main body of the boiler, providing structural support and housing the internal components.
-
Tubes: These are the conduits through which water circulates, absorbing heat from the combustion gases and transforming into steam.
-
Steam Drum: Positioned at the top of the boiler, the steam drum collects the steam generated by the heat transfer process. It also serves as a reservoir for steam storage.
-
Combustion Chamber: This is where the fuel-air mixture ignites, initiating the combustion process. It is designed to facilitate efficient and controlled combustion.
-
Chimney or Stack: The chimney provides an outlet for the combustion gases and facilitates the expulsion of exhaust gases from the boiler.
-
Control Panel: The control panel houses the various instruments and controls necessary for monitoring and regulating the boiler's operation, including pressure gauges, temperature sensors, and safety devices.
-
Safety Valves: Safety valves are crucial components designed to relieve excess pressure within the boiler to prevent potential explosions or damage.
-
Feedwater System: This system is responsible for supplying water to the boiler, ensuring a continuous and adequate supply for steam generation.
-
Blowdown System: The blowdown system facilitates the removal of impurities and sediments from the boiler to maintain water quality and prevent corrosion.
Elevating Efficiency and Performance
Supreme Boilers takes pride in its EASCO ESP Series, an exemplary addition to the Scotch Marine Boilers lineup. These boilers, meticulously crafted for commercial steel heating applications, exemplify the pinnacle of engineering excellence and efficiency. Offering versatility and reliability, the EASCO ESP Series caters to a spectrum of heating needs, whether for low-pressure steam or hot water installations. Engineered with precision and constructed in compliance with ASME Boiler and Pressure Vessel Code requirements, these boilers ensure safety and performance. With features like fireside heating surface, quiet operation, efficient fire tubes, and wet back construction, the EASCO ESP Series stands as a testament to Supreme Boilers' commitment to excellence. Moreover, the option for field-erected or shop-built package installations adds to their flexibility and convenience. For those seeking superior performance and durability in their heating solutions, Supreme Boilers emerges as the trusted partner with a legacy of over 90 years of combined experience. Choose Supreme Boilers and experience the epitome of reliability, efficiency, and innovation in Scotch Marine Boilers.
Conclusion:
Scotch Marine Boilers stand as stalwart pillars in the realm of steam generation, providing reliable power for marine and industrial applications. Understanding their intricate workings and the essential components that comprise these systems is crucial for ensuring their safe and efficient operation. As technology continues to advance, Scotch Marine Boilers evolve, yet their timeless efficiency and robustness continue to make them indispensable assets in various sectors.
