5 Factors to Consider Before Buying a Cartridge Heater

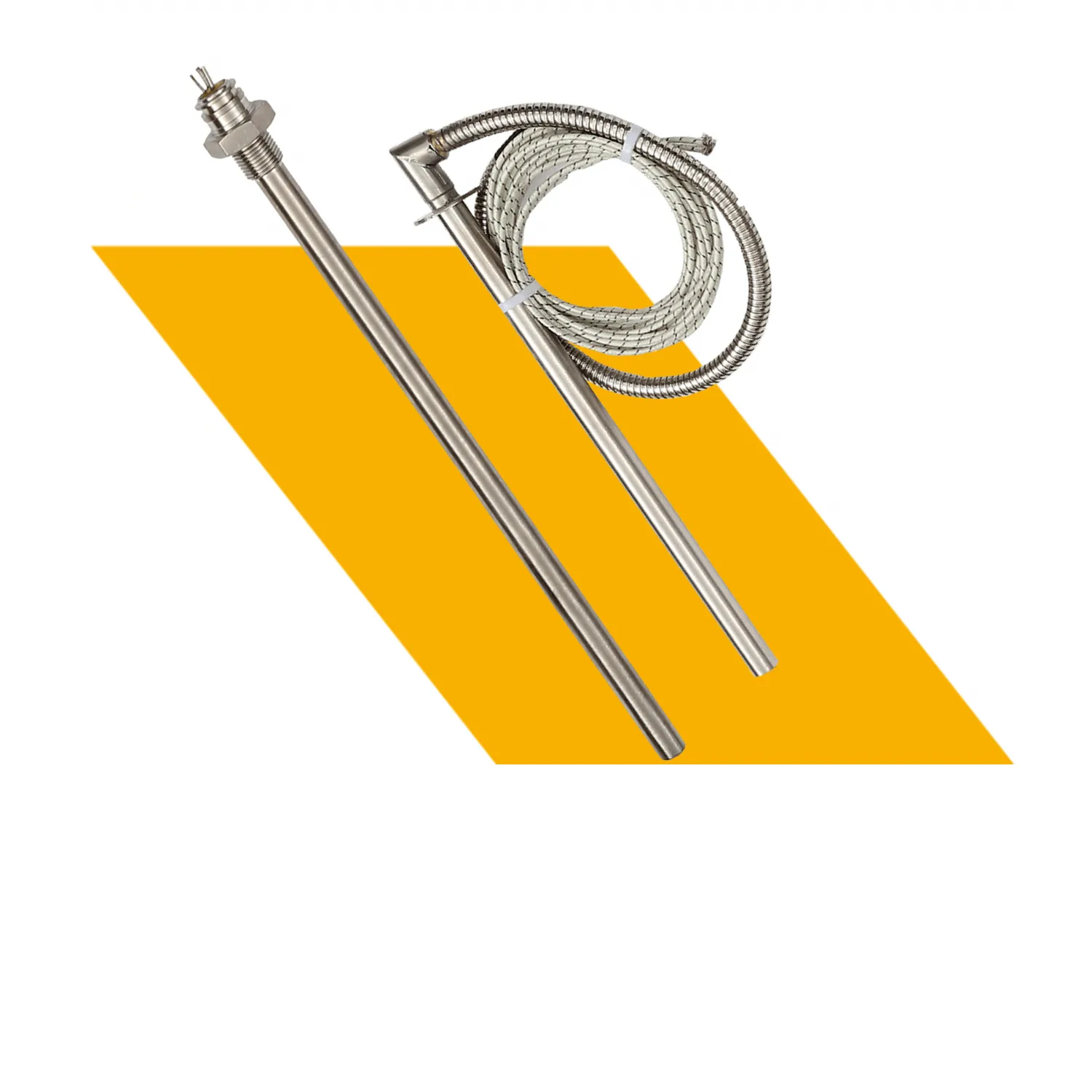

Ordering the wrong heater is one of those mistakes you only notice after the machine is already down. A cartridge heater looks simple, just a metal tube with a heating element inside, but small differences in size, power, and build quality decide whether it lasts two years or two weeks. Here are five things worth checking before you place an order.

1. Size and Fit

The fit inside the hole matters more than most people expect. If the bore is too loose, air gaps form between the tube and the block, heat can’t escape properly, and the element runs hotter than it should. Too tight and you’ll never get it in. Measure the bore carefully, aim for a snug fit with minimal clearance, and confirm the heated length matches the area you actually need to warm.

2. Watt Density and Power

Watt density is how much power is packed into each square inch or centimeter of the sheath. Push it too high and the heating element burns out early, especially in materials that don’t pull heat away quickly. Metal blocks and dies can take more. Liquids, plastics, and air need lower values. Work out the total wattage you need first, then check the watt density that results.

3. Sheath Material

The outer tube has to survive your environment. Stainless steel suits most general jobs, while Incoloy handles higher temperatures and tougher atmospheres. If you’re dealing with moisture, chemicals, or constant cycling, the sheath is the first thing to fail. Pick based on real operating conditions, not the cheapest line on the quote.

4. Voltage, Termination, and Lead Type

It sounds boring, but it causes a lot of returns. Check the supply voltage and phase, then decide how the leads should exit. Straight, side, or angled outlets all exist, and the right one depends on how much space you have behind the machine. For hot or oily areas, look at lead insulation like fiberglass, PTFE, or metal braid. Keeping the connection end cool adds a lot of life.

5. Temperature Control and Sensing

Running a heater without feedback is asking for trouble. Many models come with a built-in thermocouple, which lets the controller react quickly and avoid overshoot. If your process needs tight accuracy, ask for that option up front instead of retrofitting later. A proper controller also protects the unit from sudden spikes.

A Quick Pre-Order Checklist

• Bore diameter and tolerance confirmed

• Heated length and total length noted

• Wattage and watt density worked out

• Sheath material matched to the environment

• Voltage, lead type, and outlet direction chosen

• Sensor and controller plan decided

If you can tick every box, you’ve already avoided most of the usual problems. Also, don’t forget about install care. Never run a cartridge heater in open air, since it needs contact with the material to shed heat.

Final Thoughts

Good buying decisions come down to knowing your application well and asking the right questions early. Take a few extra minutes with these five points and you’ll save yourself downtime later. If you’d like a second opinion on specs before ordering, the team at Tempsens USA can help you choose the right cartridge heater for your setup.
